Instrument Panel to Multi-Function Switch Connector
Instrument Panel to Multi-Function Switch Connector

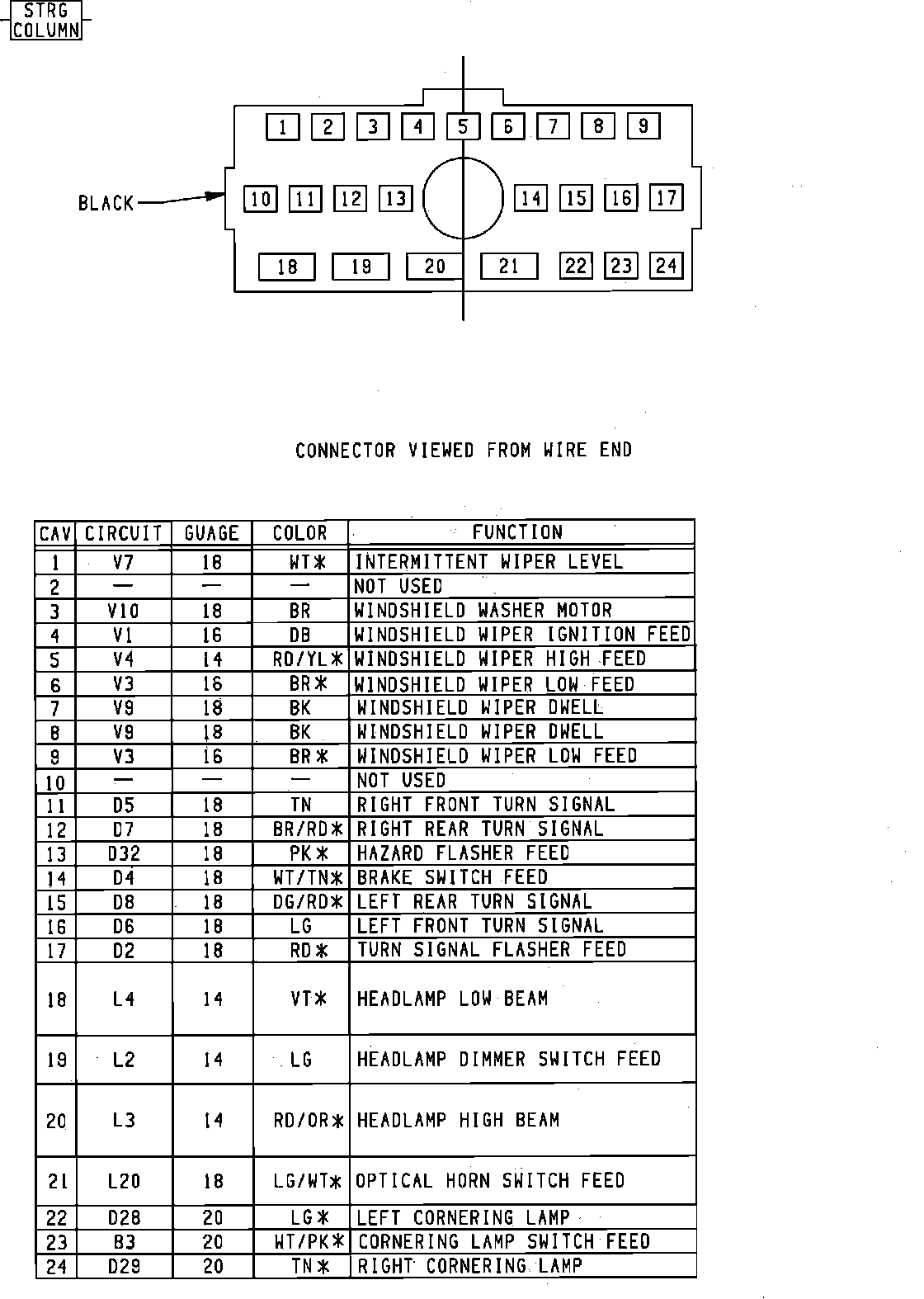

I/P To Multi-Function Switch Connector:
