Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> Vacuum Control System Diagnosis

Vacuum Control System Diagnosis

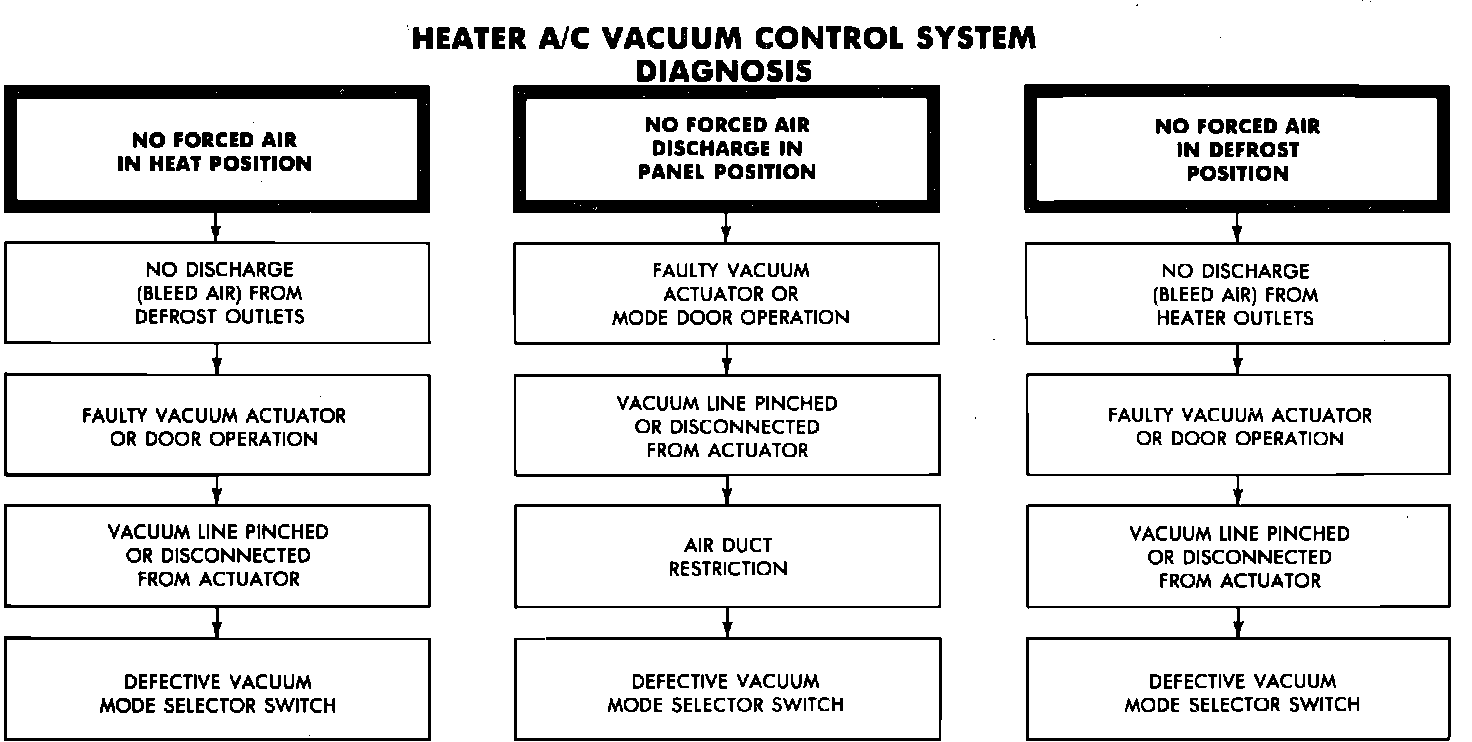

Heater & A/C Vacuum Control System Diagnosis:
