W/ Variable Displacement Compressor

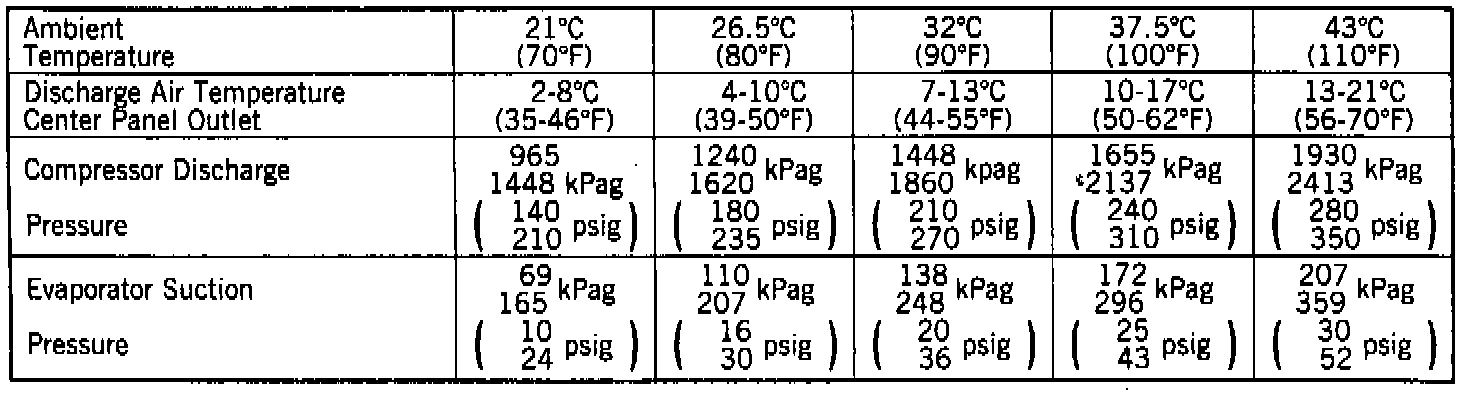

A/C Performance Chart:

1. Verify that refrigerant system is at full charge.
2. Check A/C performance against Performance chart.
3. If performance is not acceptable, perform H-valve tests.

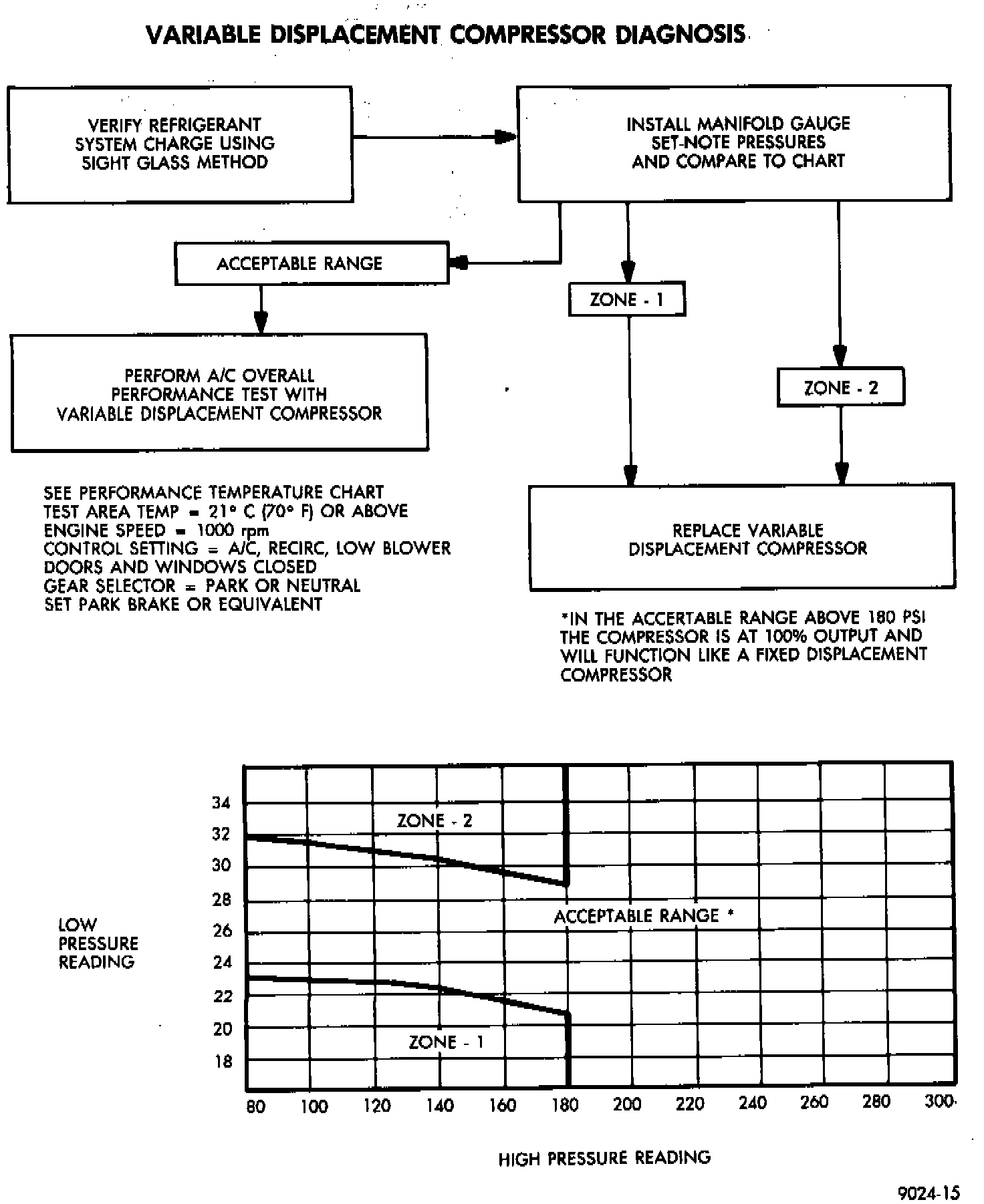

VDC Performance Chart:

4. If H-valve test is OK, proceed with variable displacement compressor tests.
