Condenser HVAC: Service and Repair

REMOVAL AND INSTALLATION

CAUTION: The refrigerant system must be completely discharged before proceeding with this operation.

1. Remove radiator assembly.
2. Remove refrigerant line attaching nut and separate lines from condenser sealing plate.
3. Using plastic sheeting and tape cover the open end of the refrigerant lines and condenser to minimize refrigeration system contamination.

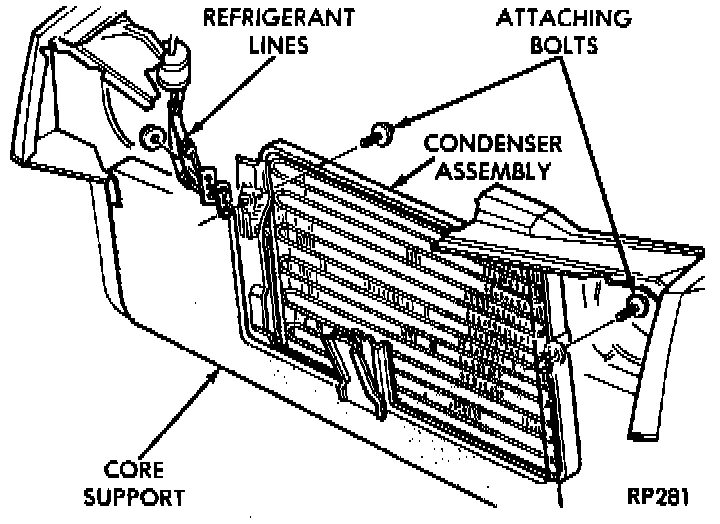

A/C Condenser (typical):

4. Remove two bolts securing the condenser assembly to the radiator core support and lift the condenser assembly from vehicle.

To install, replace all 0-rings and gaskets, coat all sealing surfaces with wax free refrigerant oil and reverse the preceding operation. When installing NEW condenser add 1.0 oz. oil to the condenser before installation.
