Oil Pressure Gauge: Testing and Inspection

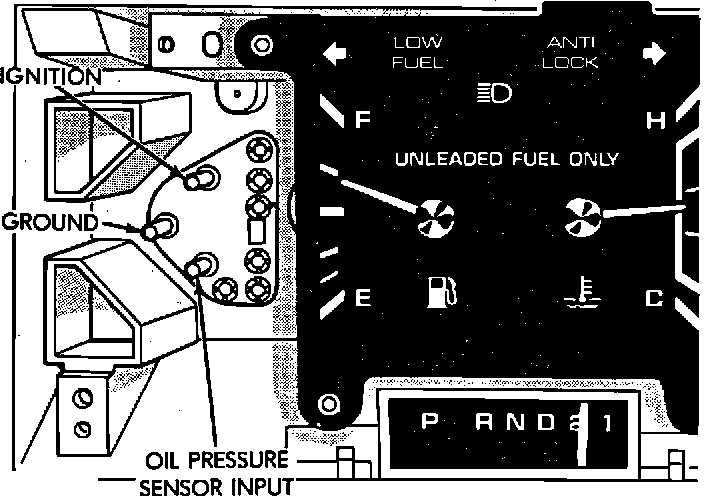

Oil Pressure Gauge Pins:

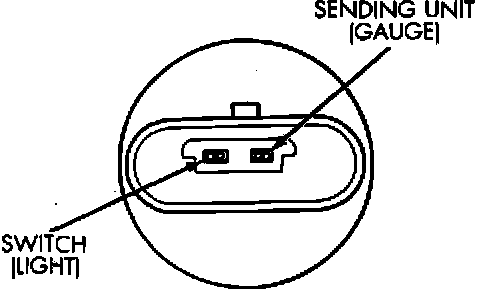

Combination Oil Pressure Sending Unit:

1. Remove oil pressure gauge assembly from the cluster.
2. Check for continuity in wire between oil pressure sending unit and gauge (sensor input pin).
3. With ignition switch in On position, check for battery voltage across B+ pin and ground pin.
