Harmonic Balancer - Crankshaft Pulley: Service and Repair

CRANKSHAFT PULLEY REMOVAL
1. Disconnect battery.
2. Raise vehicle on hoist.
3. Remove right wheel ana inner splash shield.
4. Remove drive belt. Refer to Engine/Drive Belts, Mounts, Brackets and Accessories/Drive Belt/Service and Repair for procedure.

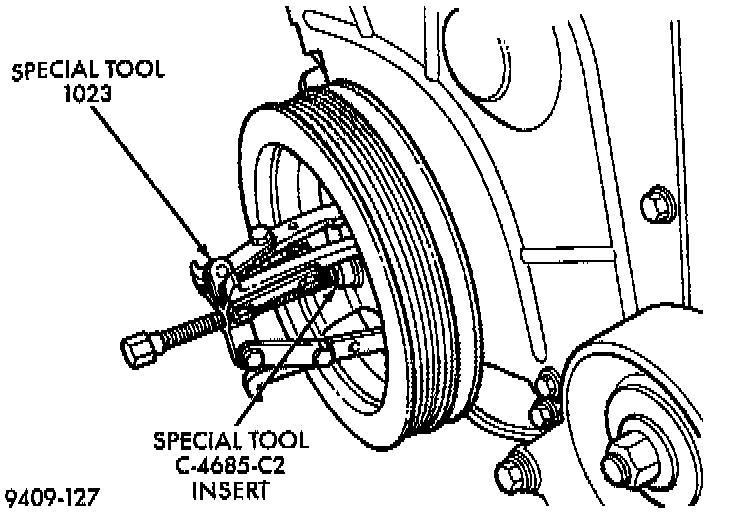

Fig. 41 Removing Crankshaft Pulley:

5. Remove crankshaft pulley Fig. 41.

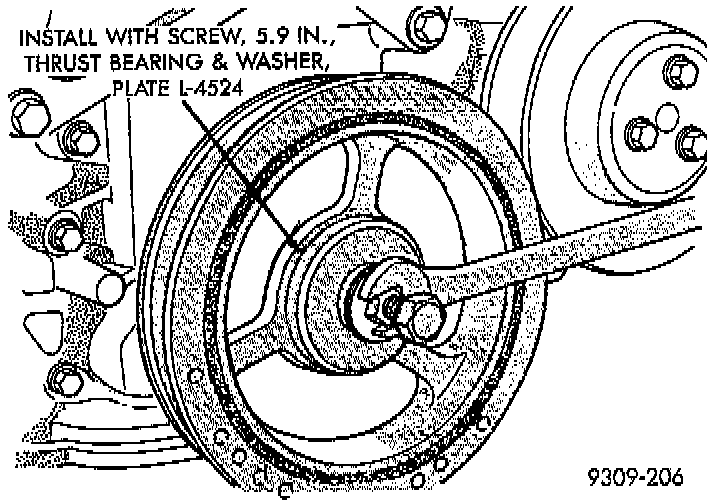

Fig. 42 Installing Crankshaft Pulley:

CRANKSHAFT PULLEY INSTALLATION
1. Install crankshaft pulley Fig. 42.
2. Install drive belt. Refer to Engine/Drive Belts, Mounts, Brackets and Accessories/Drive Belt/Service and Repair for installation procedure.
B. Install inner splash shield and wheel.
4. Connect battery.
