Engine: Application and ID

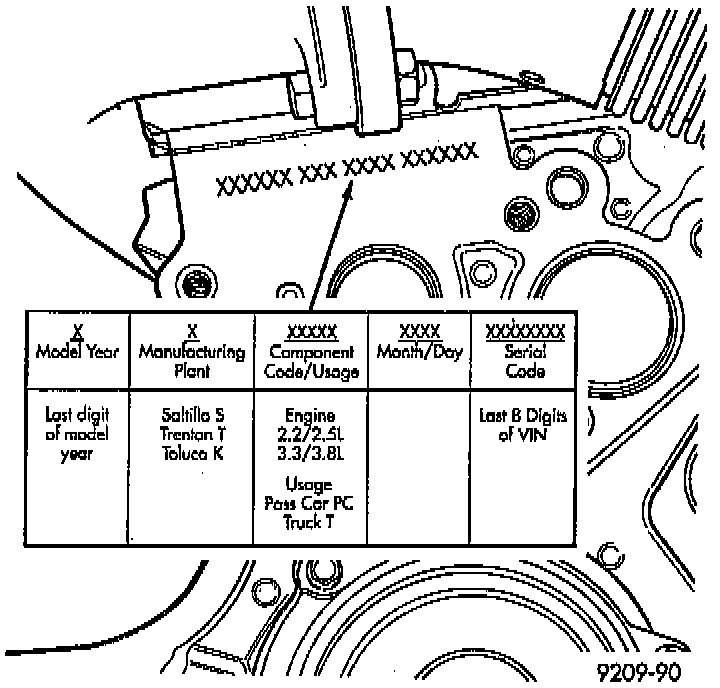

Fig. 2 Engine Identification:
ENGINE IDENTIFICATION CODE
The engine identification number is located on the rear of the
cylinder block
just below the
cylinder head
.
