Engine Compartment Splices

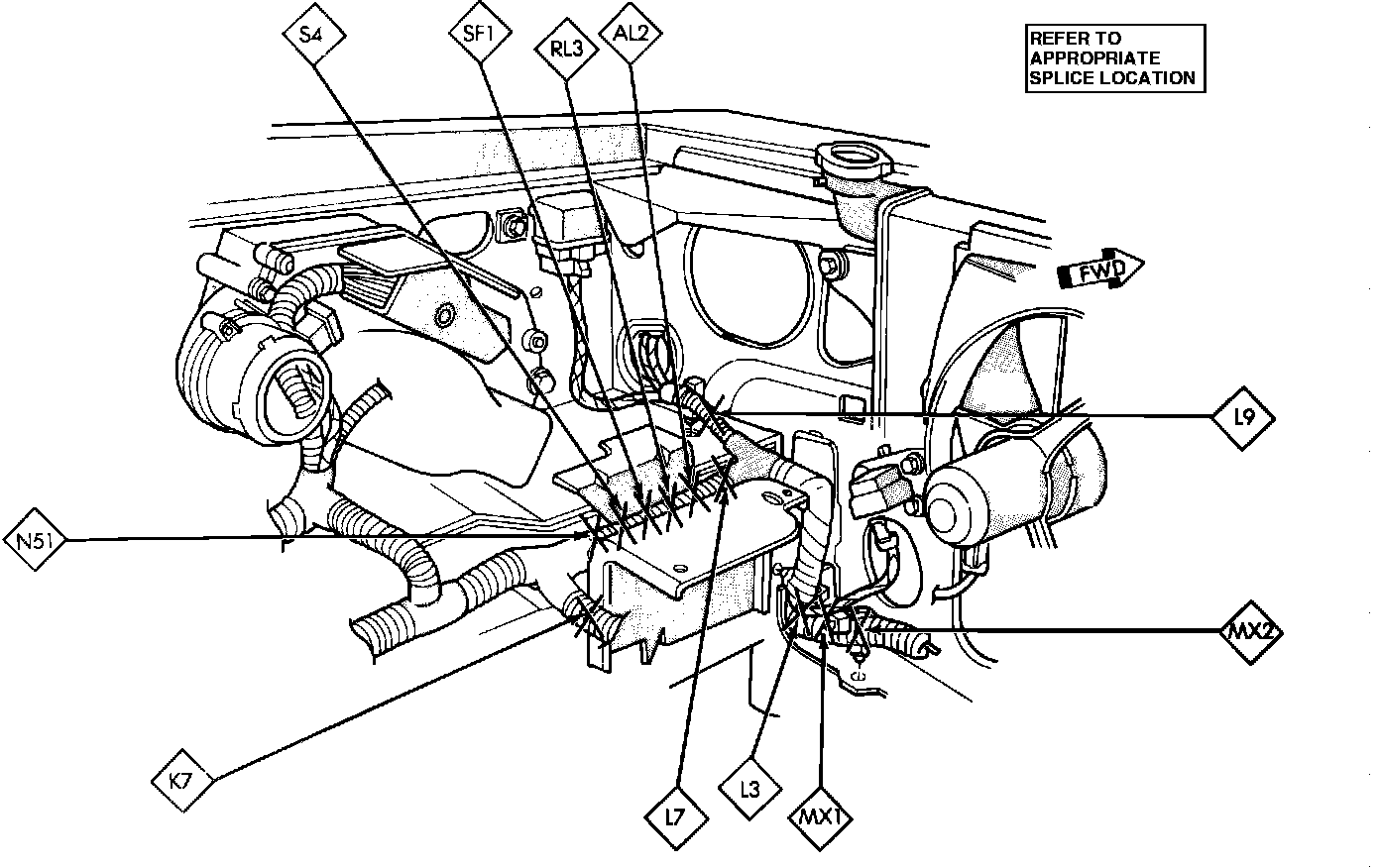

Engine Compartment - Splice:

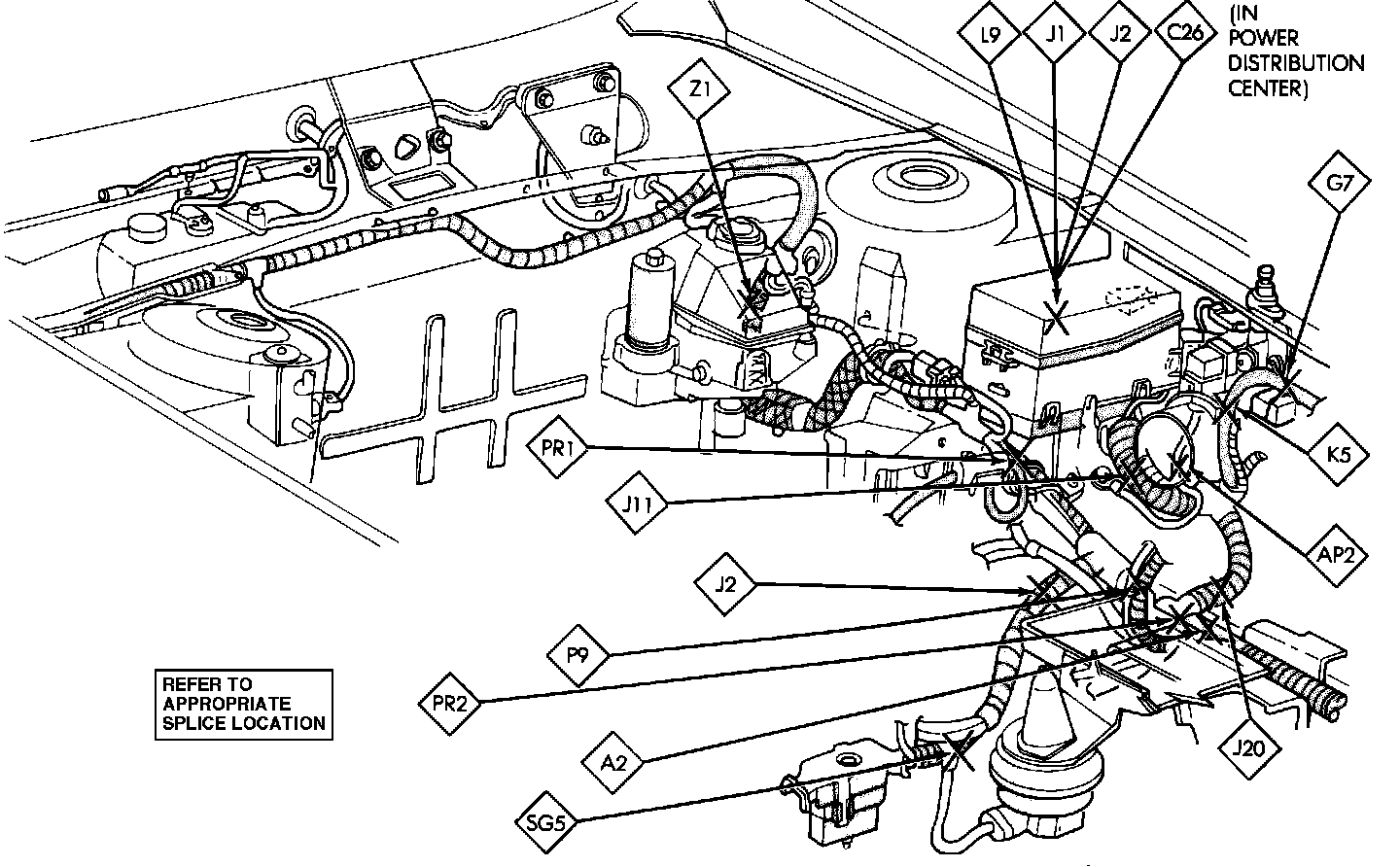

Engine Compartment - Splice:

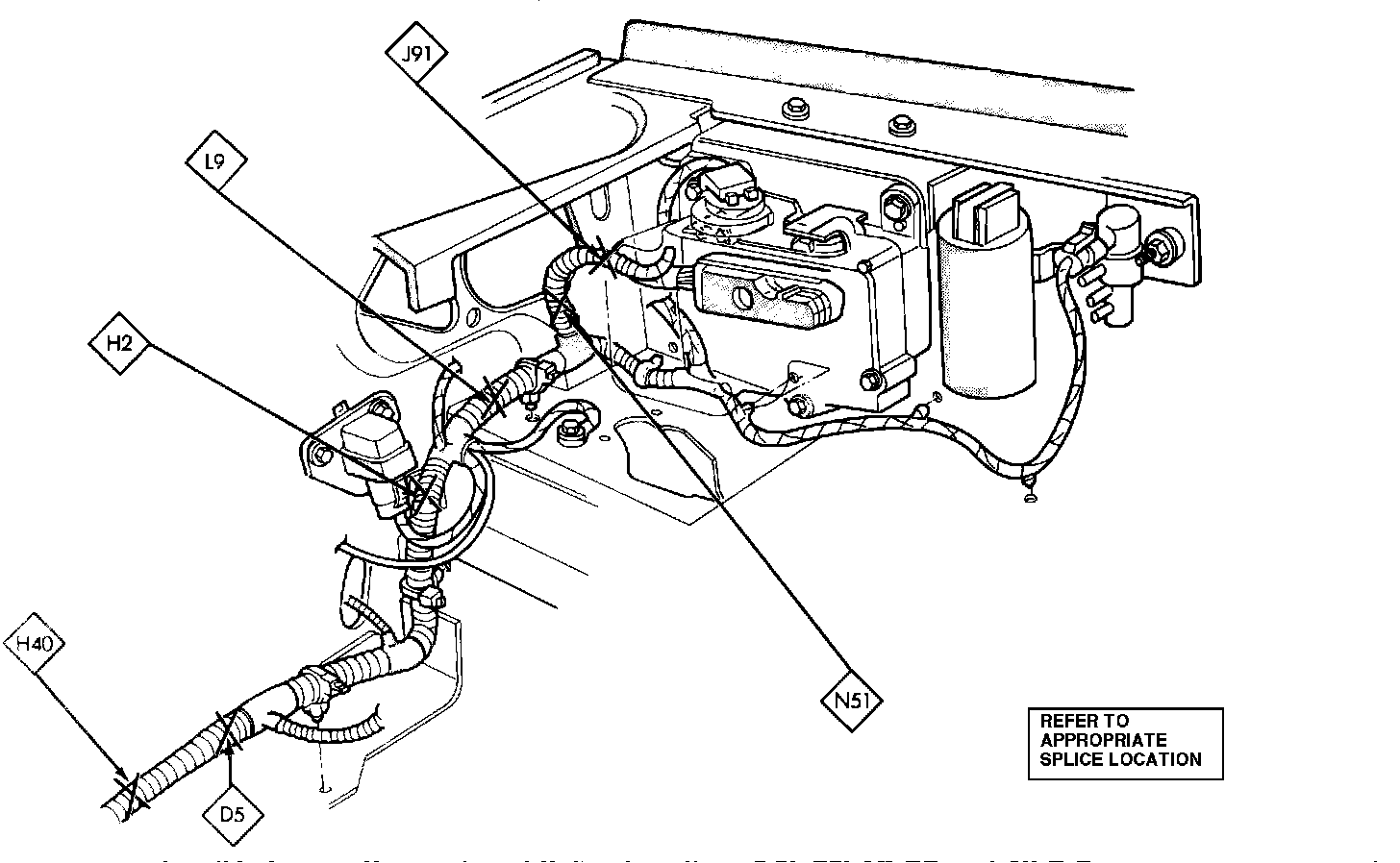

Engine Compartment - Splice:
