Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Air Suspension System >> With Bosch Antilock Brakes >> Part 1 of 4

Part 1 of 4

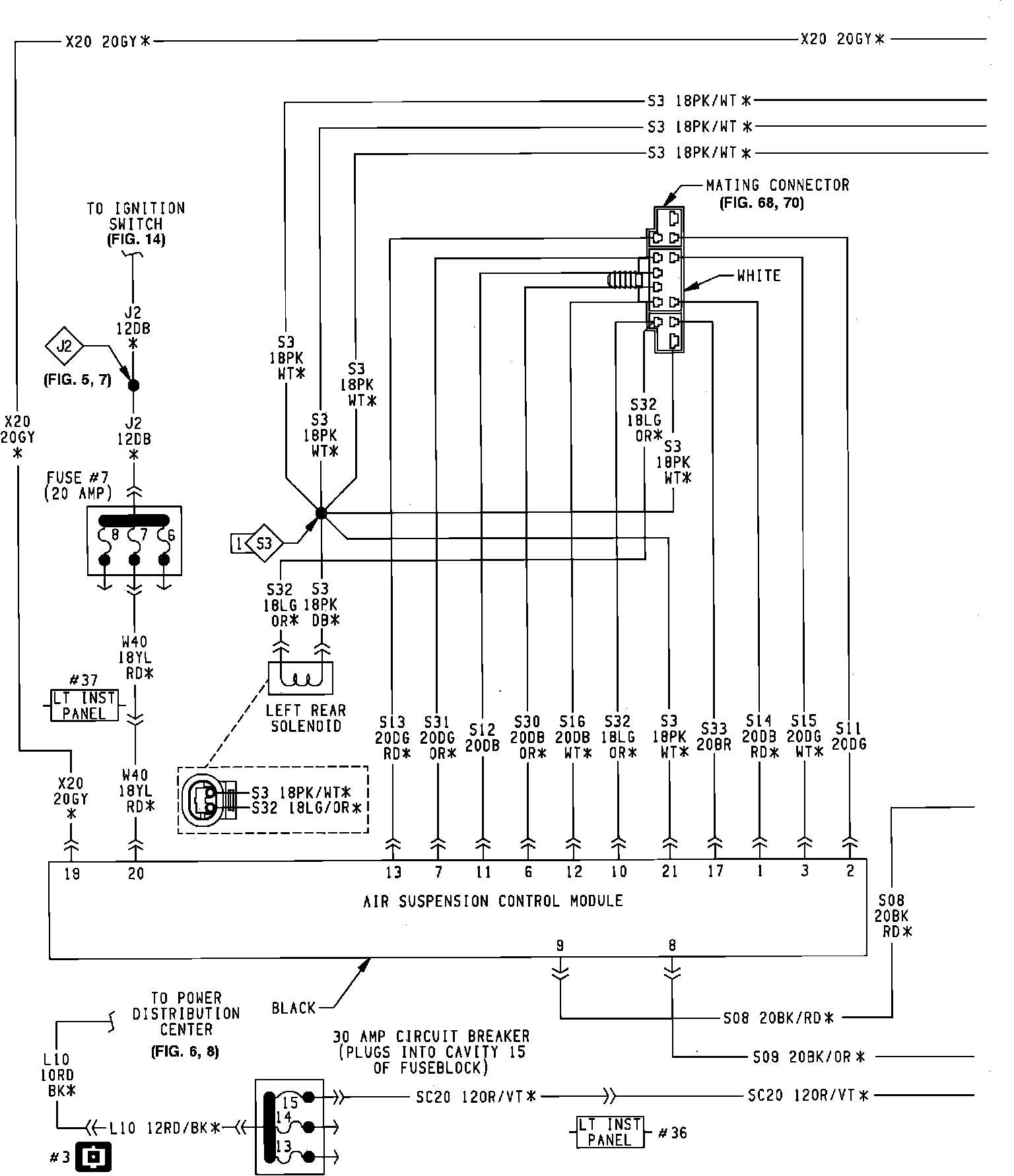

Air Suspension System - Bosch Anti-Lock Brakes:
