Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Fuse Panel Details >> Part 1 of 2

Part 1 of 2

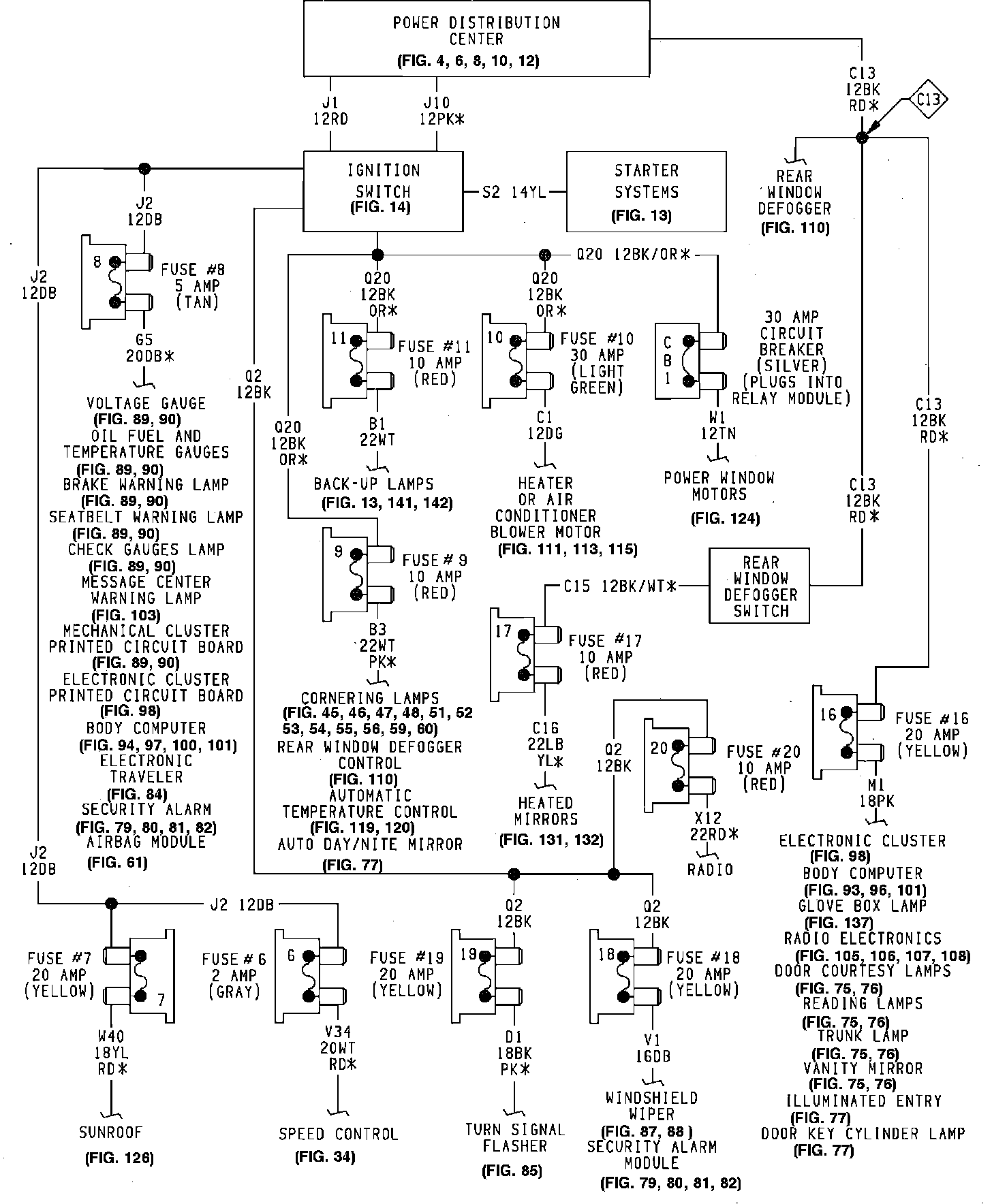

Fuse Application Chart:

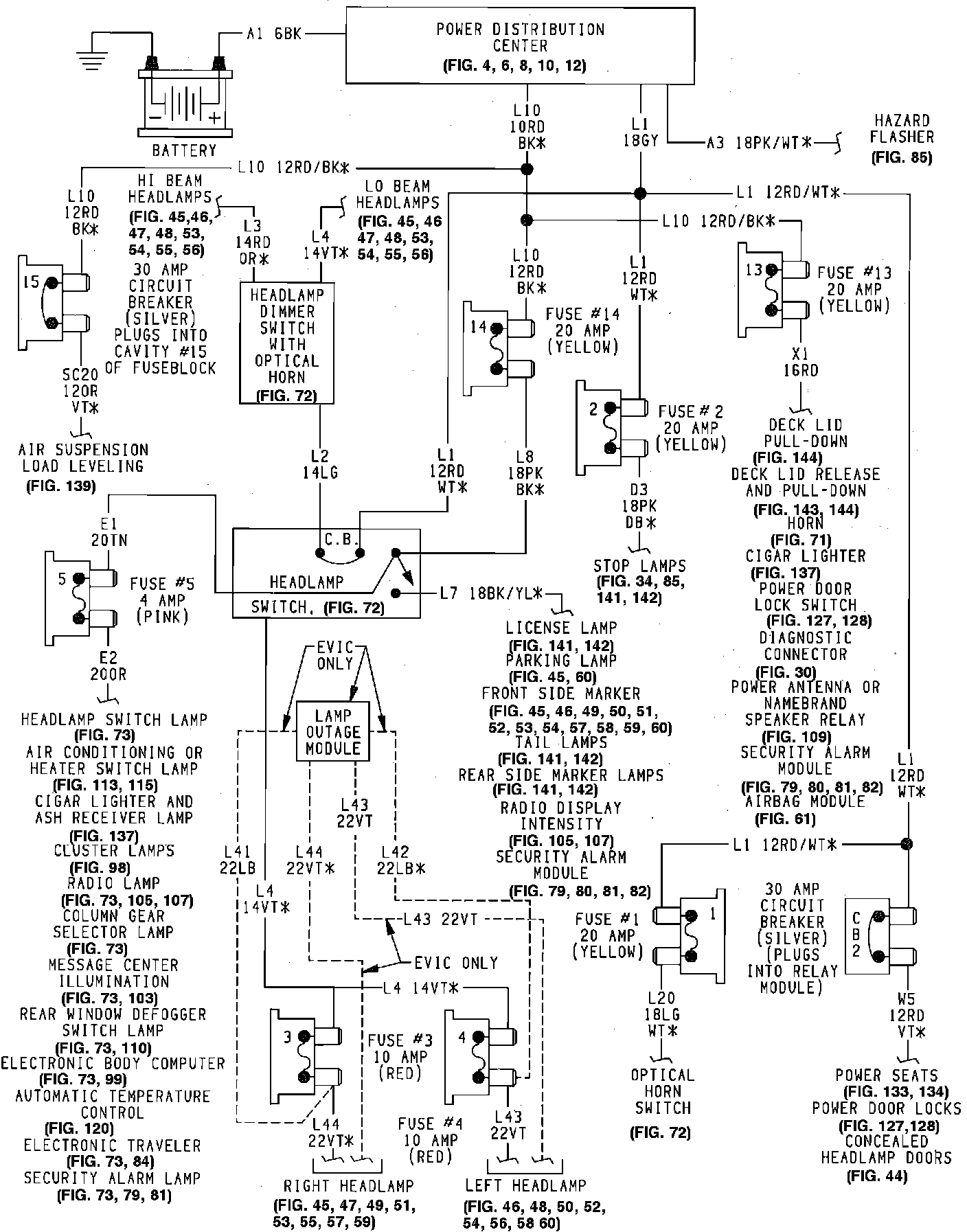

Fuse Application Chart:
