Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Part 4

Part 4

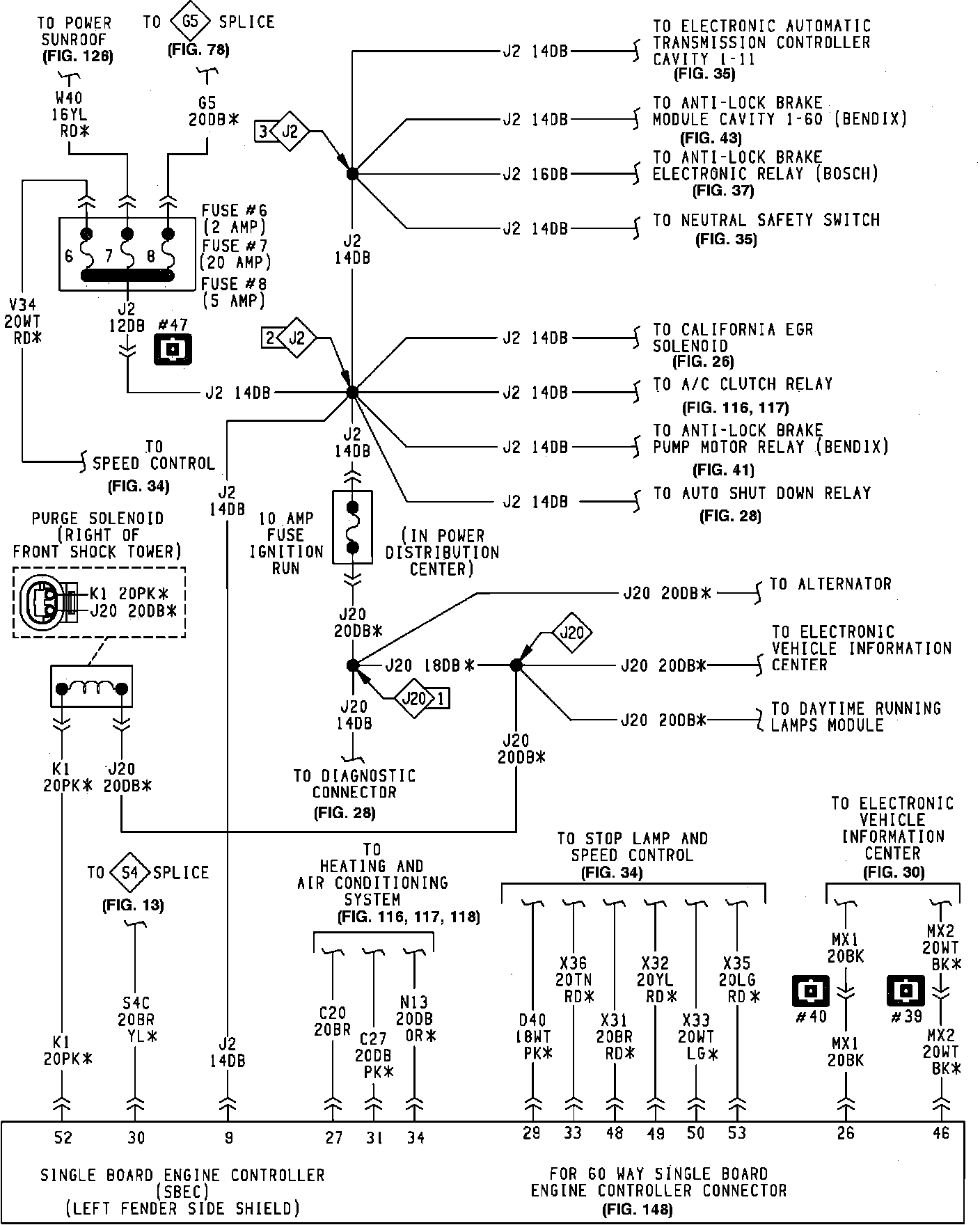

Electronic Fuel Injection & Ignition System -- 3.3L Engine:
