Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Wiring Diagrams >> With Mechanical Instrument Cluster >> Without Visual Message Center >> Part 2 of 3

Part 2 of 3

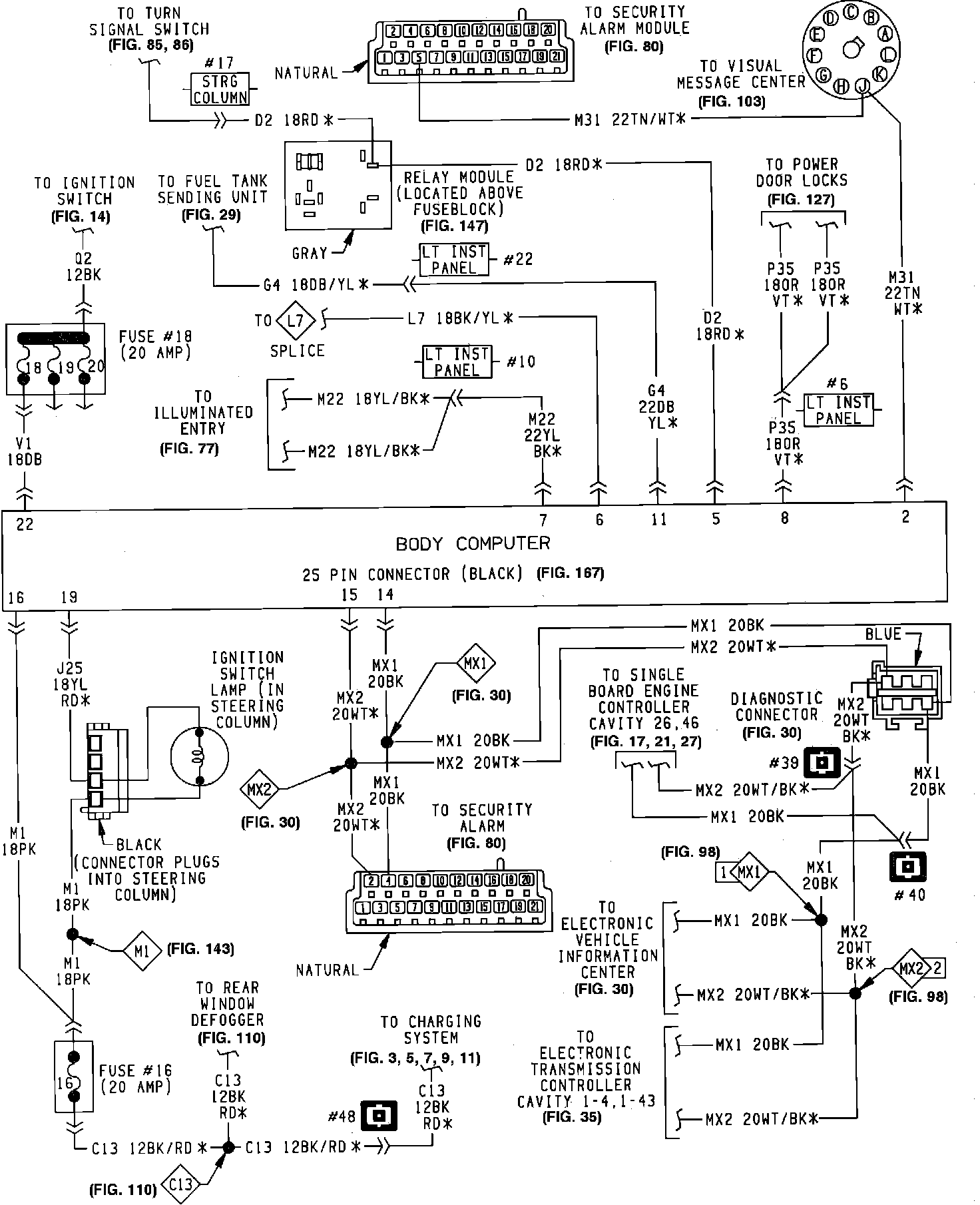

BCM (Mechanical Cluster W/O Visual Message Center) Part 2 Of 3:
