Part 3 of 3

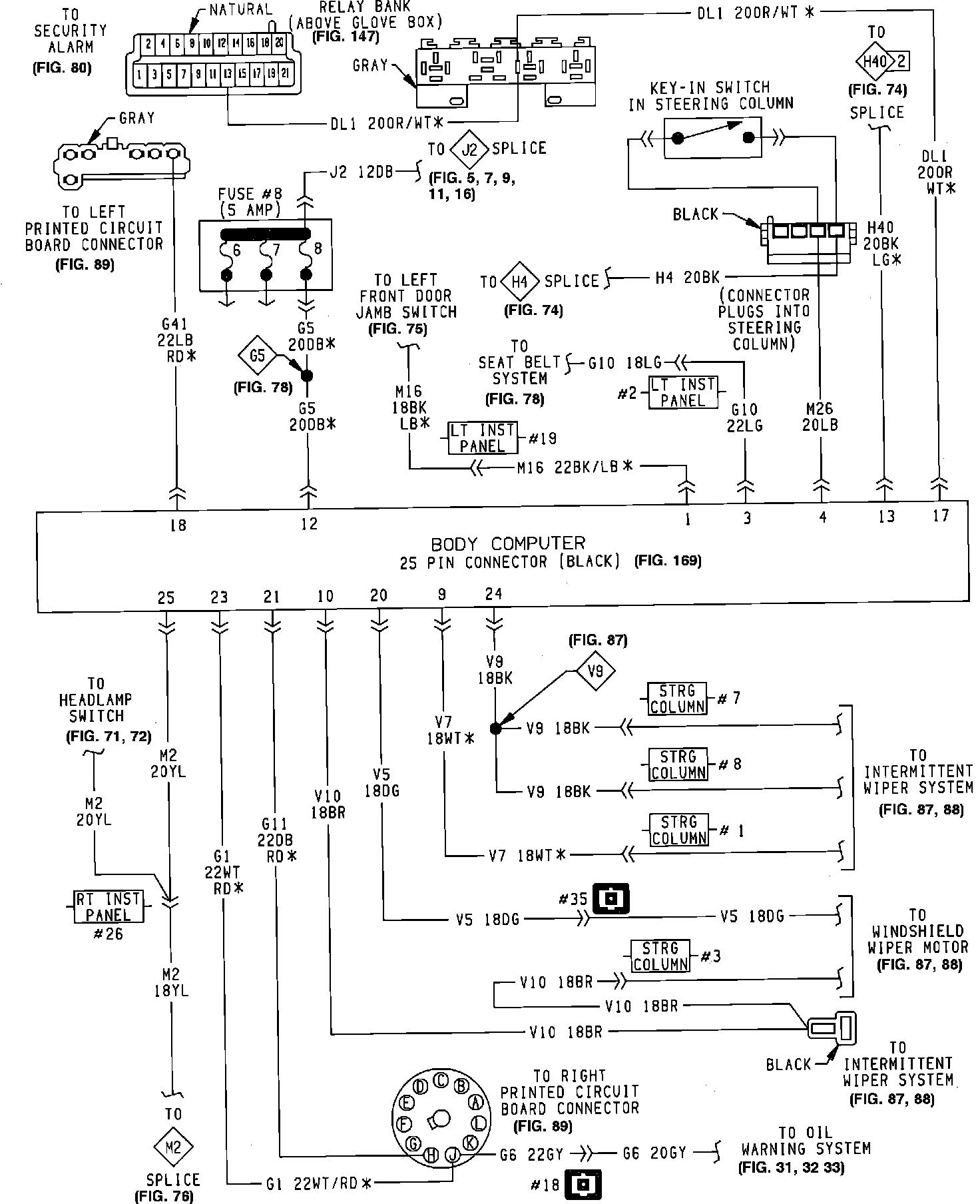

BCM (Mechanical Cluster W/Visual Message Center) Part 3 Of 4:

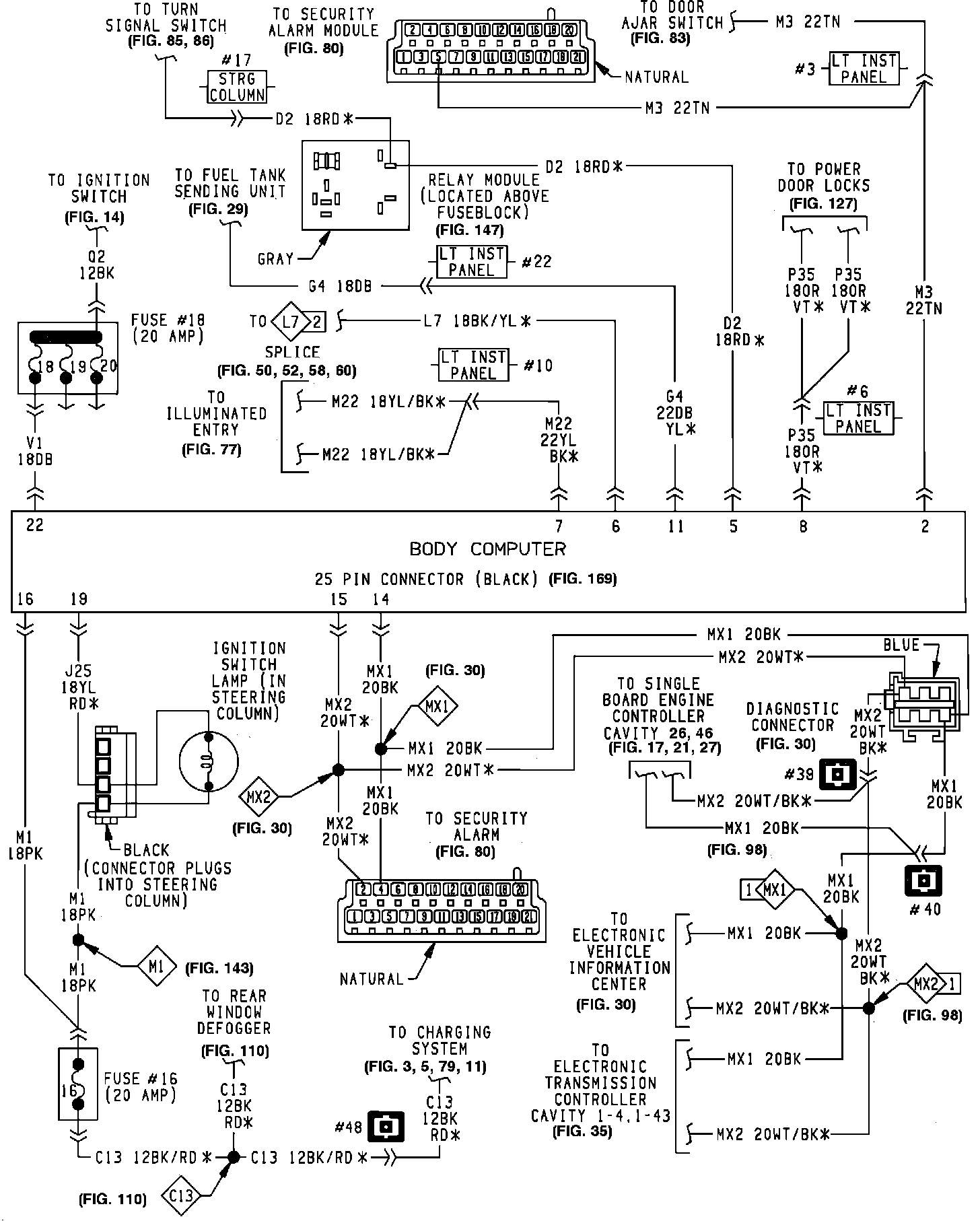

BCM (Mechanical Cluster W/Visual Message Center) Part 4 Of 4:
