Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Wiring Diagrams >> With Electronic Instrument Cluster >> Part 2 of 4

Part 2 of 4

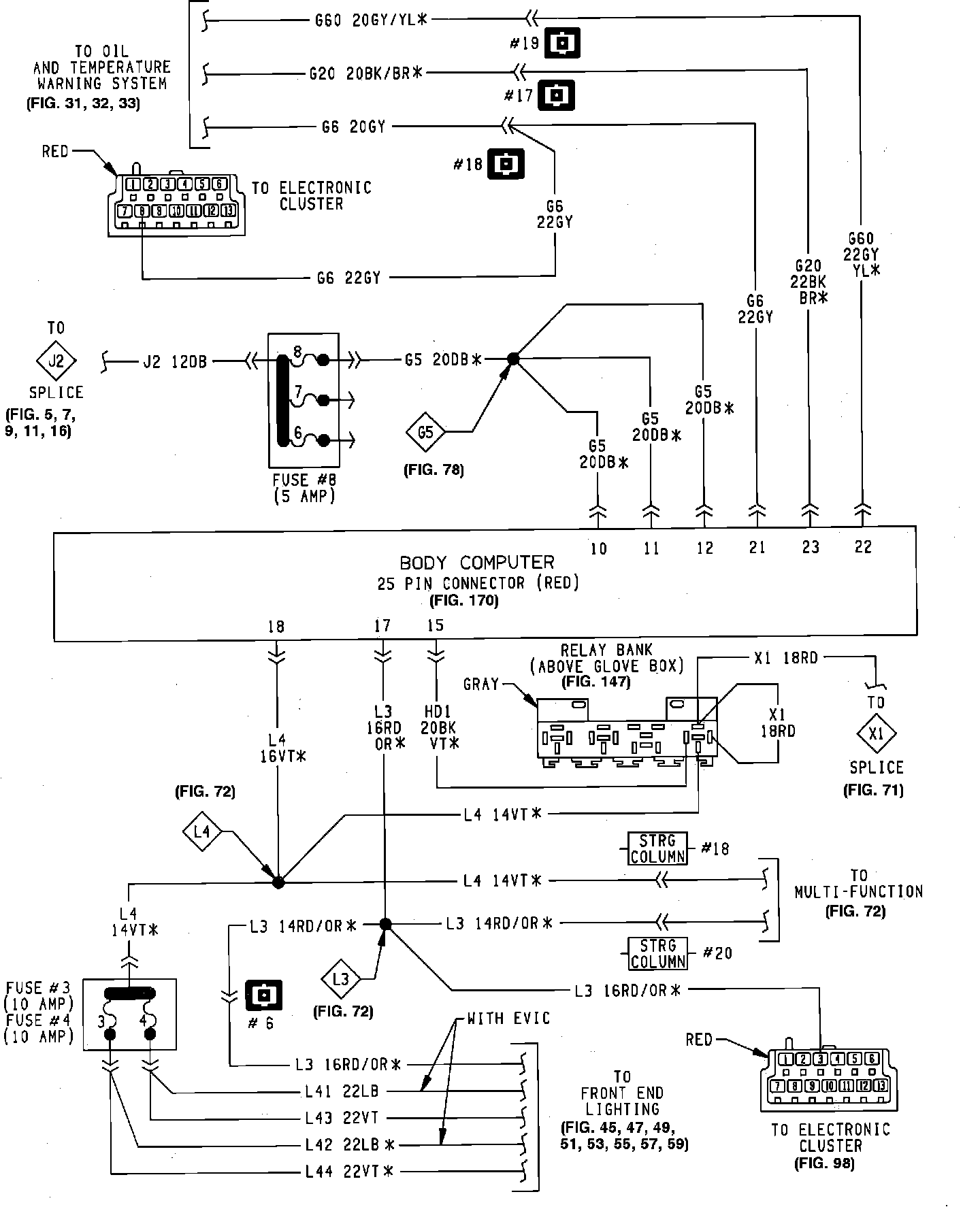

BCM (Electronic Cluster) Part 2 Of 4:
