Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Front End Lighting >> With Concealed Headlamps

With Concealed Headlamps

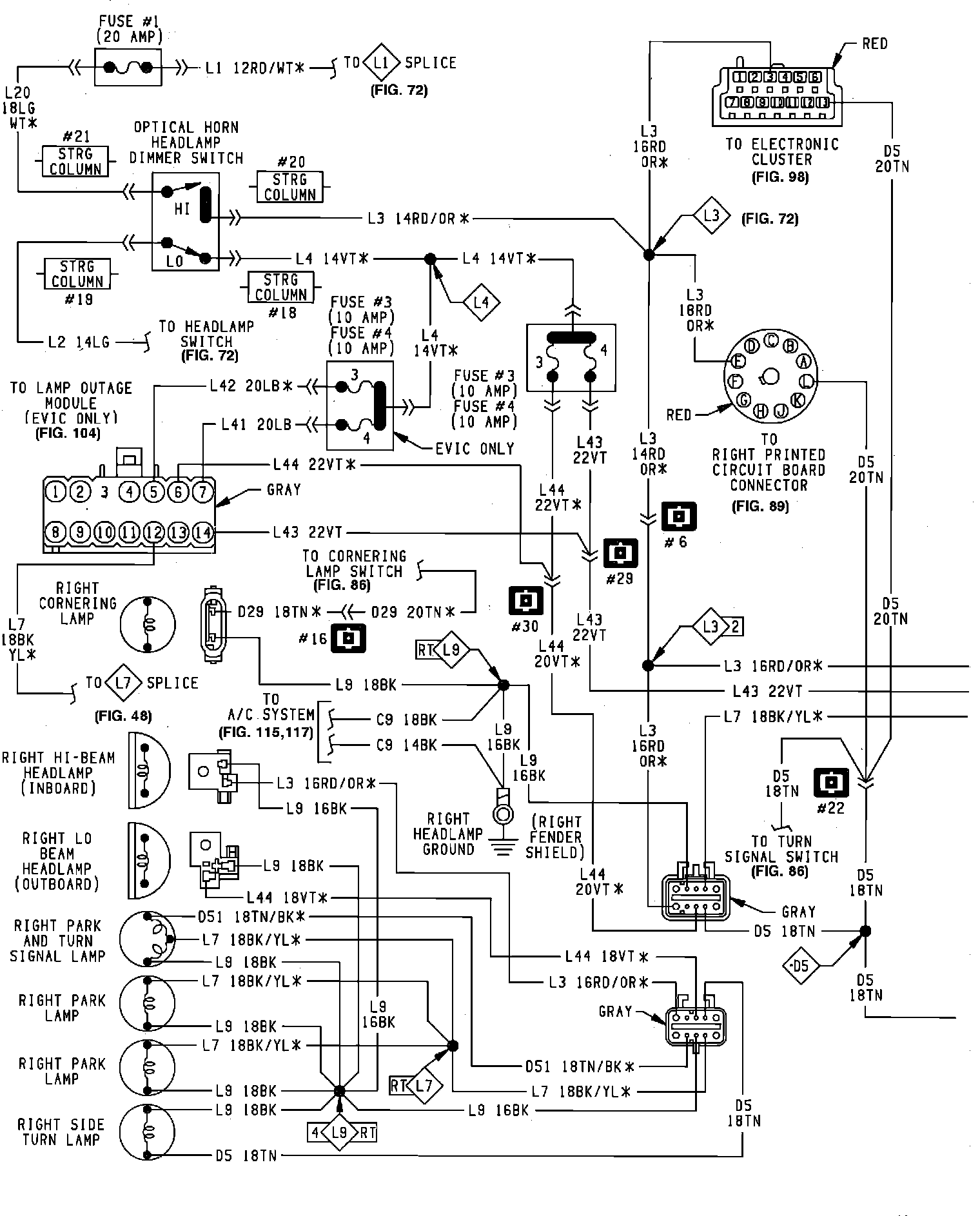

Front End Lighting (Concealed Headlamps):

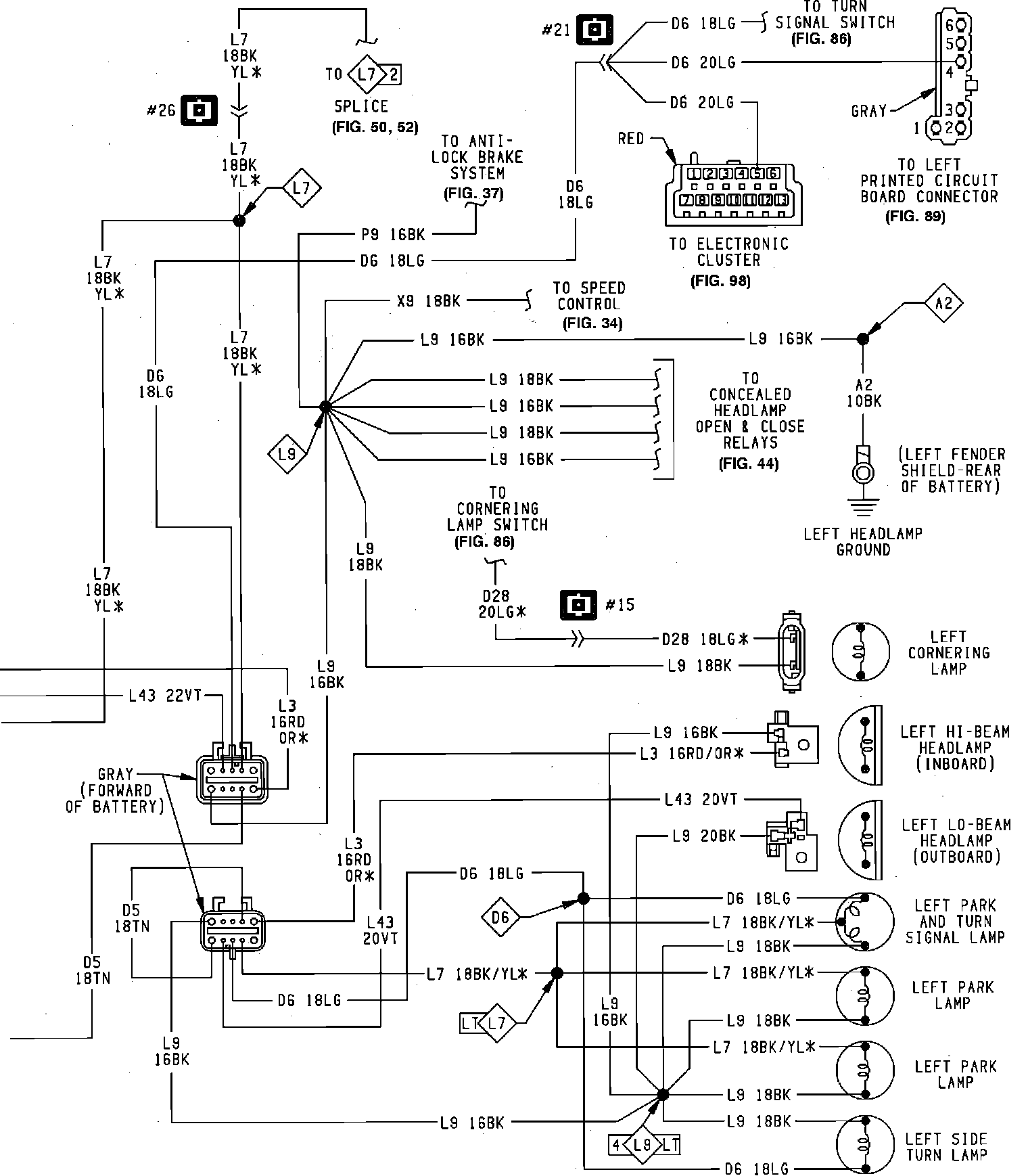

Front End Lighting (Concealed Headlamps):
