Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Switch >> With Controlled Interior Lighting

With Controlled Interior Lighting

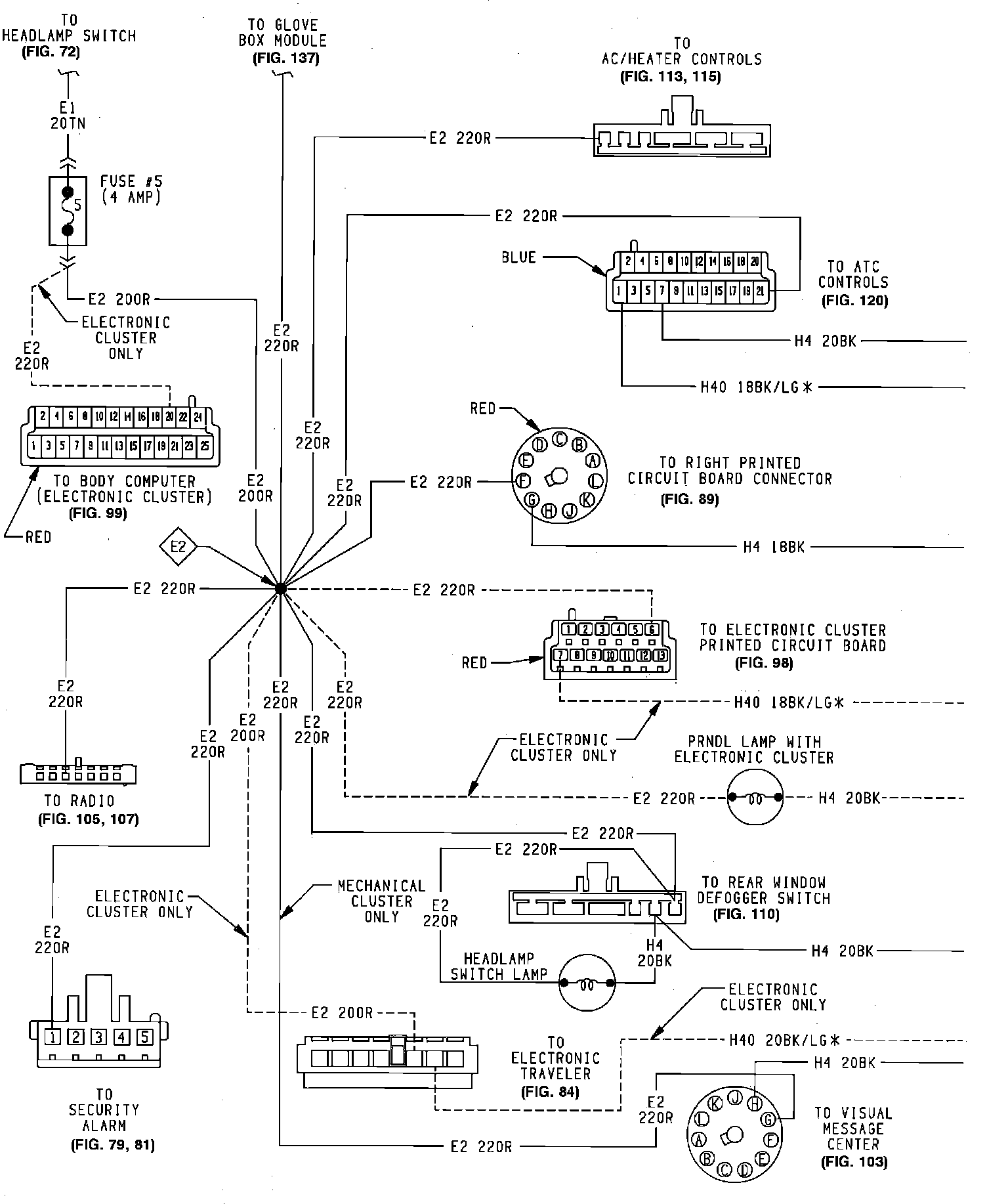

Headlamp Switch Controlled Interior Lighting:

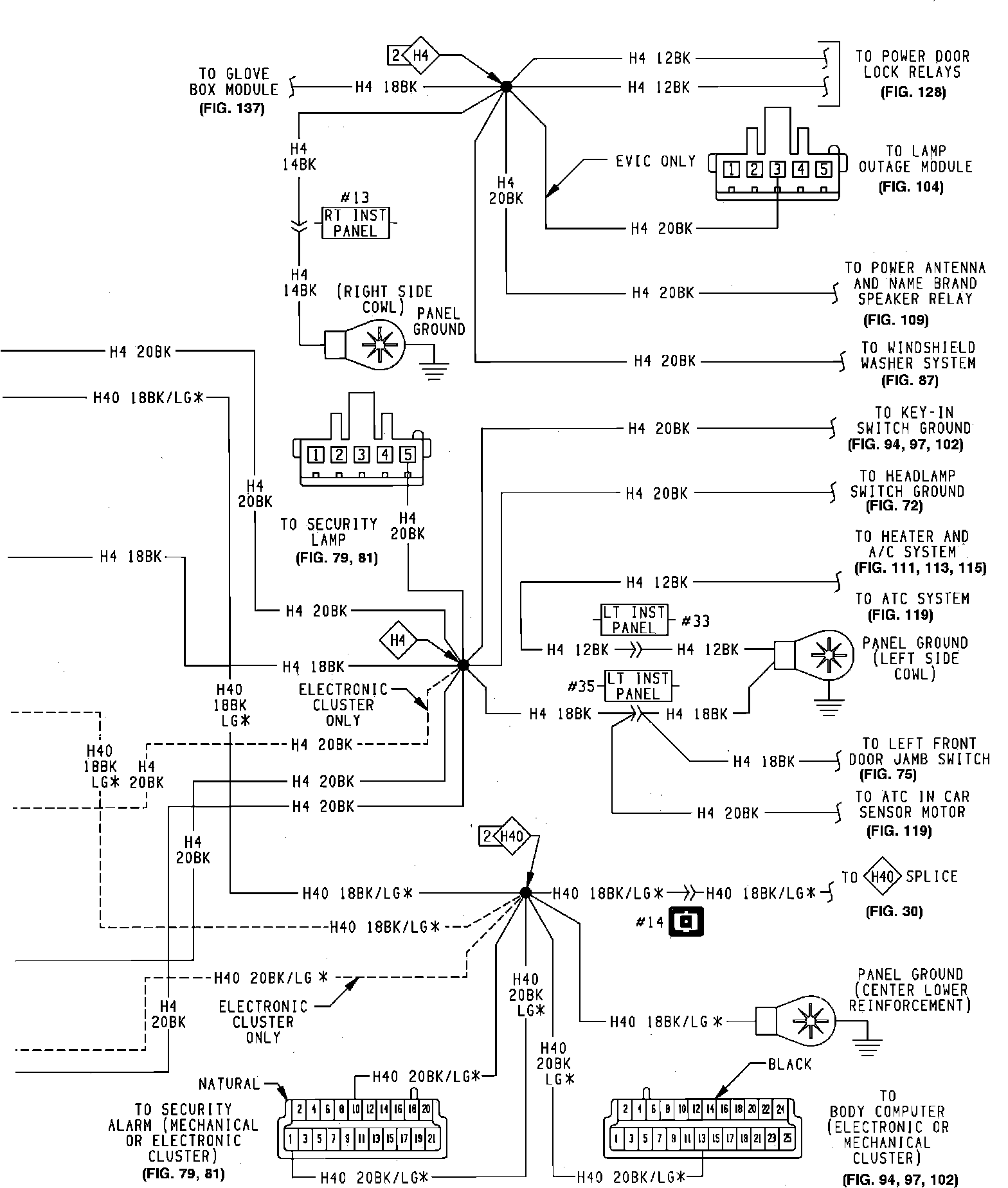

Instrument Panel Ground System:
