Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Warning Systems >> Temperature Warning

Temperature Warning

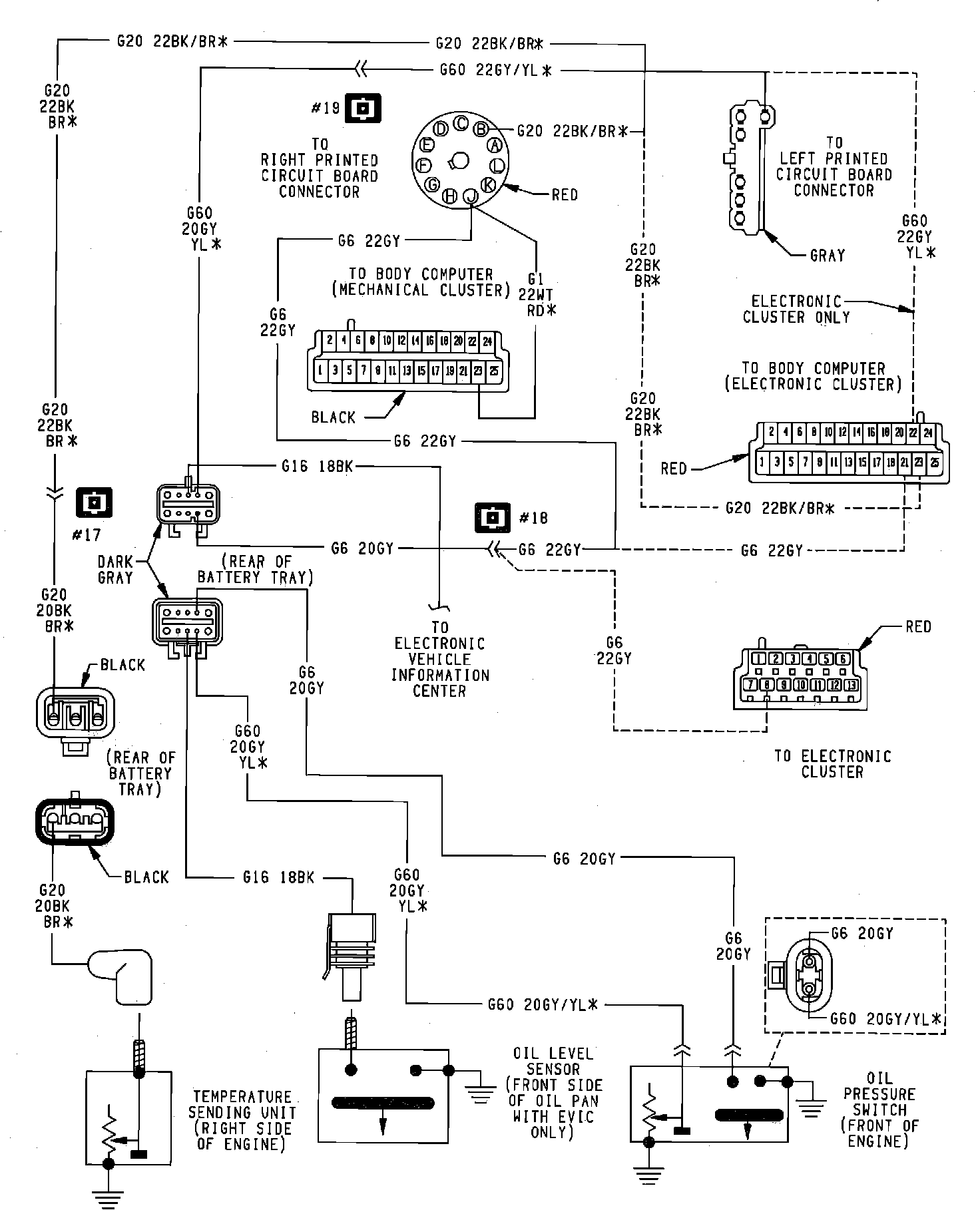

Oil Pressure & Temperature Warning -- 3.3L Engine:
