Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 21 Thru 40 >> 31

21 Thru 40: 31

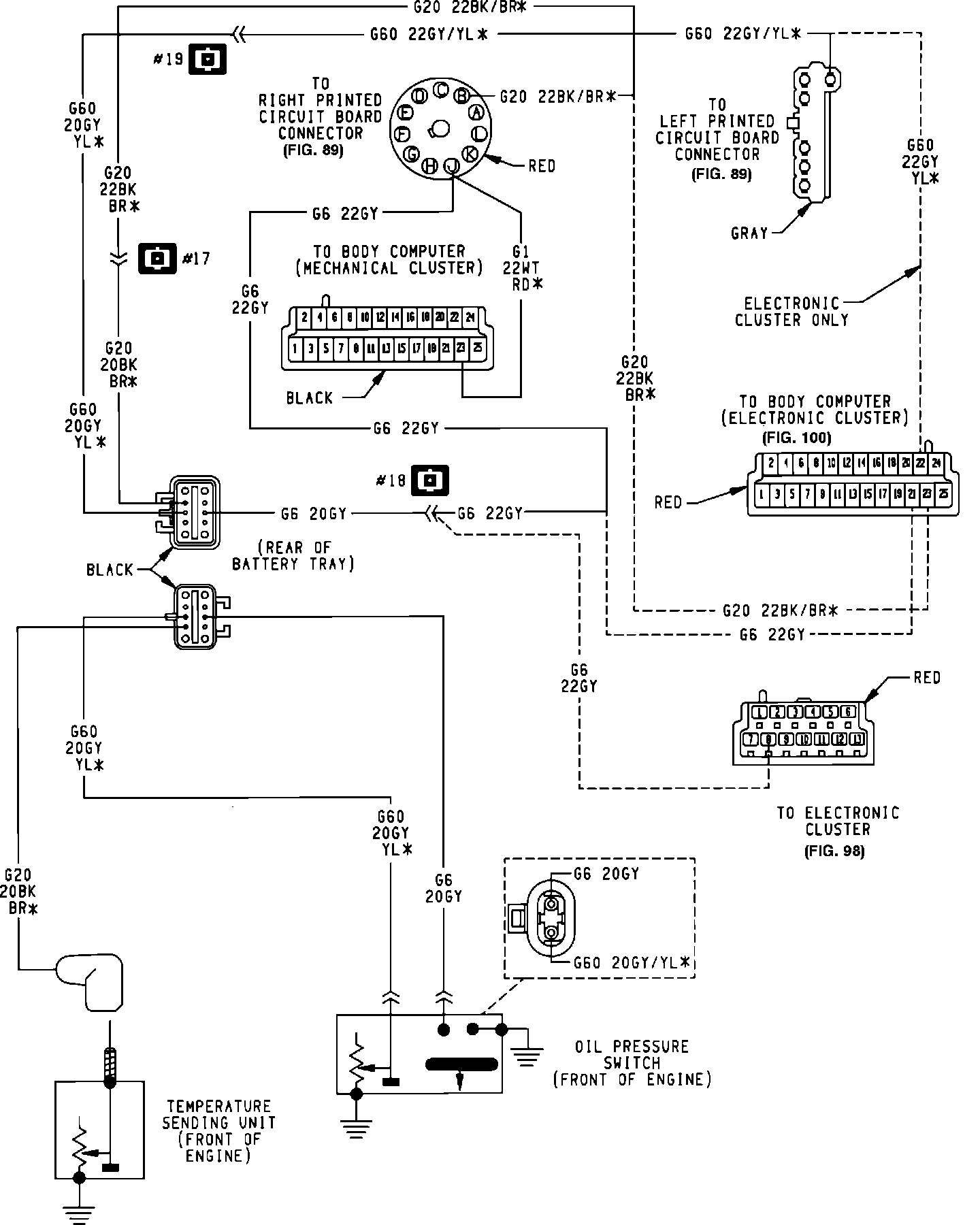

Oil Pressure & Temperature Warning -- 2.5L Engine:
