Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 141 Thru 160 >> 150

141 Thru 160: 150

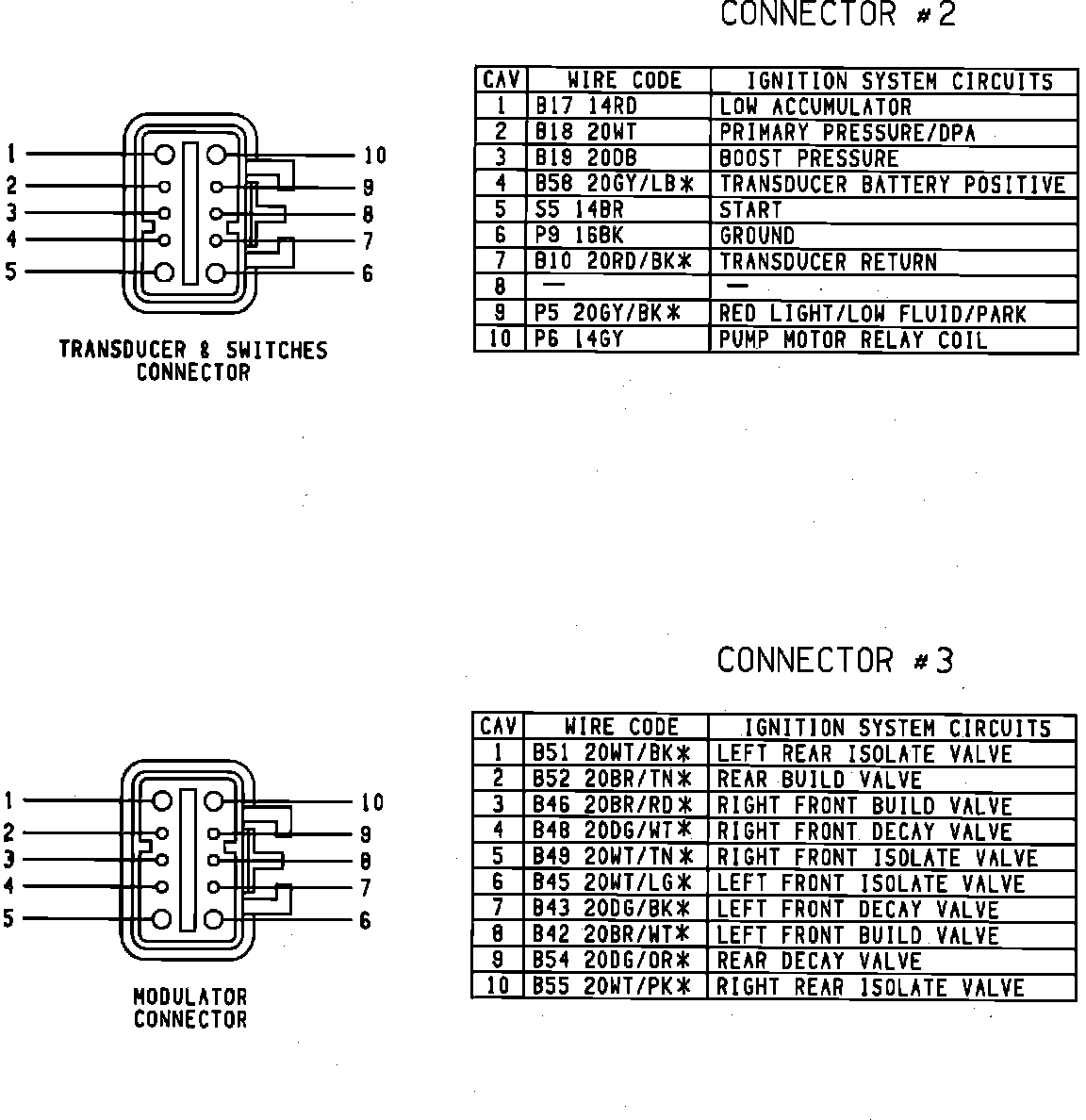

Anti-Lock Brake Connector - Bendix:
