Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 121 Thru 140 >> 121

121 Thru 140: 121

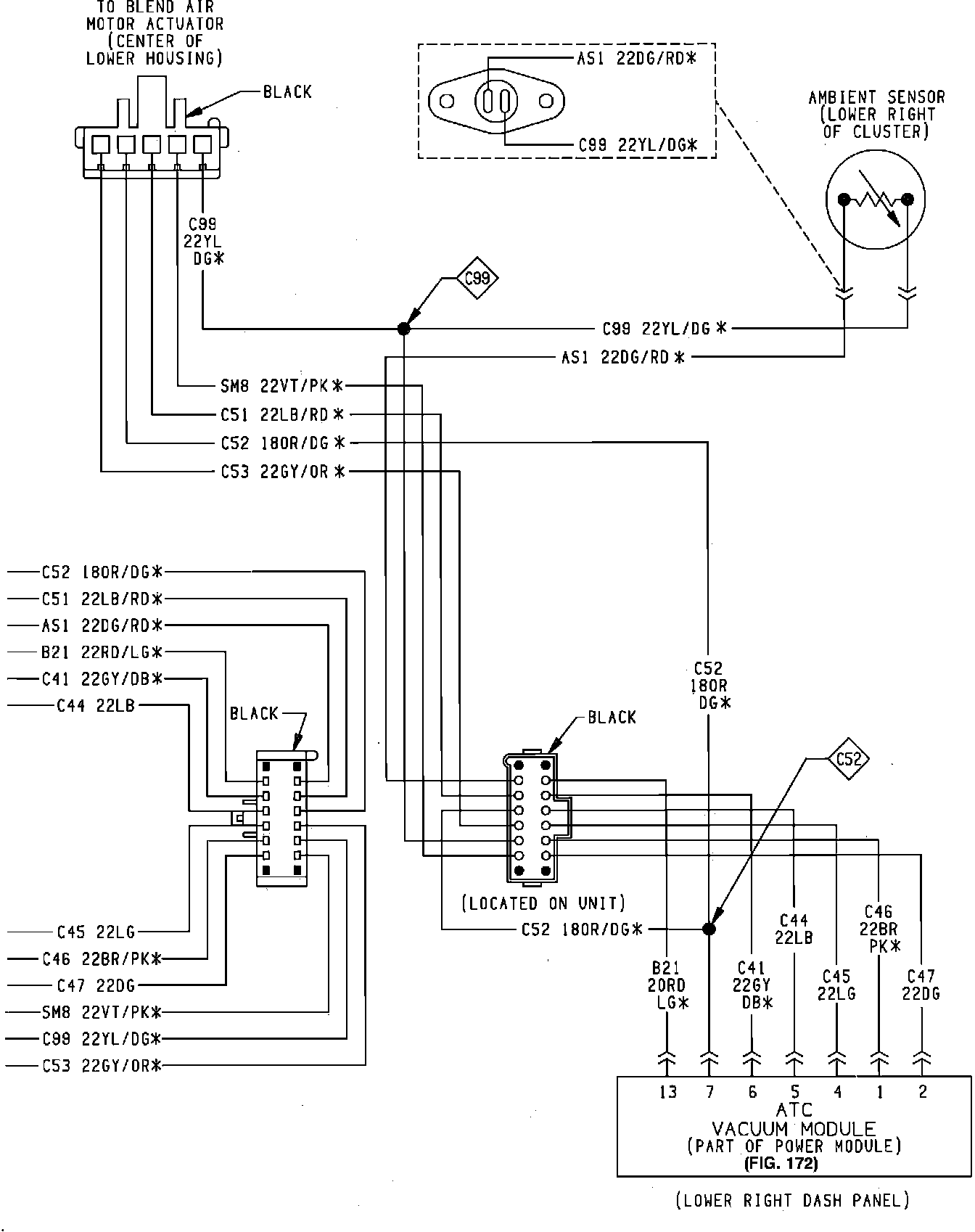

Automatic Temperature Control Wiring Circuit Part 3 Of 4:
