Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 101 Thru 120 >> 115

101 Thru 120: 115

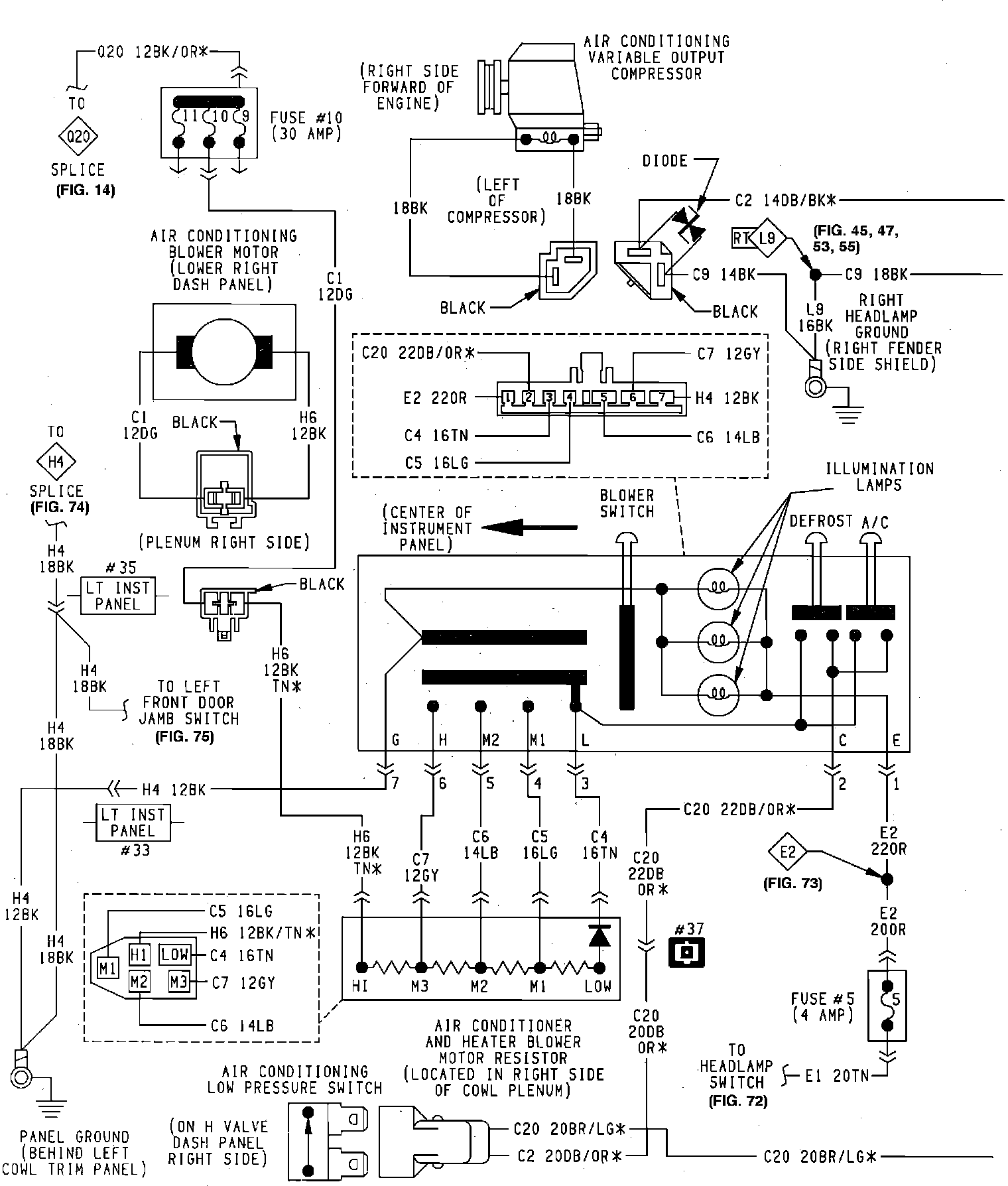

With A/C, 3.0L & 3.3L, Part 1 Of 2:
