Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 101 Thru 120 >> 114

101 Thru 120: 114

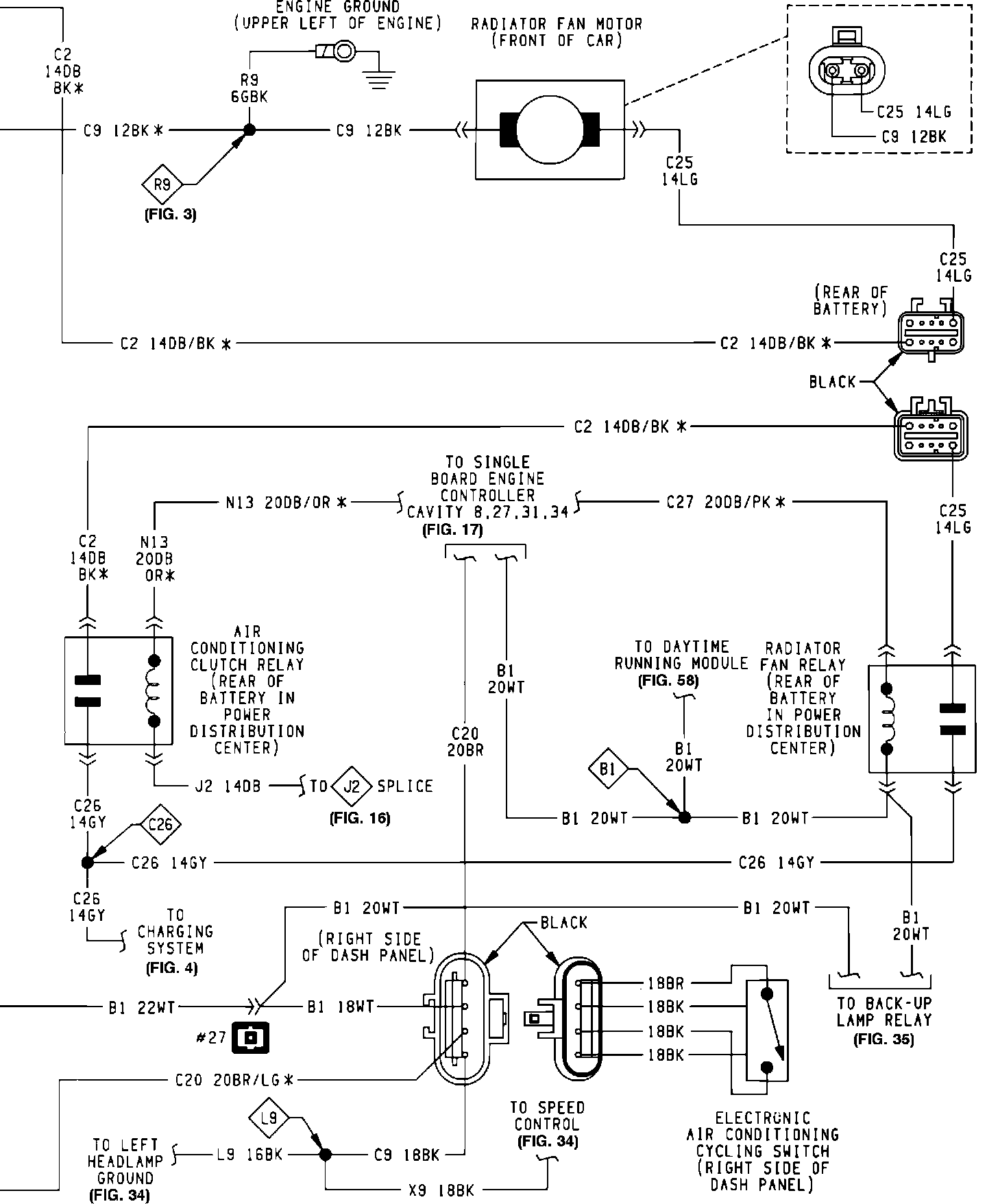

With A/C, 2.5L Engine, Part 2 Of 2:
