Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 1 Thru 20 >> 6

1 Thru 20: 6

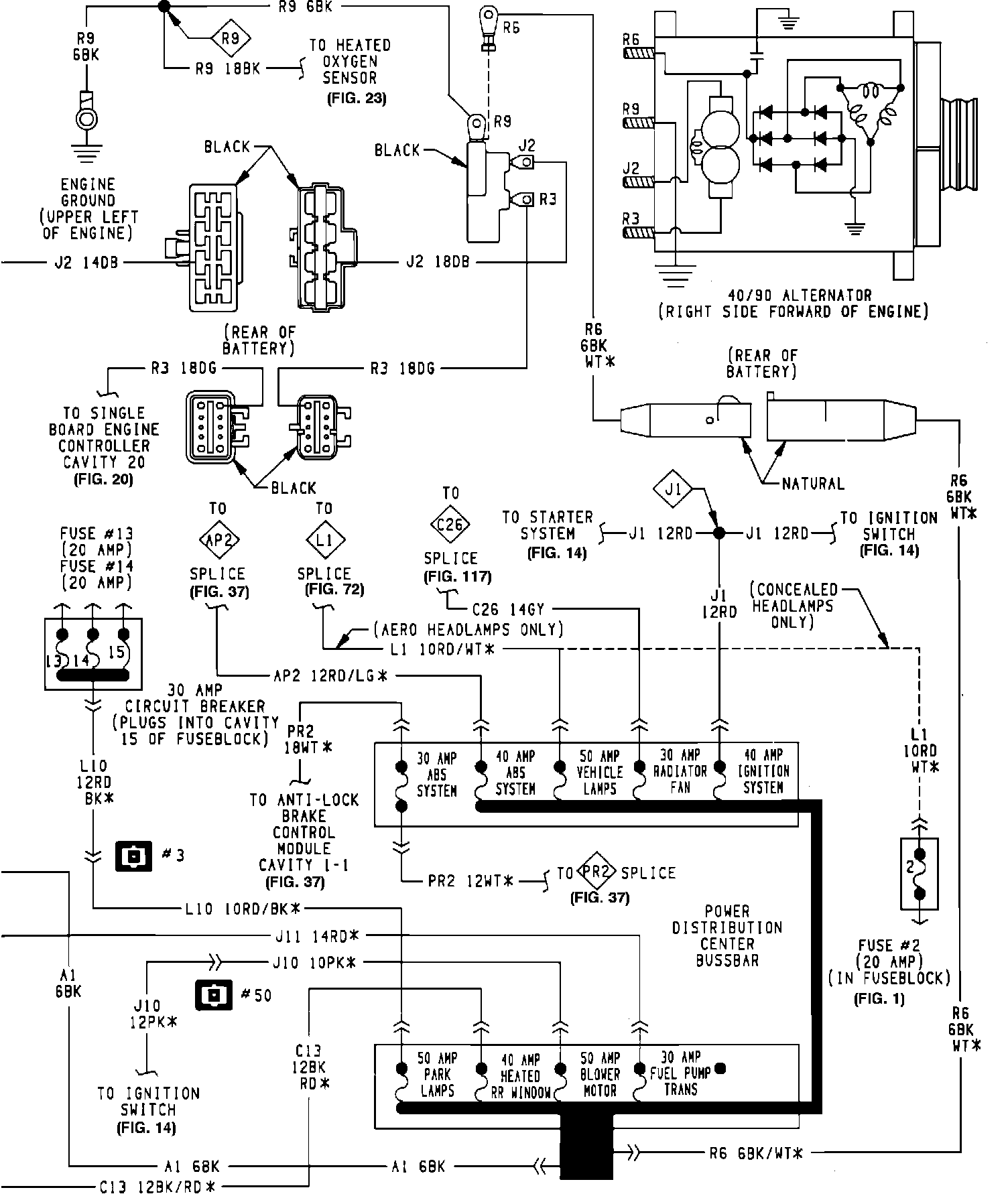

Charging System - 3.0L With Bosch Anti-Lock Brakes:
