Late Production

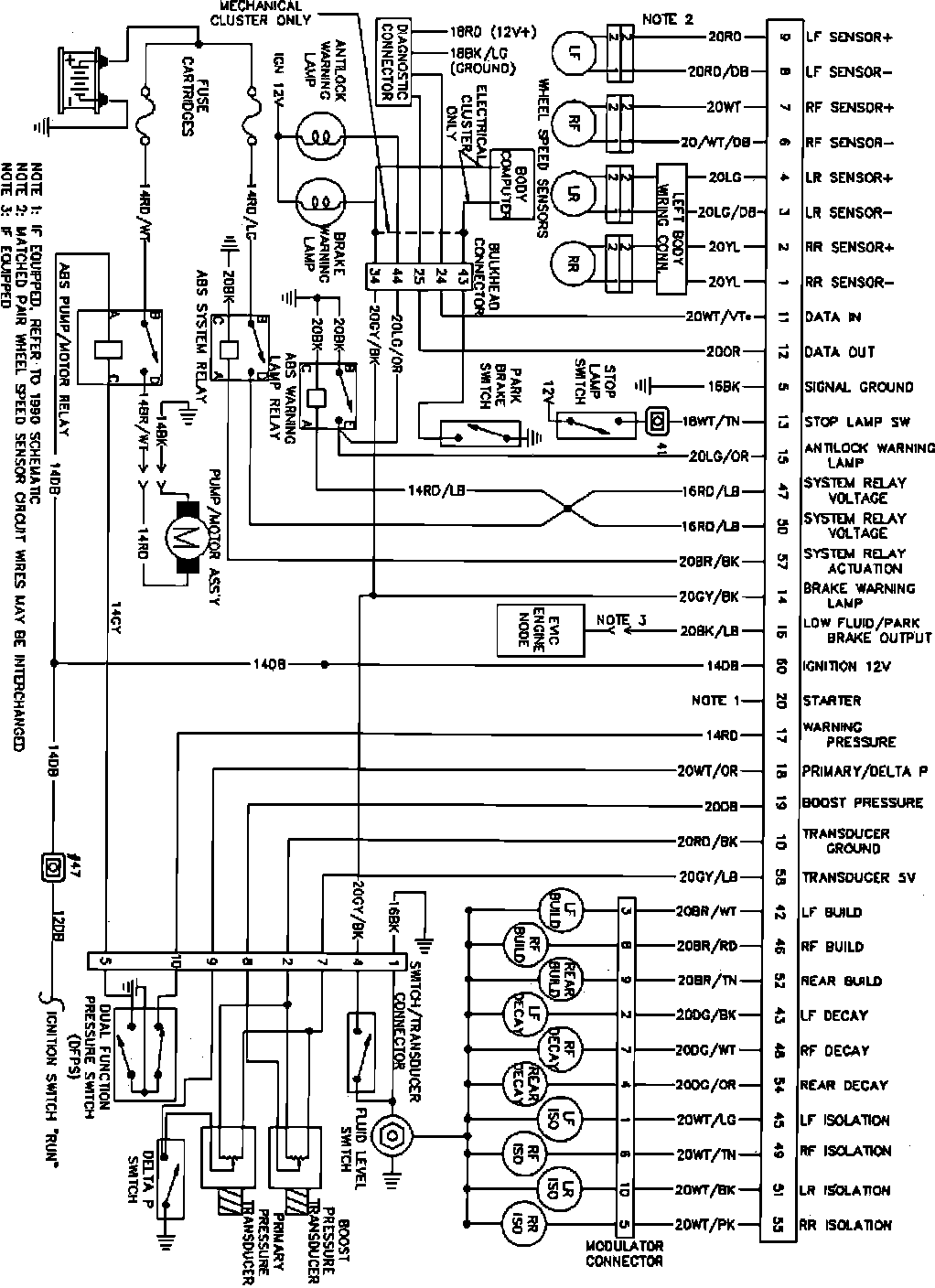

Fig. 3 Bendix Anti-Lock 10 Braking System Wiring Diagram:

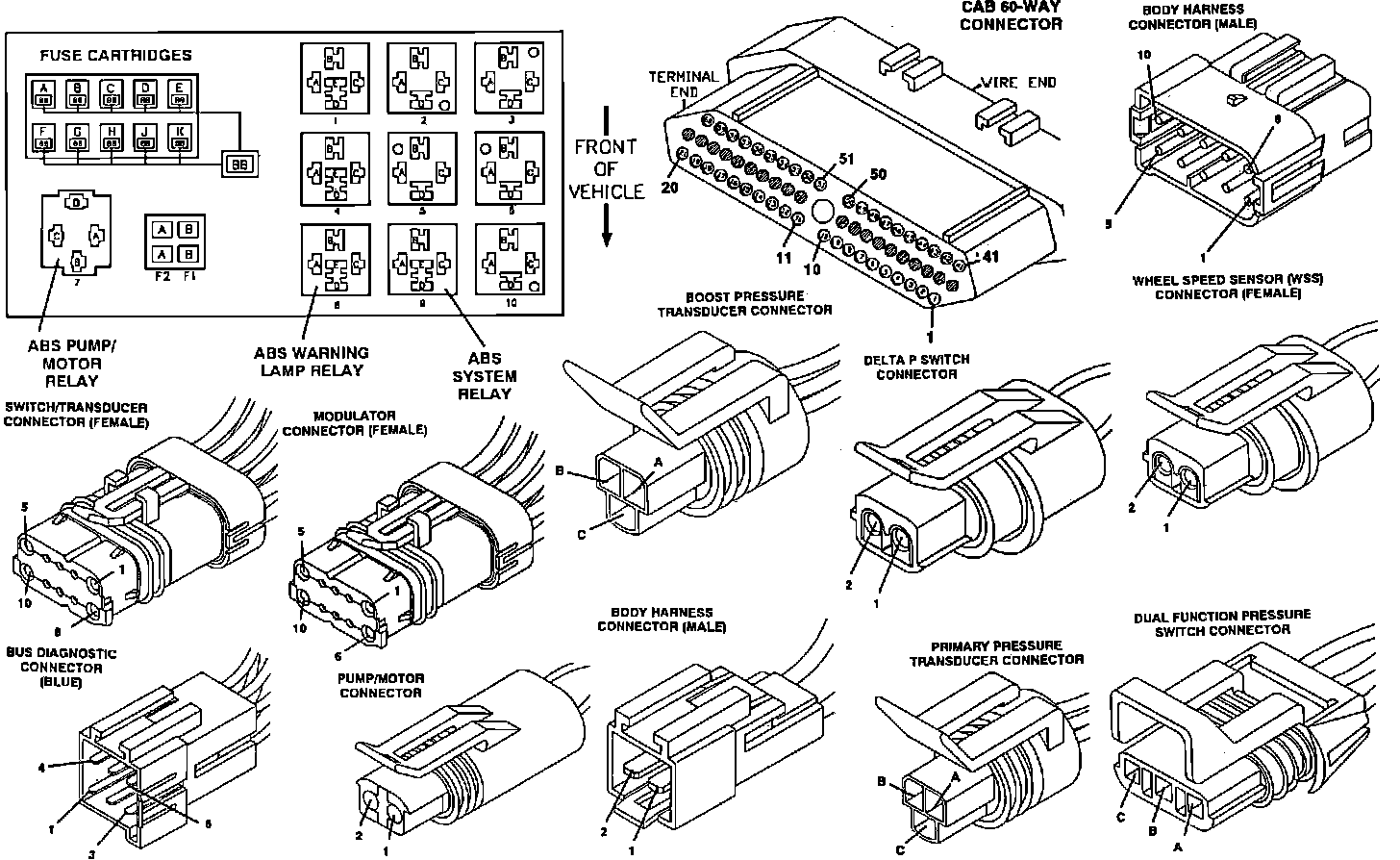

Fig. 7 Bendix Anti-Lock 10 Braking System Connector Identification:
