Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Body Control Module
>>
With Mechanical Cluster
>>
Without Visual Message Center
Without Visual Message Center

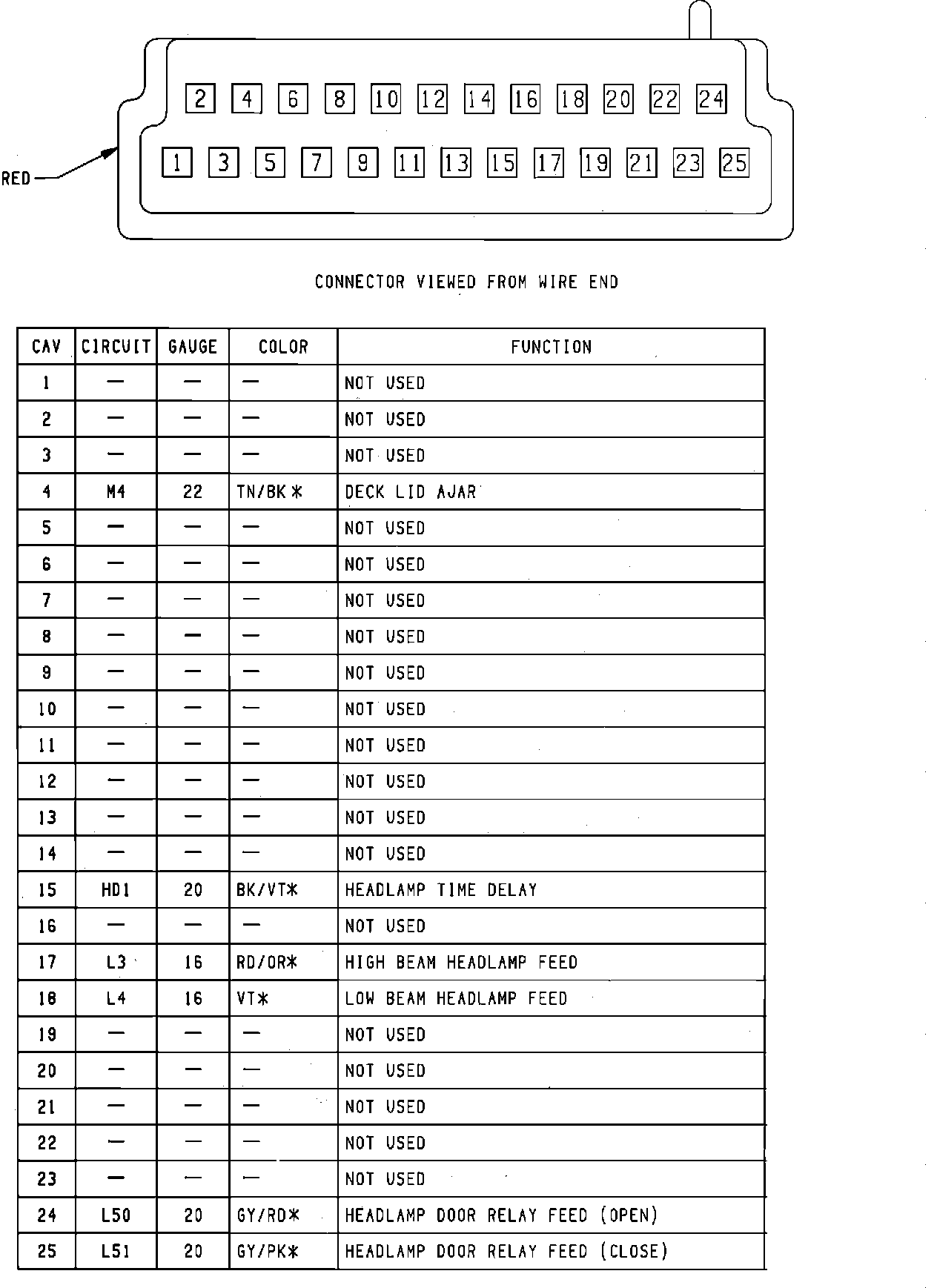

BCM Red Connector - Mechanical Cluster W/O EVIC:
BCM Black Connector - Mechanical Cluster W/O EVIC:
