With Visual Message Center

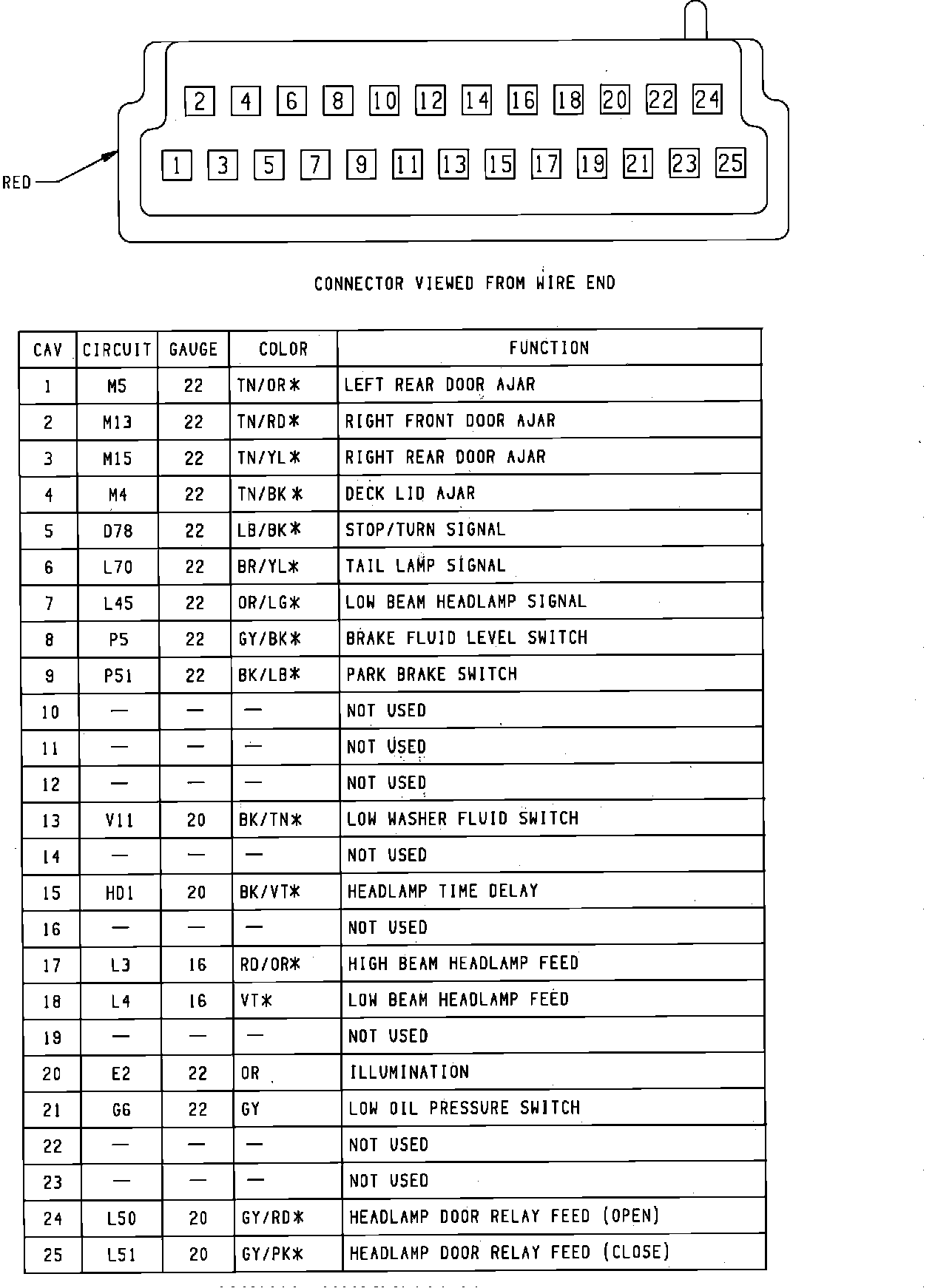

BCM Red Connector (Mechanical Cluster W/EVIC):

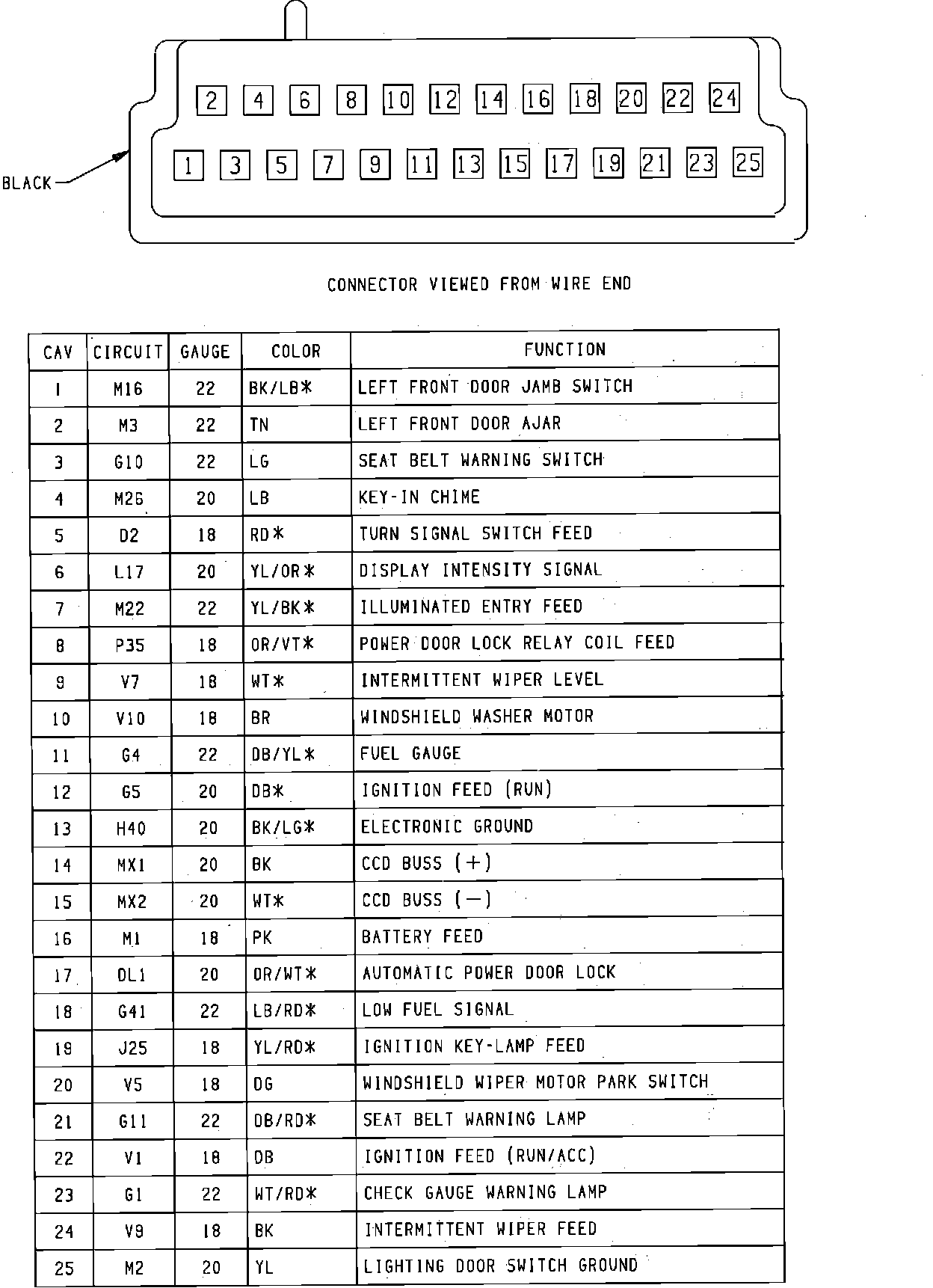

BCM Black Connector (Mechanical Cluster W/EVIC):
