With Electronic Cluster

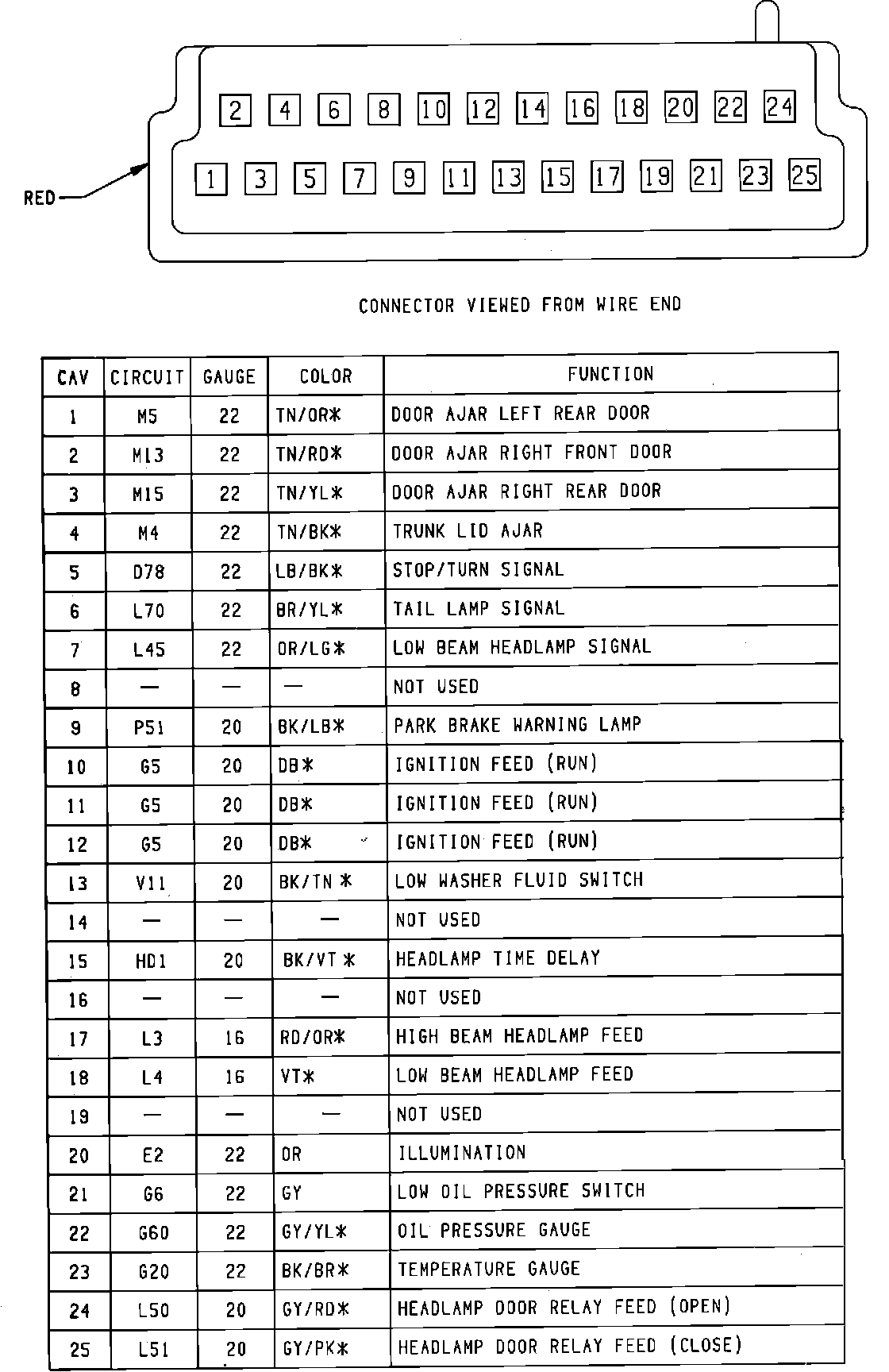

BCM Red Connector W/Electronic Cluster:

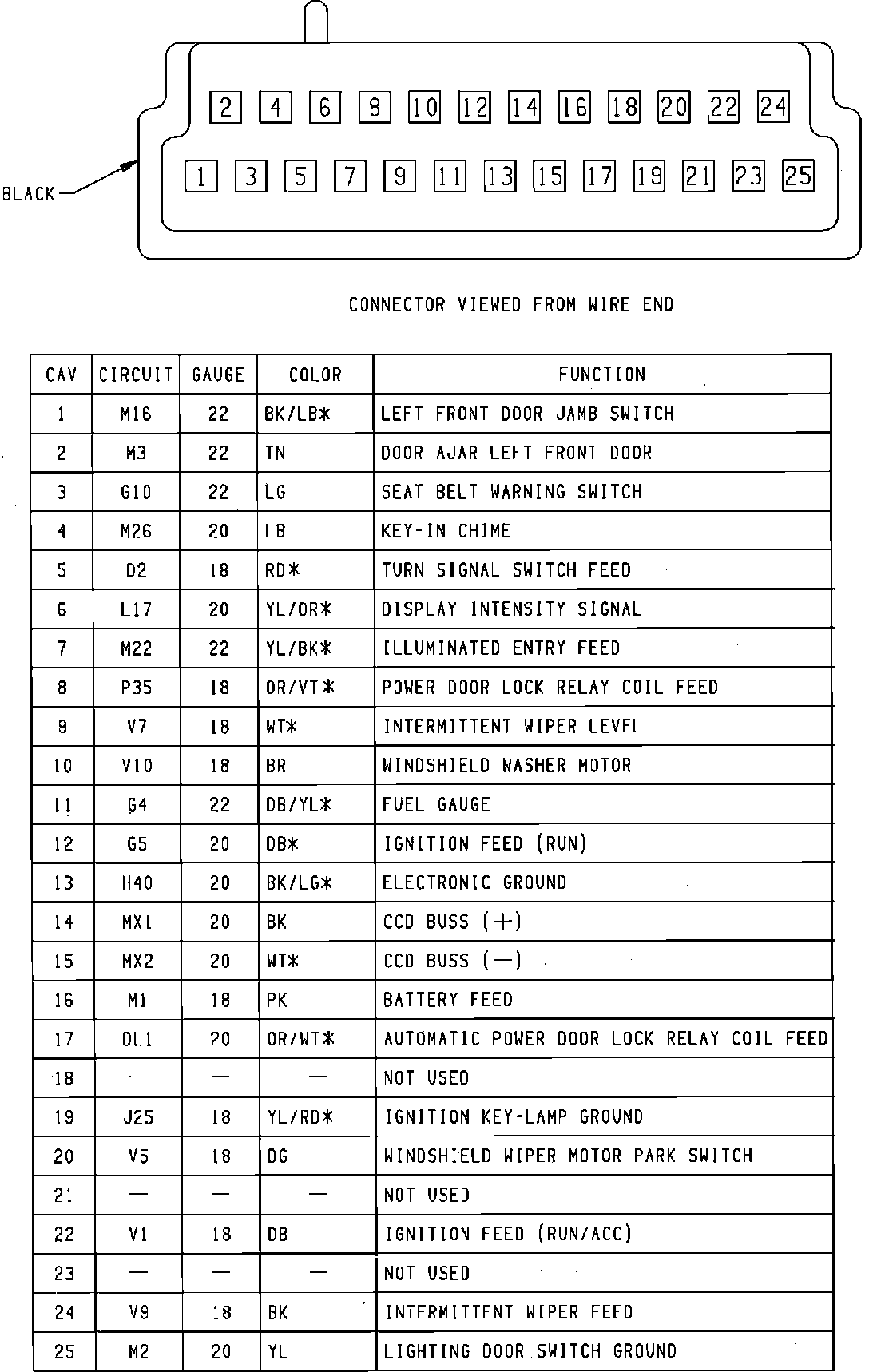

BCM Black Connector W/Electronic Cluster:
