Vehicle Theft Alarm Module

CONNECTOR PINOUTS

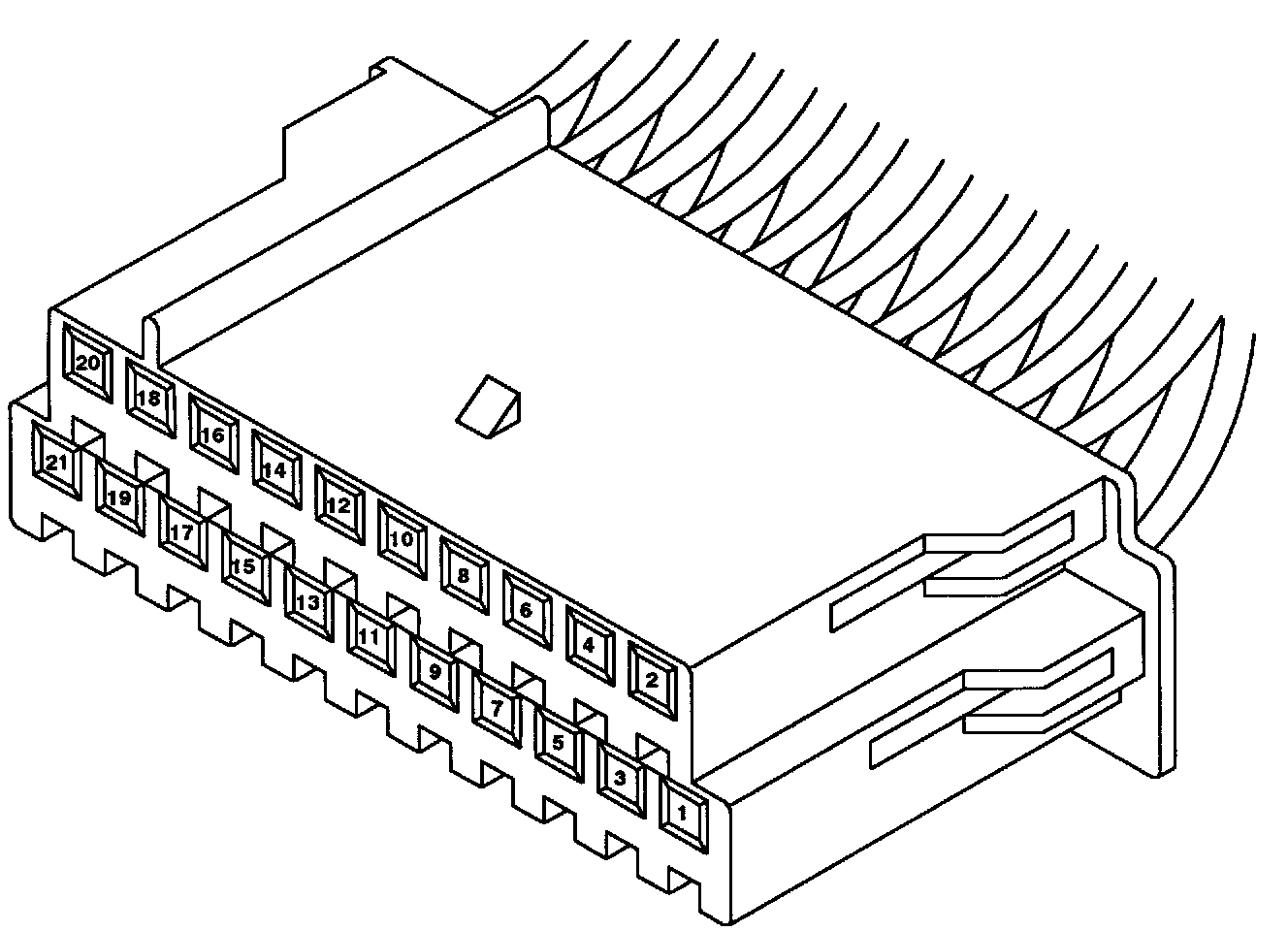

VEHICLE THEFT ALARM MODULE CONNECTOR (NATURAL)

CONNECTOR VIEWED FROM TERMINAL END

CAV COLOR FUNCTION

1 H 40 BK/LG Electronic Ground
2 MX2 WT/BK Serial Data Bus (-)
3 M6BR/RD HoodAjar
4 MX1 BK Serial Data Bus (+)
*5 M31 TN Left Front Door Ajar
+5 M31 WT/TN Door Deck Ajar
6 G5 DB/WT Ignition Feed (Run)
*7 M5 TN/OR Left Rear Door Ajar
8 M32 DG/OR Rt Front Door Key Cyl (Unarm)
9 SA1 BK/OR GRND To Security Alarm Lamp
10 H40 BK.LG Electronic Ground

* With Electronic Cluster Only

CAV COLOR FUNCTION

11 P36 PK/VT Power Door Locks (Unlock)
12 H3 BK/RD Ground Signal To Horn Relay
13 DL1 OR/WT Power Door Locks (Lock)
14 L7 BK/YL Tail/Park Lamps
15 M33 LG/OR Lt Front Door Key Cyl (Unarm)
16 M13 TN/RD Right Front Door Ajar
17 M41 VT/YL Trunk Key Cylinder Ground
18 X1 RD Battery Feed
19 V1 D Ignition Feed (Run/ACC)
20 M15 TN/YL Right Rear Door Ajar
21 L8 PK/BK Tail/Park Lamp Feed

+With Mechanical Cluster Only
