Red Connector

CONNECTOR PINOUTS

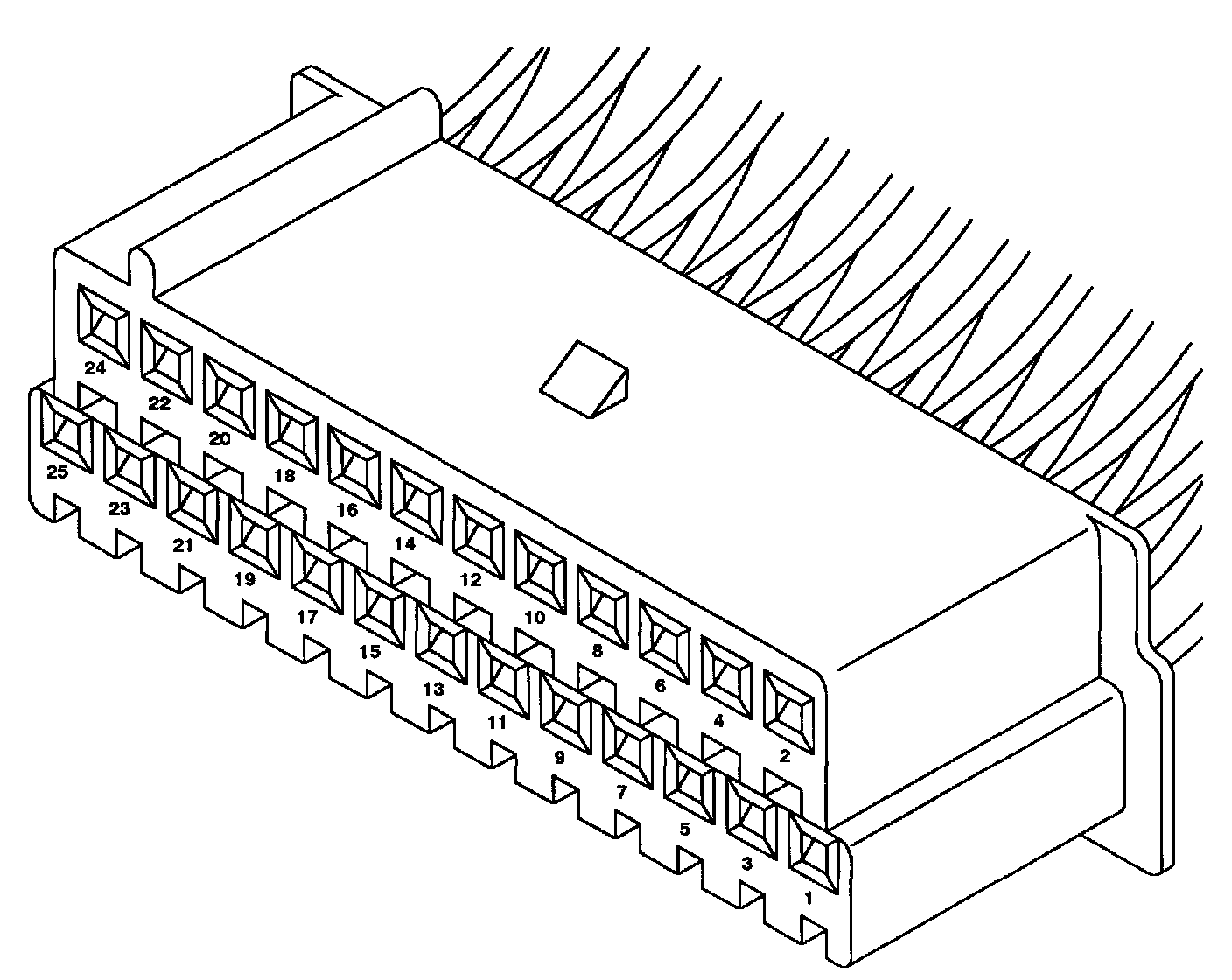

BODY COMPUTER MECHANICAL CLUSTER (RED)

CONNECTOR VIEWED FROM TERMINAL END

CAV COLOR FUNCTION

1 MS TN/OR Door Ajar Left Rear Door
2 M13 TN/RD Door Ajar Right Front Door
3 M15 TNYL Door Ajar Right Rear Door
4 M4 TN/Bk Trunk Lid Ajar
5 D78 LB/BK Stop/Turn Signal
6 L70 BR/YL Tail Lamp Signal
7 L45 .OR/LG Low Beam Headlamp Signal
8 Not Used
9 P51 BK/LB Park Brake Warning Lamp
10 Not Used
11 Not Used
12 Not Used
13 V11 BK/TN Lower Wshr Fluid Level Sensor
CAV COLOR FUNCTION
14 Not Used
15 HD1 BK/VT Headlamp Time Delay
16 Not Used
17 L3 RD/OR High Beam Headlamp Feed
18 L4 VT/WT Low Beam Headlamp Feed
19 Not Used
20 E2 OR PanelLampLevel
21 G6 GY Low Oil Pressure Switch
22 Not Used
23 Not Used
24 L50 GY/RD Hdlmp Door Relay Feed (Open)
25 L51 GY/PK Hdlmp Door Relay Feed (Close)
