Electronic Vehicle Information Center

CONNECTOR PINOUTS

ELECTRONIC VEHICLE INFORMATION CENTER

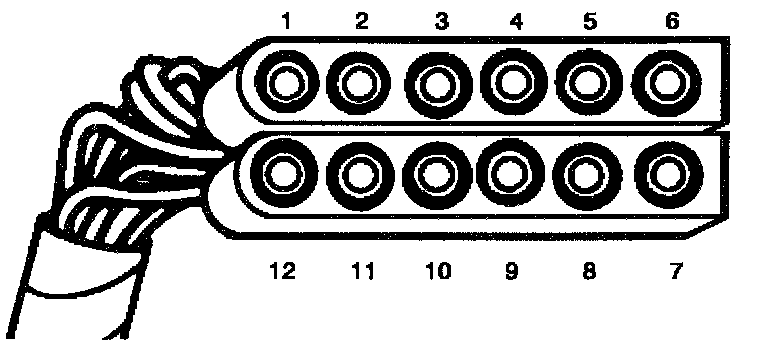

(ENGINE NODE) 12-WAY CONNECTOR

CAV COLOR FUNCTION

1 H40 BK/LG Electronic Ground
2 Not Used
3 B16 BK/LB Low Brake Fluid Level Sensor
4 Not Used
5 Not Used
6 N18 PK* Low Engine Coolant Level Sensor

CAV COLOR FUNCTION

7 MX1 BK Serial Data Bus (+)
8 MX2 WT/BK Serial Data Bus (-)
9 Not Used
10 G16 BK Low Engine Oil Level Sensor
11 J20 DB* Engine Node Power Feed
12 Not Used
