Black Connector

CONNECTOR PINOUTS

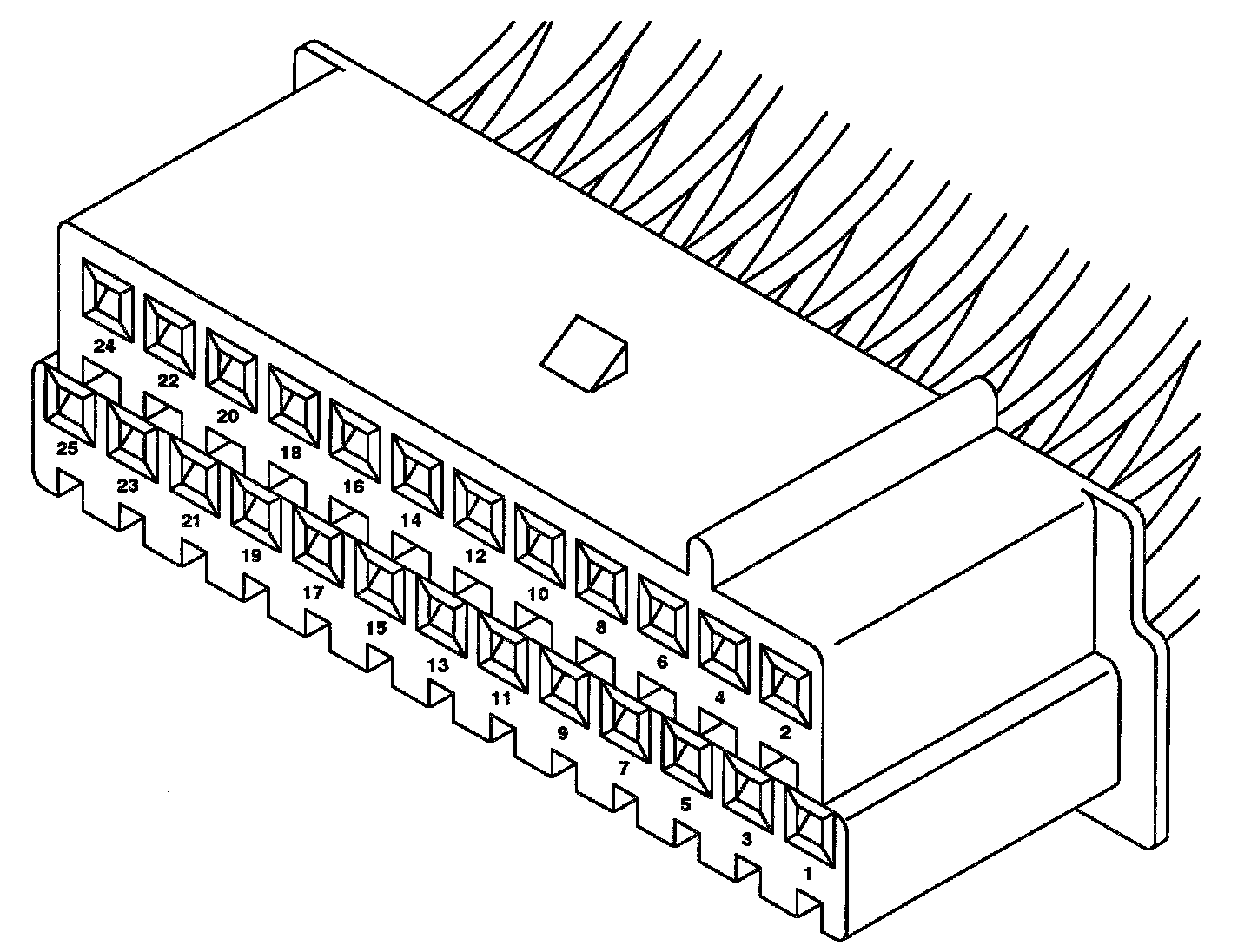

BODY COMPUTER ELECTRONIC CLUSTER (BLACK)

CONNECTOR VIEWED FROM TERMINAL END

CAV. COLOR FUNCTION

1 M16 Bk/LB Left Front Door Jamb Switch
2 M3 TN Door Ajar Left Front Door
3 G1O LG Seat Belt Warning Switch
4 M26 LB Key-In Chime
5 D2 RD/WT Turn Signal Flasher Feed
6 L17 YL/OR Display Intensity Signal
7 M22 YL/BK Illuminated Entry Feed
8 P35 OR/WT Power Door Lock Switch Feed
9 V7 WT/BK Intermittent Wiper Level
10 V1O BR Windshield Washer Motor Feed
11 G4 DB/YL Fuel Gauge
12 G5 DB Ignition Feed (Run)
13 H40 Bk/LG Electronic Ground

CAV COLOR FUNCTION

14 MX1 BK Serial Data Bus (+)
15 MX2 .WT/BK Serial Data Bus (-)
16 M1 PK Battery Feed
17 DL1 OR/Wr Automatic Power Door Lock
18 Not Used
19 J25 YL/RD Ignition Key-Lamp Feed
20 V5 DG Intermittent Wiper (Dwell)
21 Not Used
22 Vi DB Ignition Feed (RunlAcc)
23 Not Used
24 V9 BK Windshield Wpr Mtr (Low Spd)
25 M2 YL Courtesy Lamps (Switch Gnd)
