Electronic Cluster Printed Circuit Board Connector

CONNECTOR PINOUTS


ELECTRONIC CLUSTER

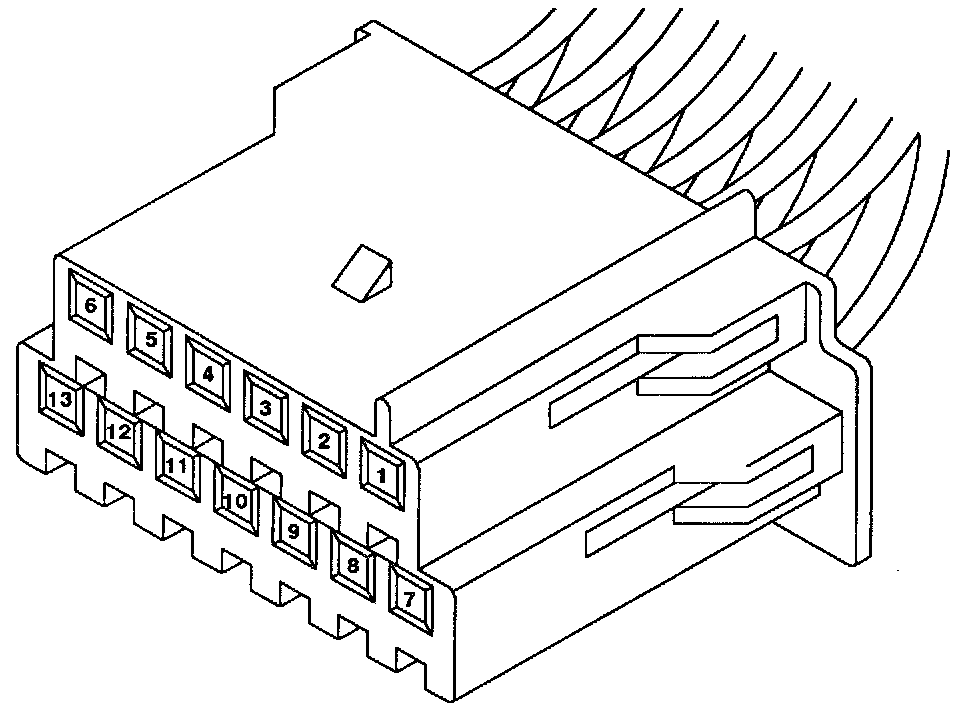

PRINTED CIRCUIT BOARD CONNECTOR (RED)

CONNECTOR VIEWED FROM WIRE END

CAV COLOR FUNCTION

1 P7 LG* Anti-Lock Braking
2 M1 PK Battery Feed
3 L3 RD/OR High Beam Indicator
4 P5 GY/Bk Brake Fluid Warning Switch
5 D6 LG Left Turn Signal Lamp
6 E2 OR Illumination Lamps
7 H40 BK/LG Electronic Ground

CAV COLOR FUNCTION

8 G6 GY Oil Pressure Switch
9 MX2 WT/BK Serial Data Bus (-)
10 MX1 BK Serial Data Bus (+)
11 G5 DB/WT Ignition Feed (Run/Start)
12 R41 BK/TN Air Bag Warning Light
13 D5 TN Right Turn Signal Lamp
