Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Right Instrument Panel to Body Wiring
Right Instrument Panel to Body Wiring

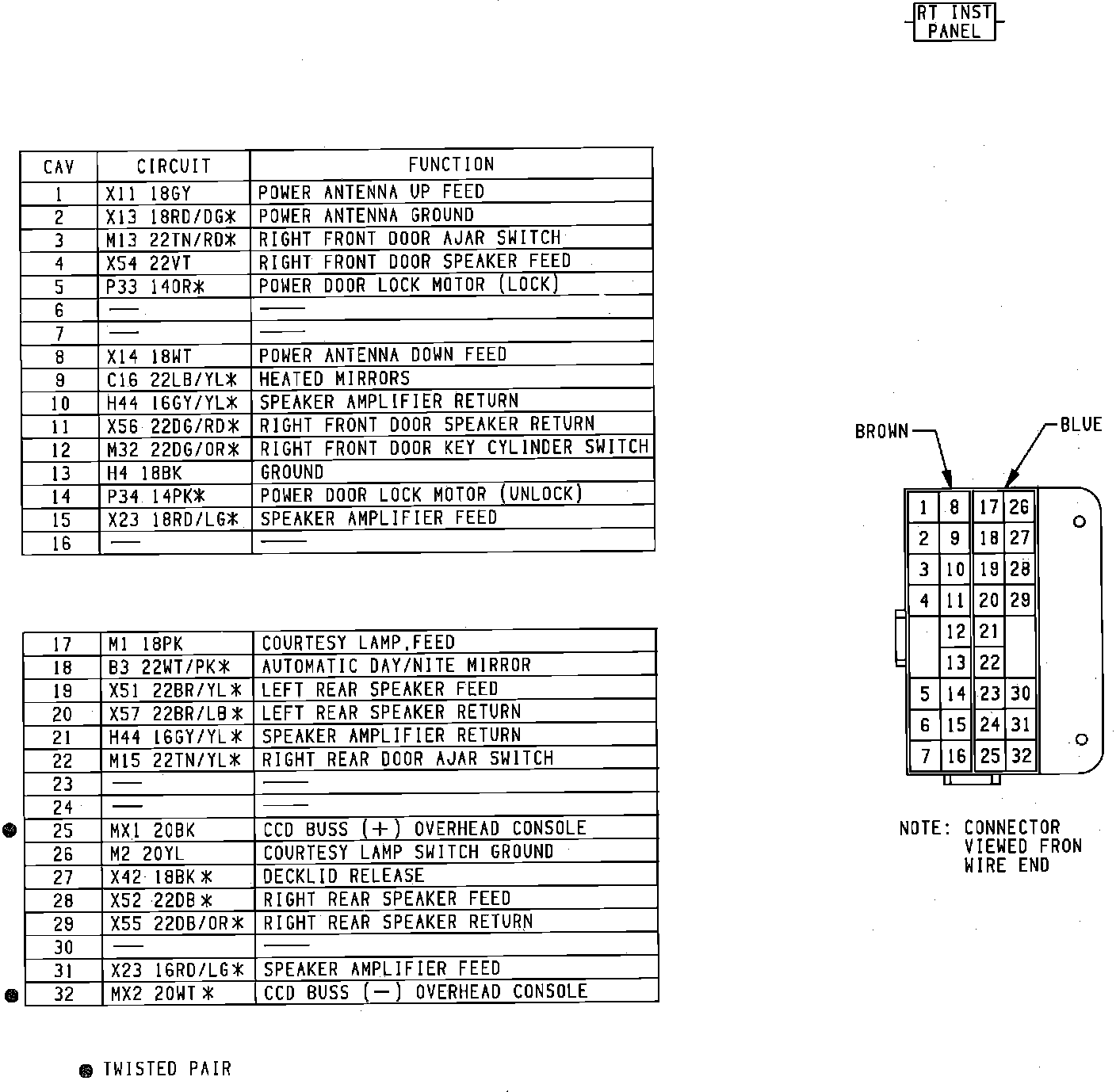

RH I/P To Body Wiring Connector:
