Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Block Module
Fuse Block Module

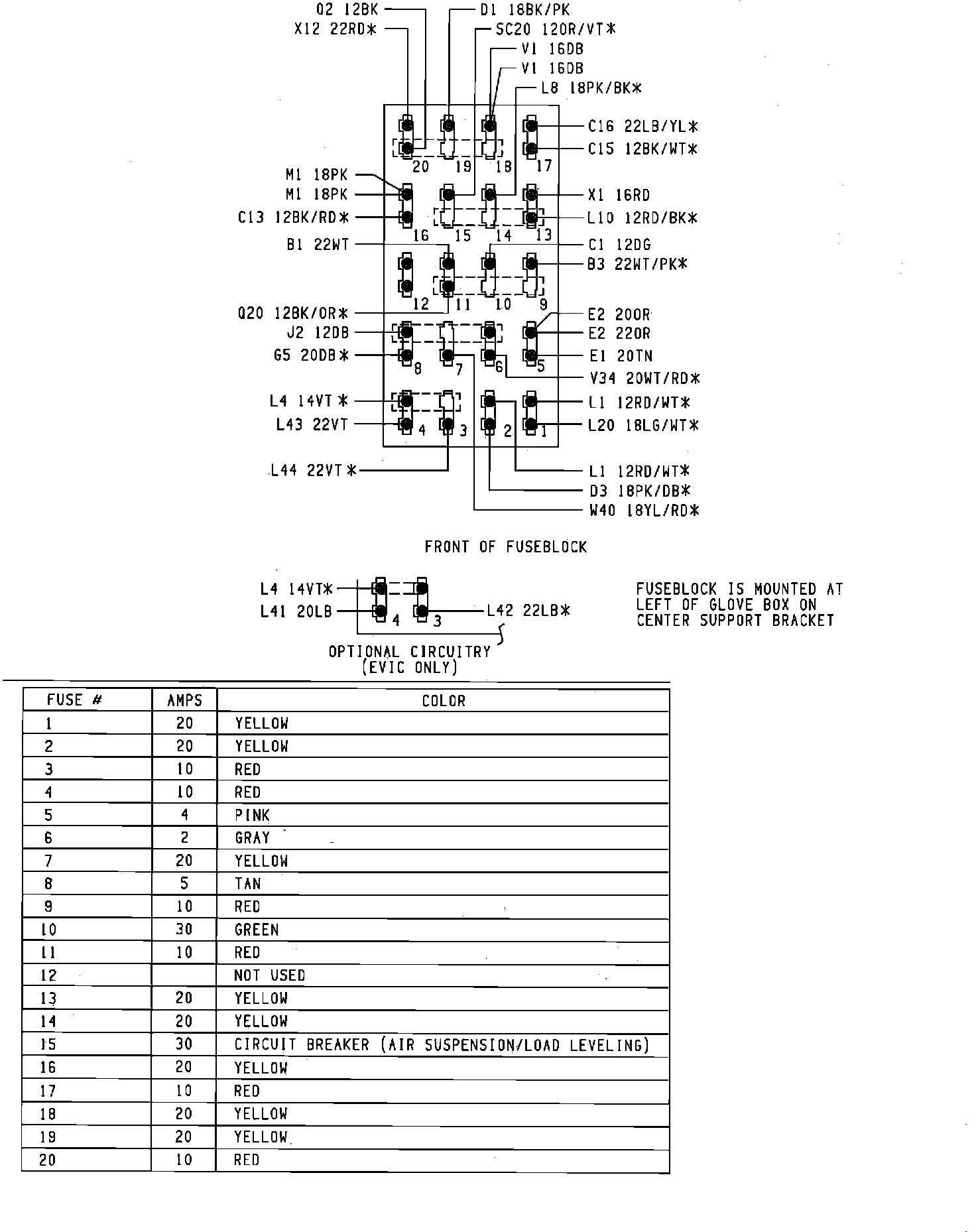

Fuse Block Module:
