Rear Bushing & Sleeve Replacement

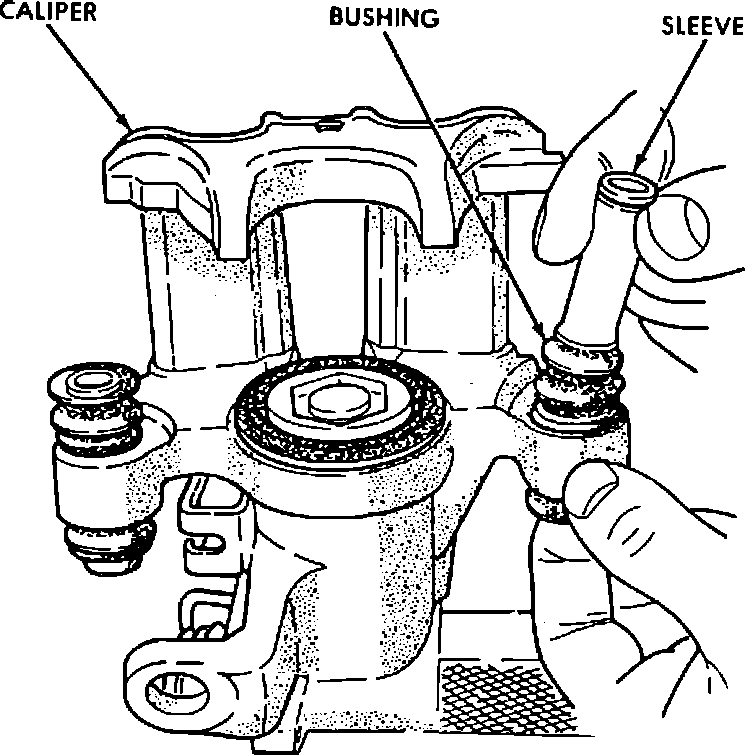

Fig. 10 Removing Sleeve From Bushing:

1. Unseat bushing from groove in metal sleeve, then remove metal sleeve from bushing.
2. Remove bushing from caliper.
3. Clean bushing mounting surface with suitable solvent and wipe dry.
4. Compress bushing with fingers and push into seated position.
5. Install sleeve into bushing, ensuring bushing is properly seated in sleeve grooves.
