Chart E - Low Fluid or Brake Warning Lamp On Diagnosis

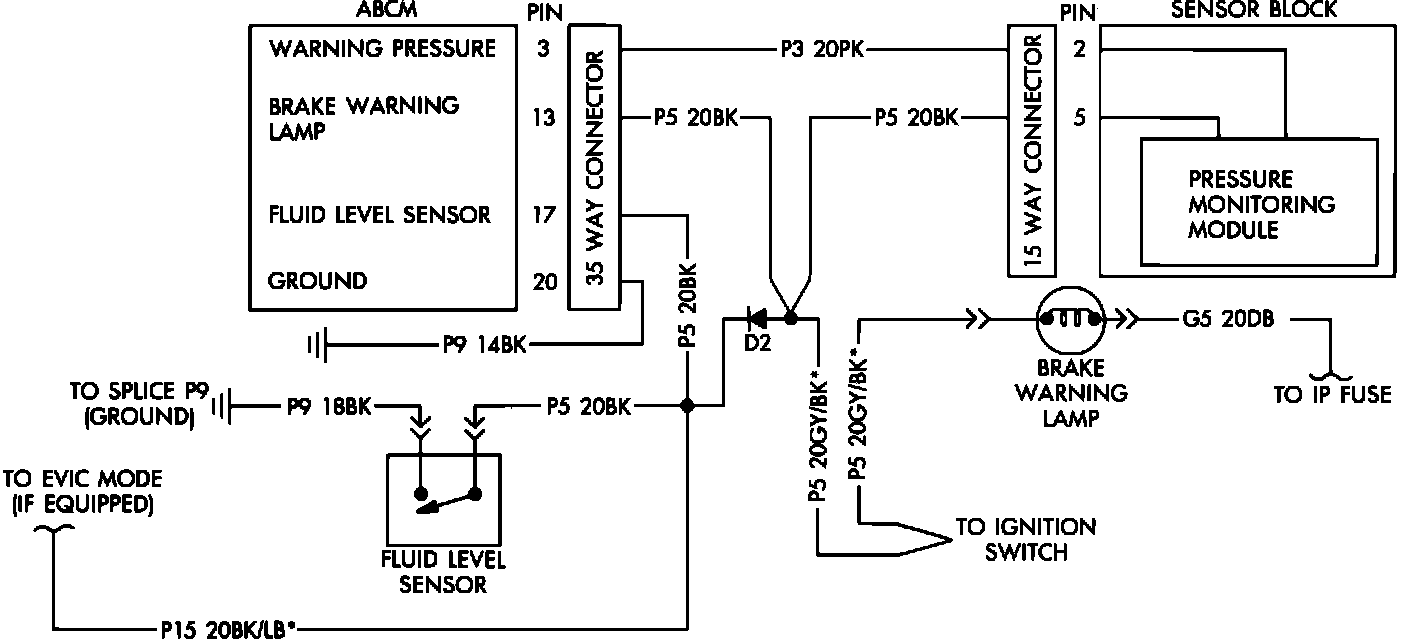

Low Fluid & Brake Warning Lamp Circuit:

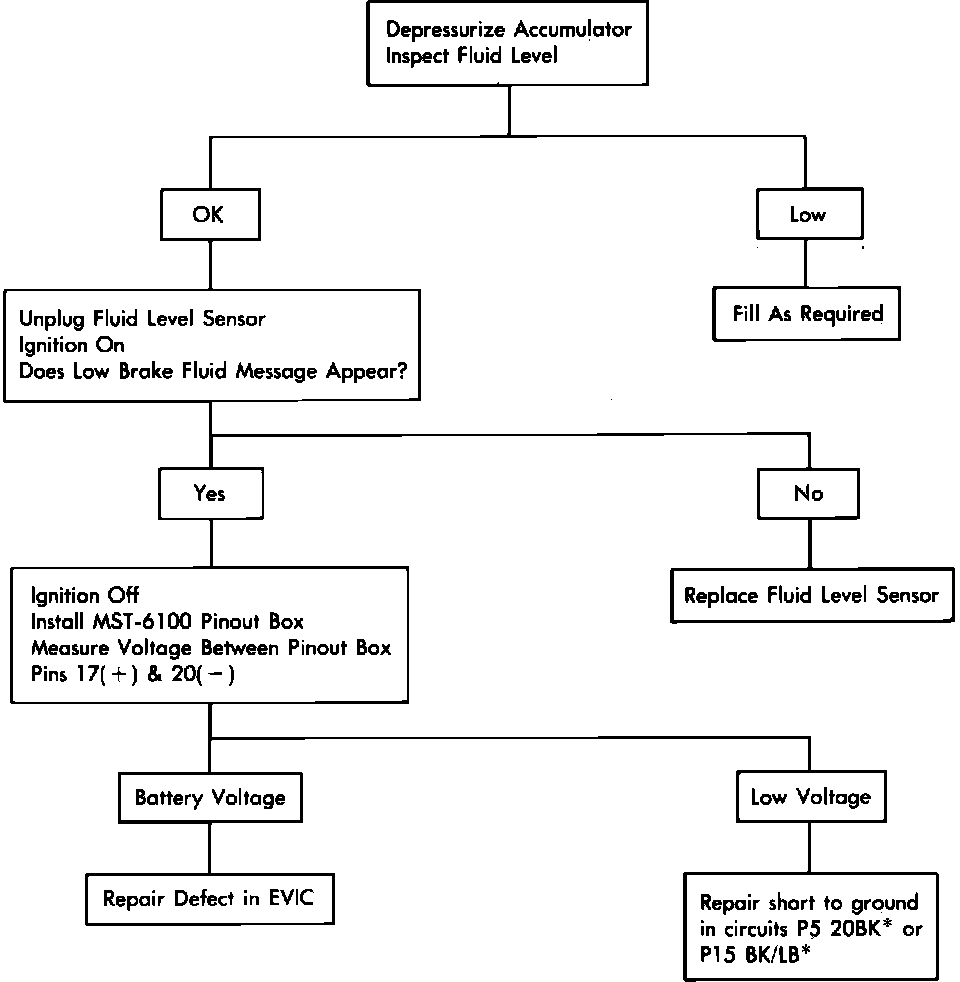

Chart E Diagnosis Chart:
