Chart D - Brake Warning Lamp Inoperative During Key-On
Chart D - Brake Warning Lamp Inoperative During Key-On

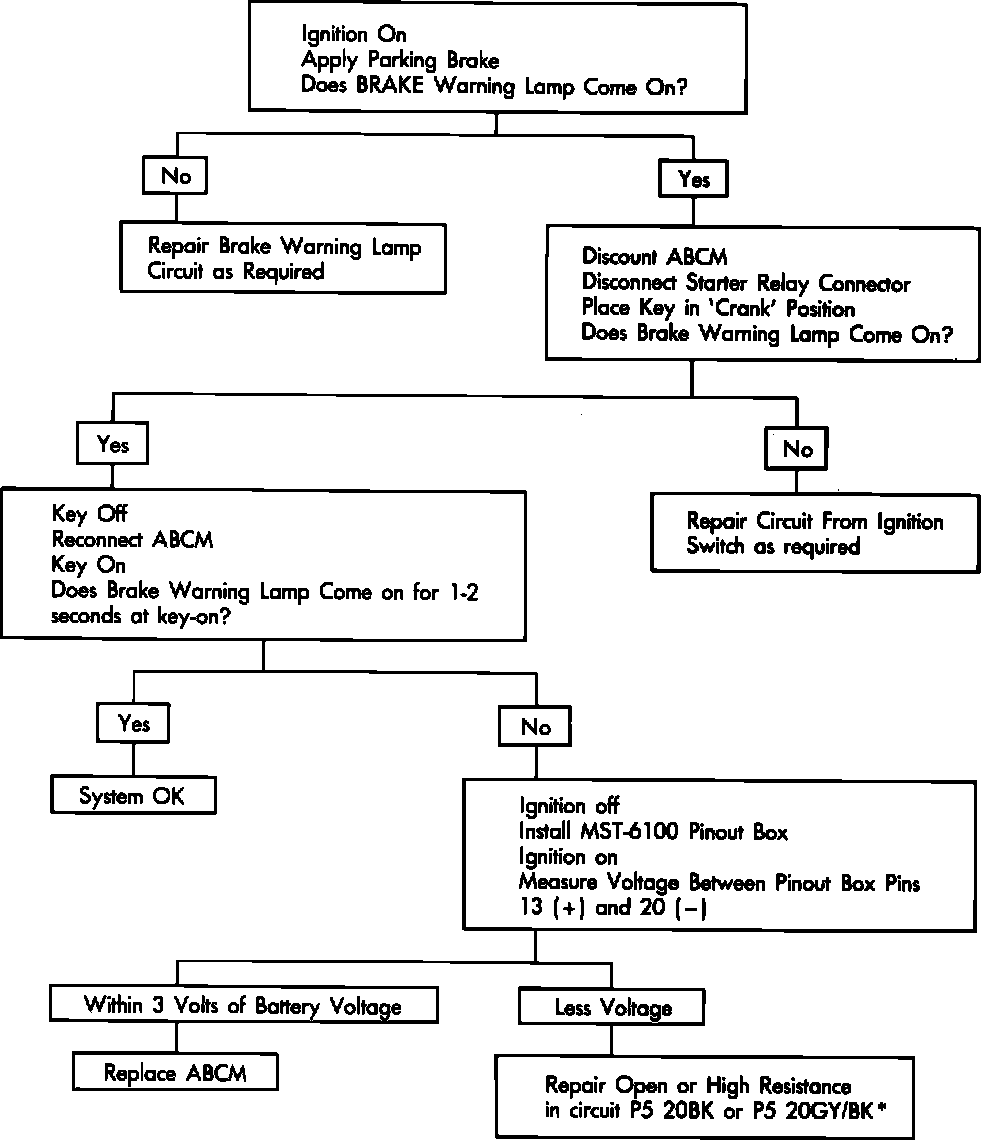

Chart D Diagnosis Chart:
