Home
>>
Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>

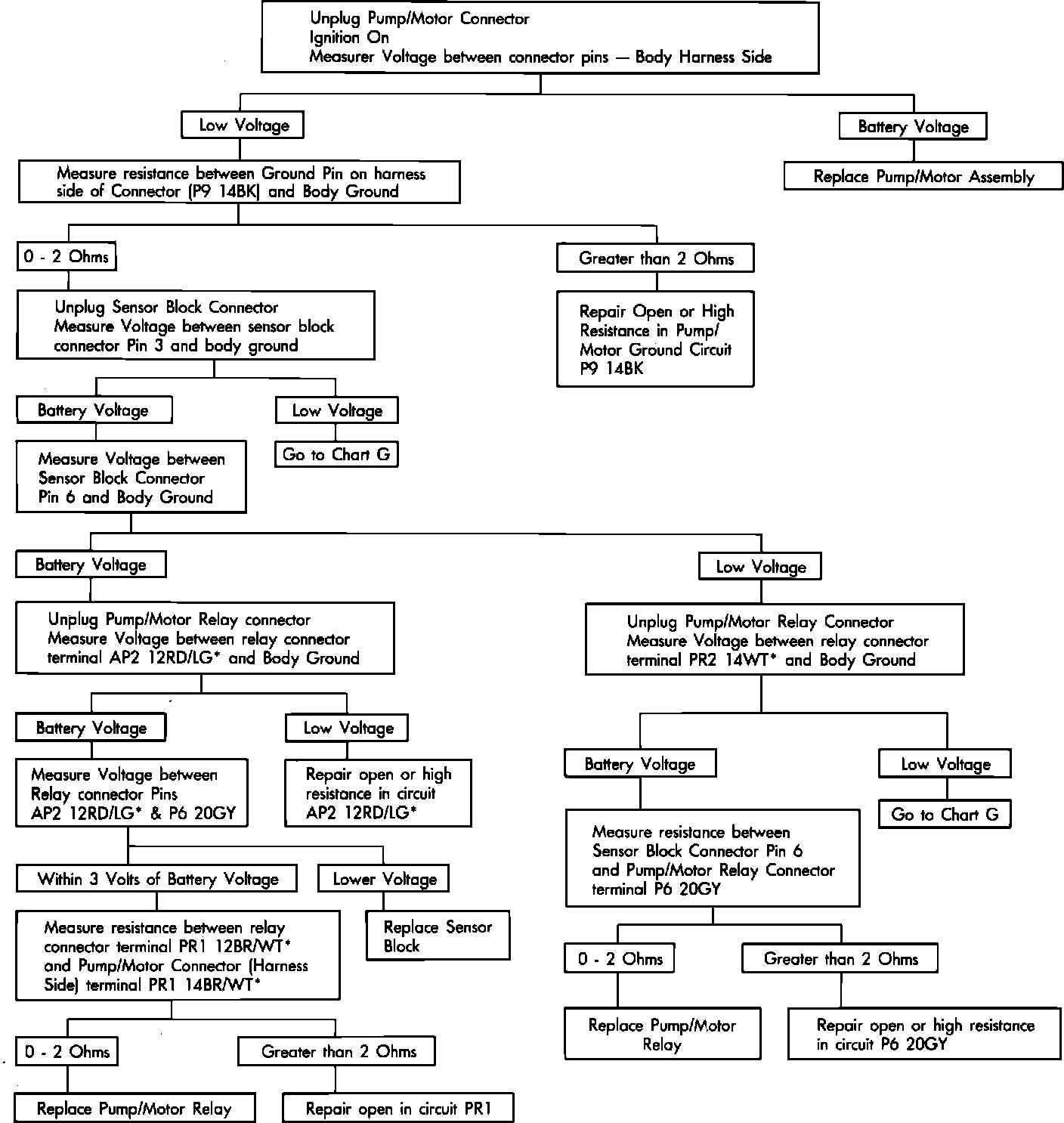

Chart C1 - Pump Does Not Run Diagnosis
Chart C1 - Pump Does Not Run Diagnosis
Chart C-1 DIagnosis Chart:
