Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Testing
>>
Helpful Information (DRB HELP Sections)
>>
Help 2: Component and Connector Locations
Help 2: Component and Connector Locations

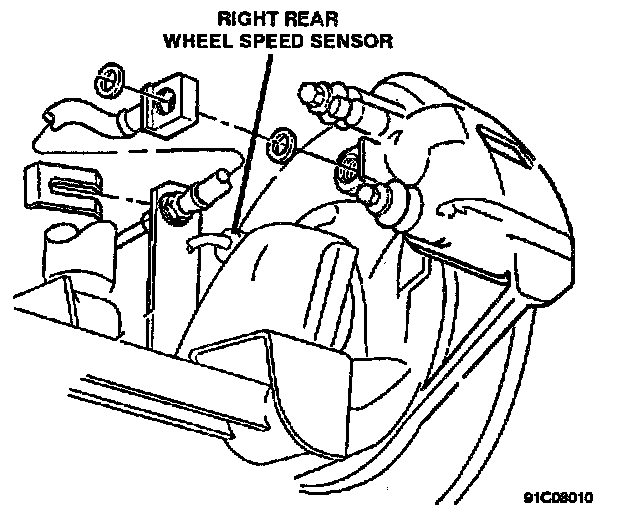

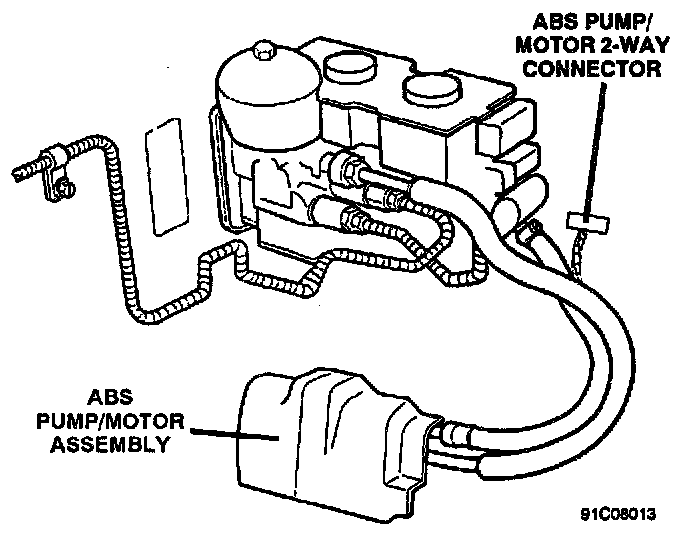

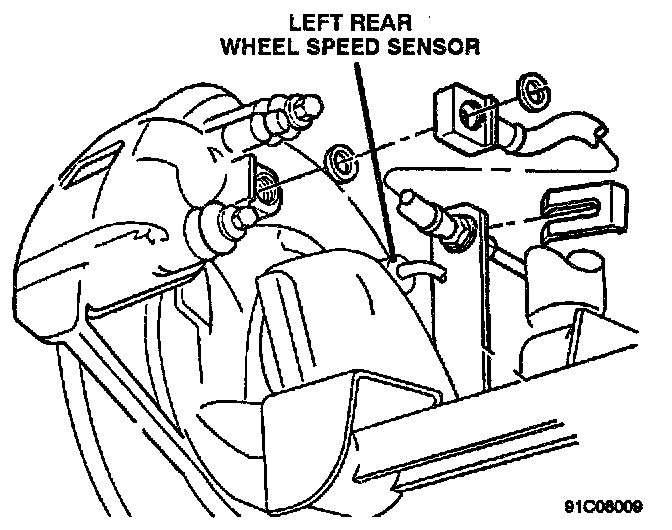

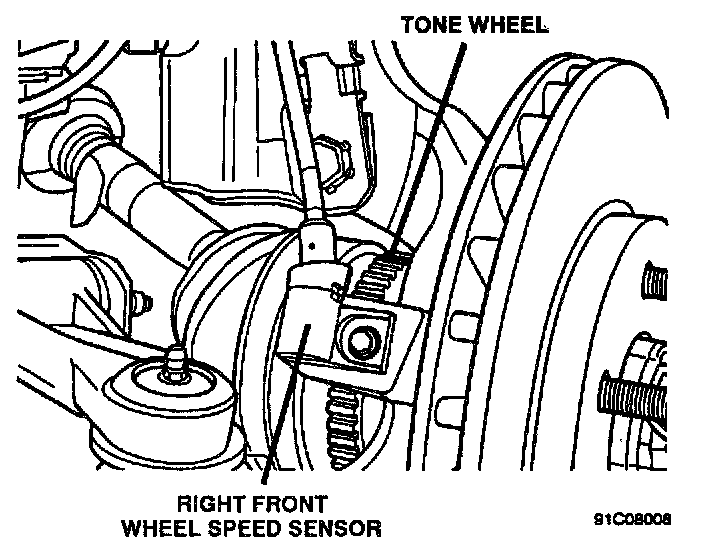

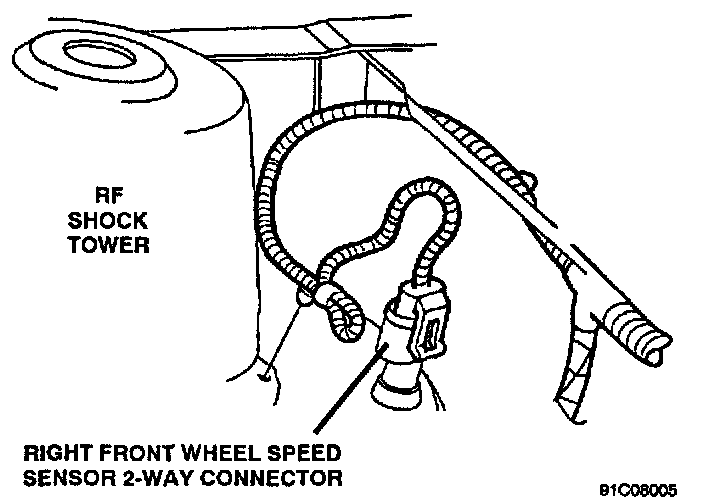

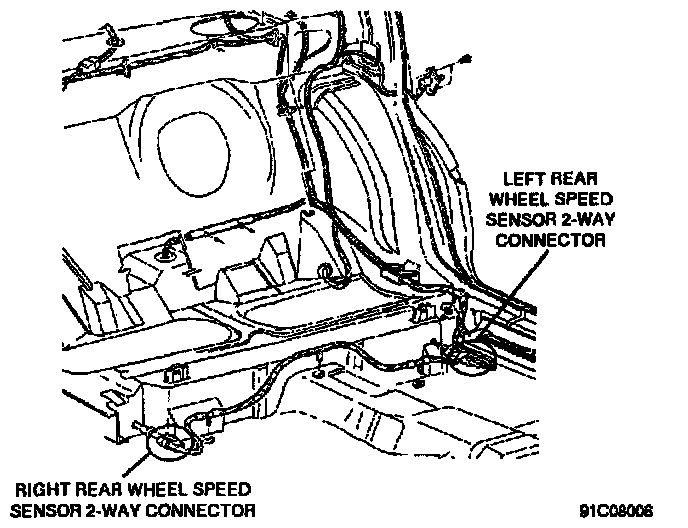

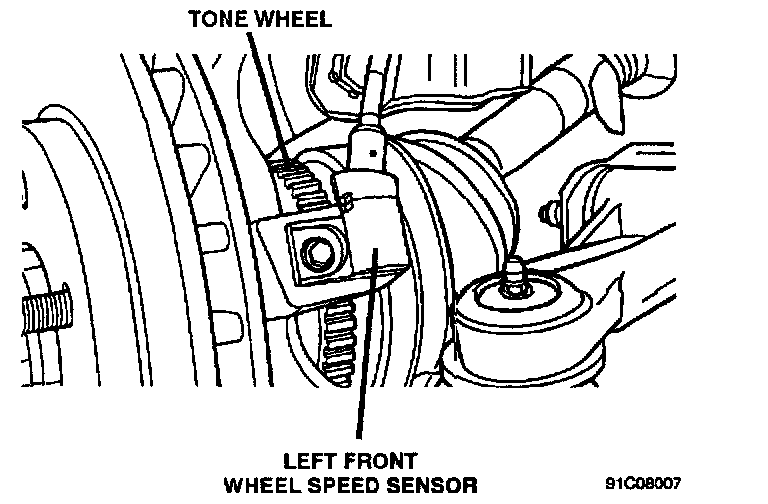

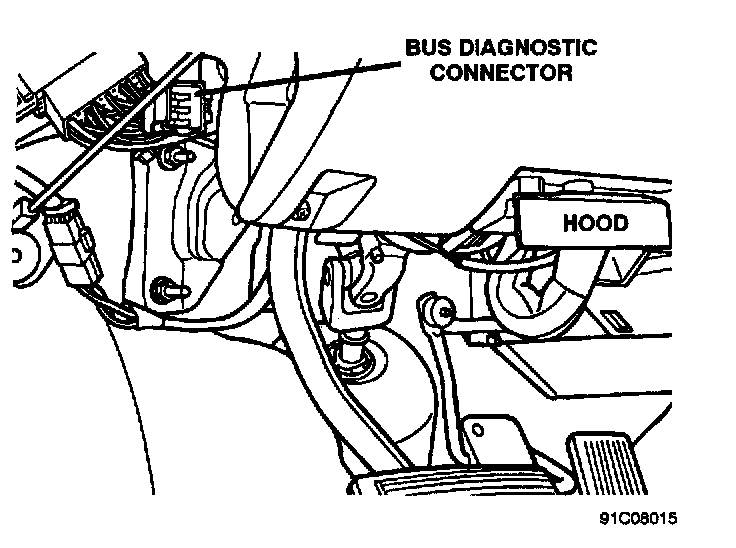

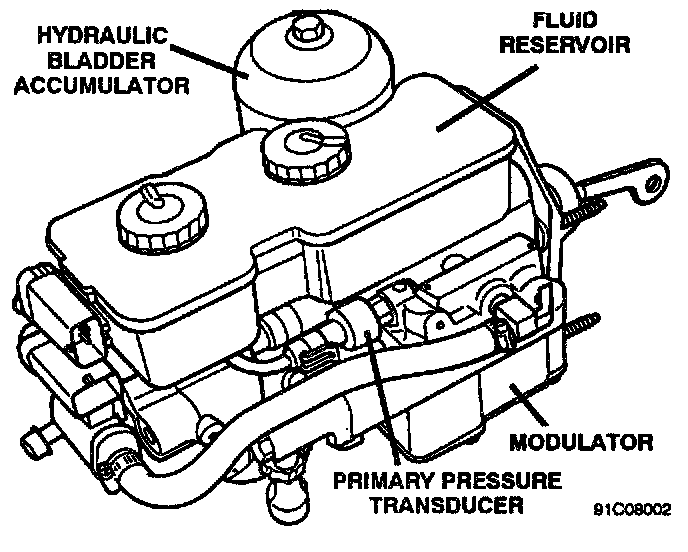

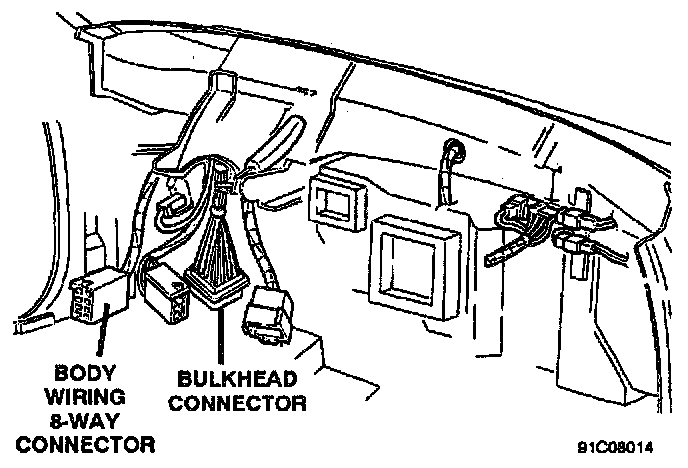

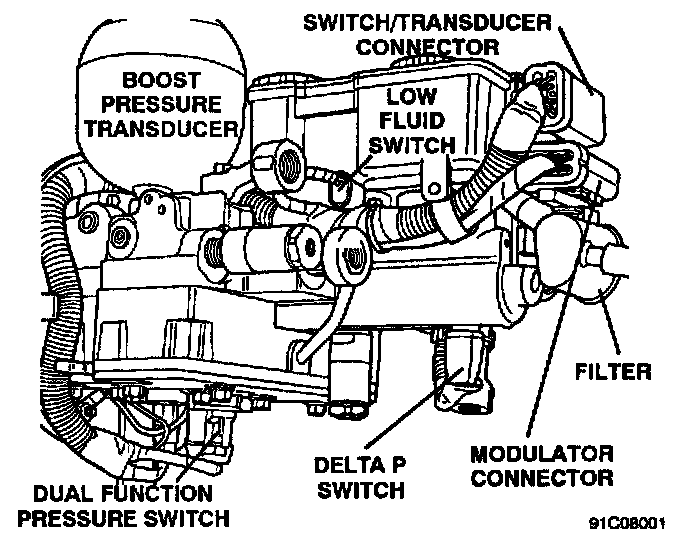

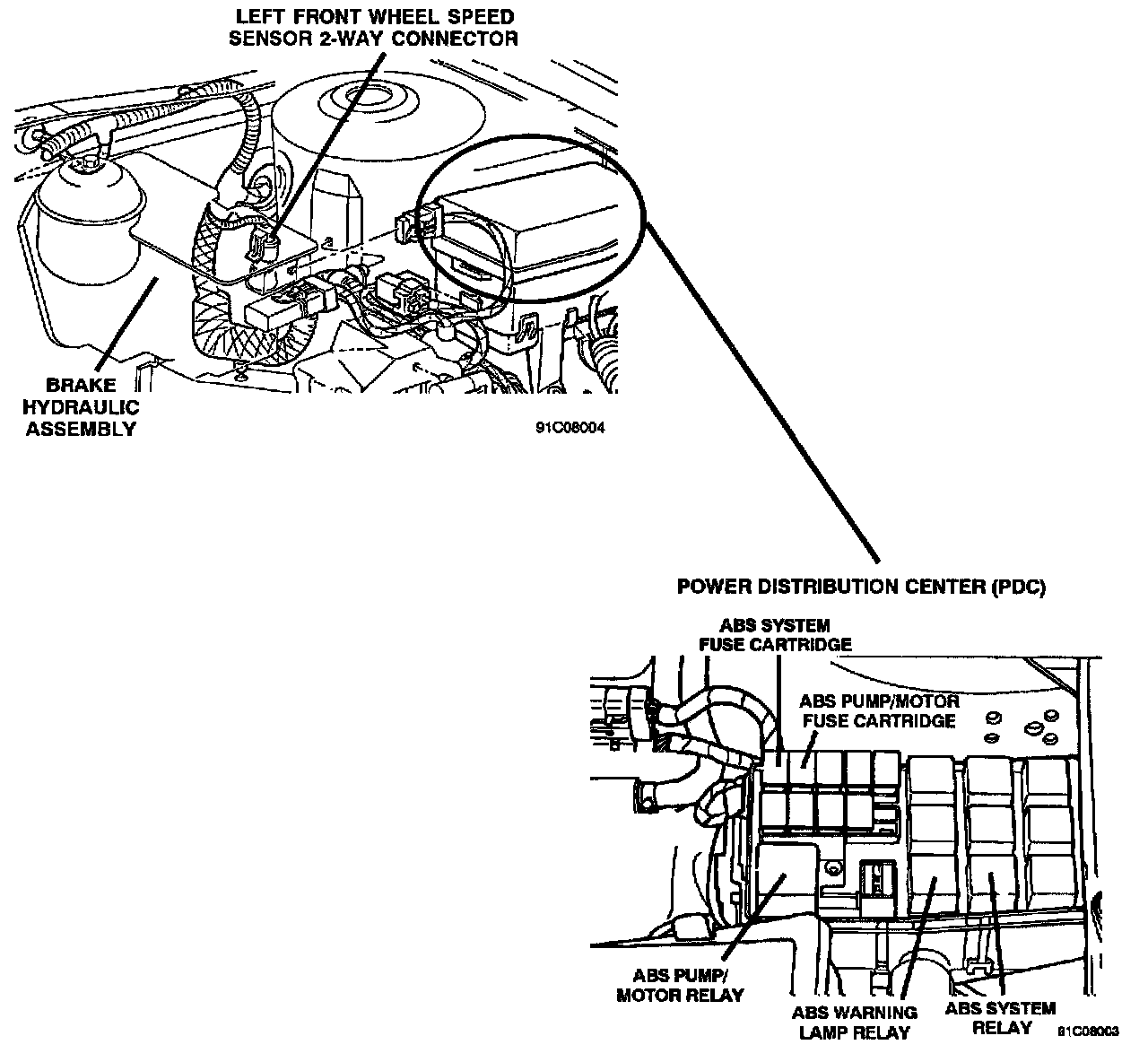

ABS components and connectors can be located by referring to the illustrations provided below.

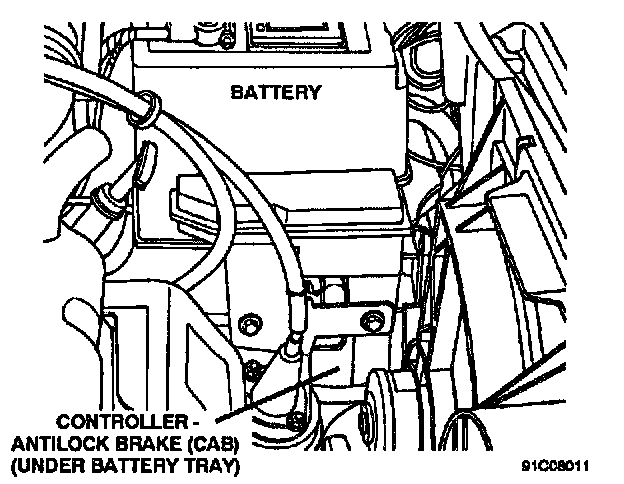

Controller Antilock Brake (CAB):
