Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations

Antilock Brakes / Traction Control Systems: Locations

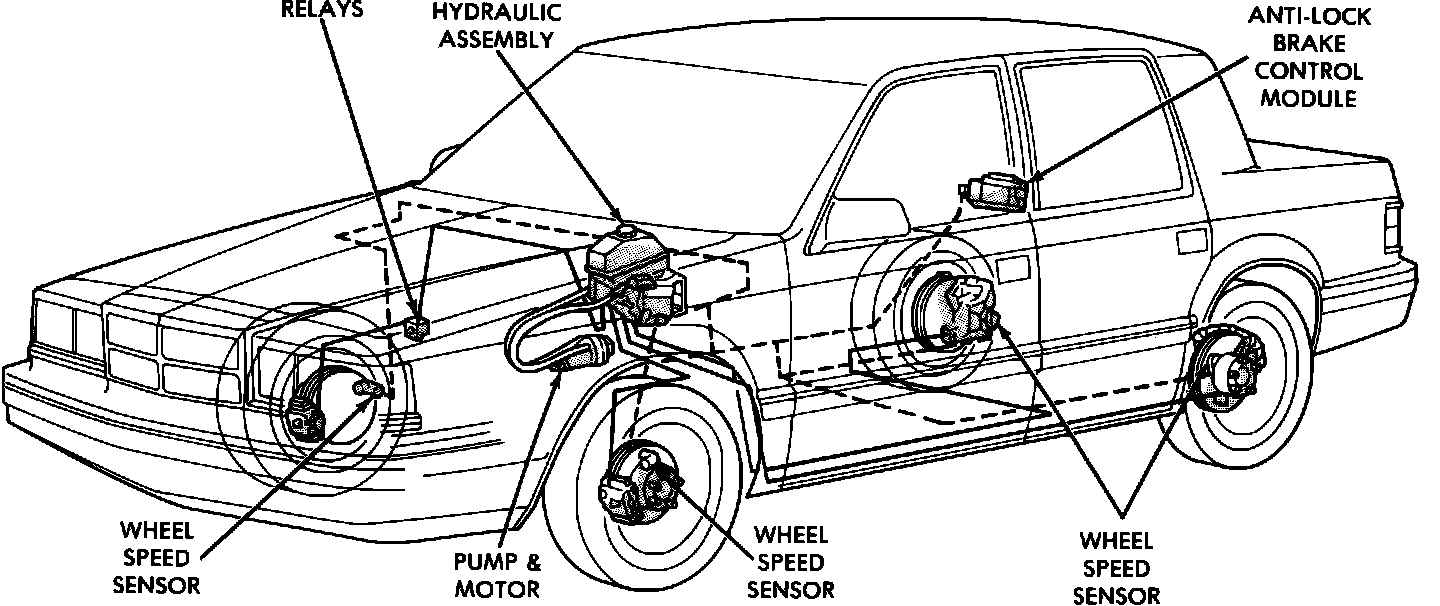

Four-wheel Anti-Lock Brake System:
