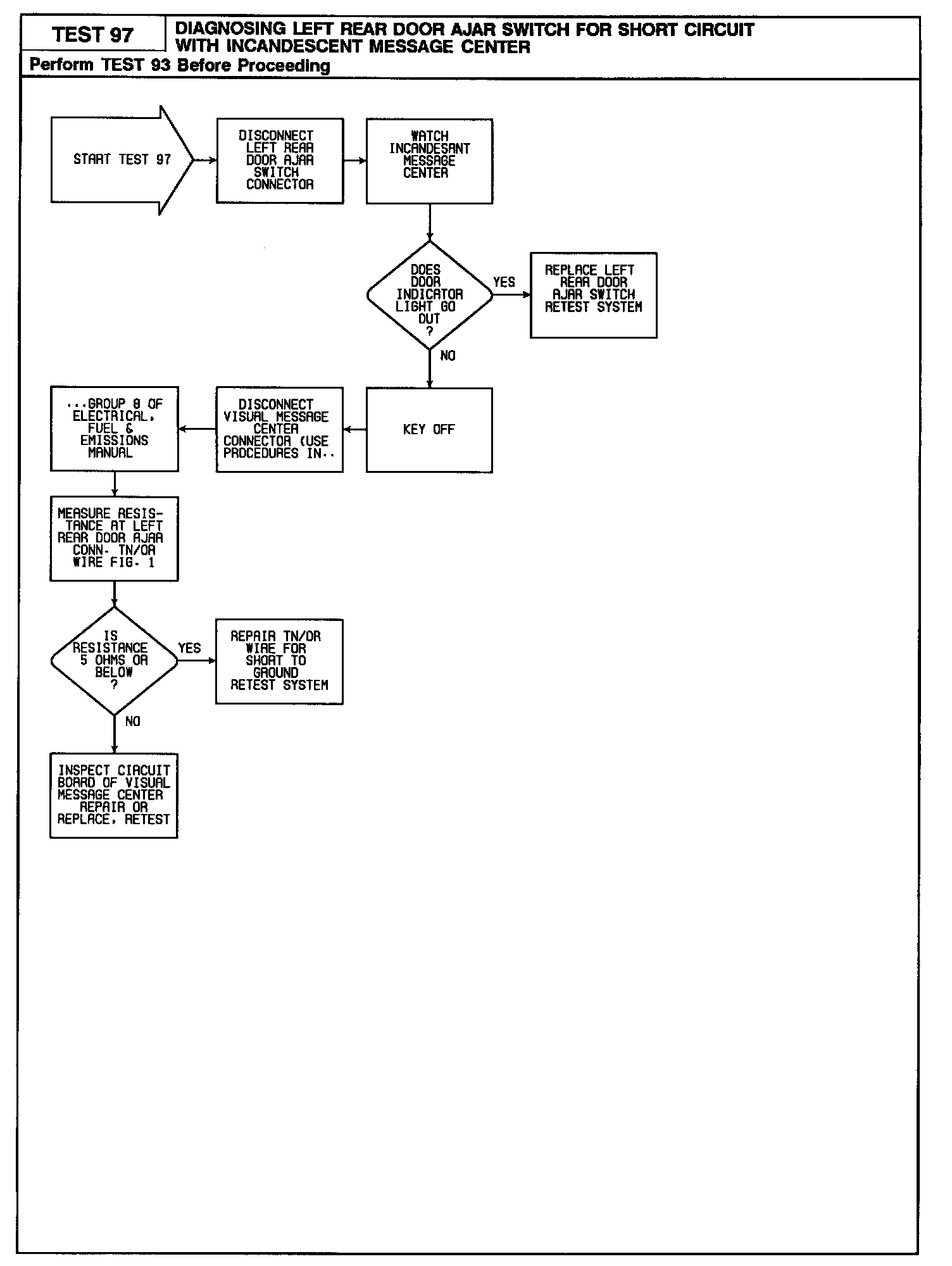

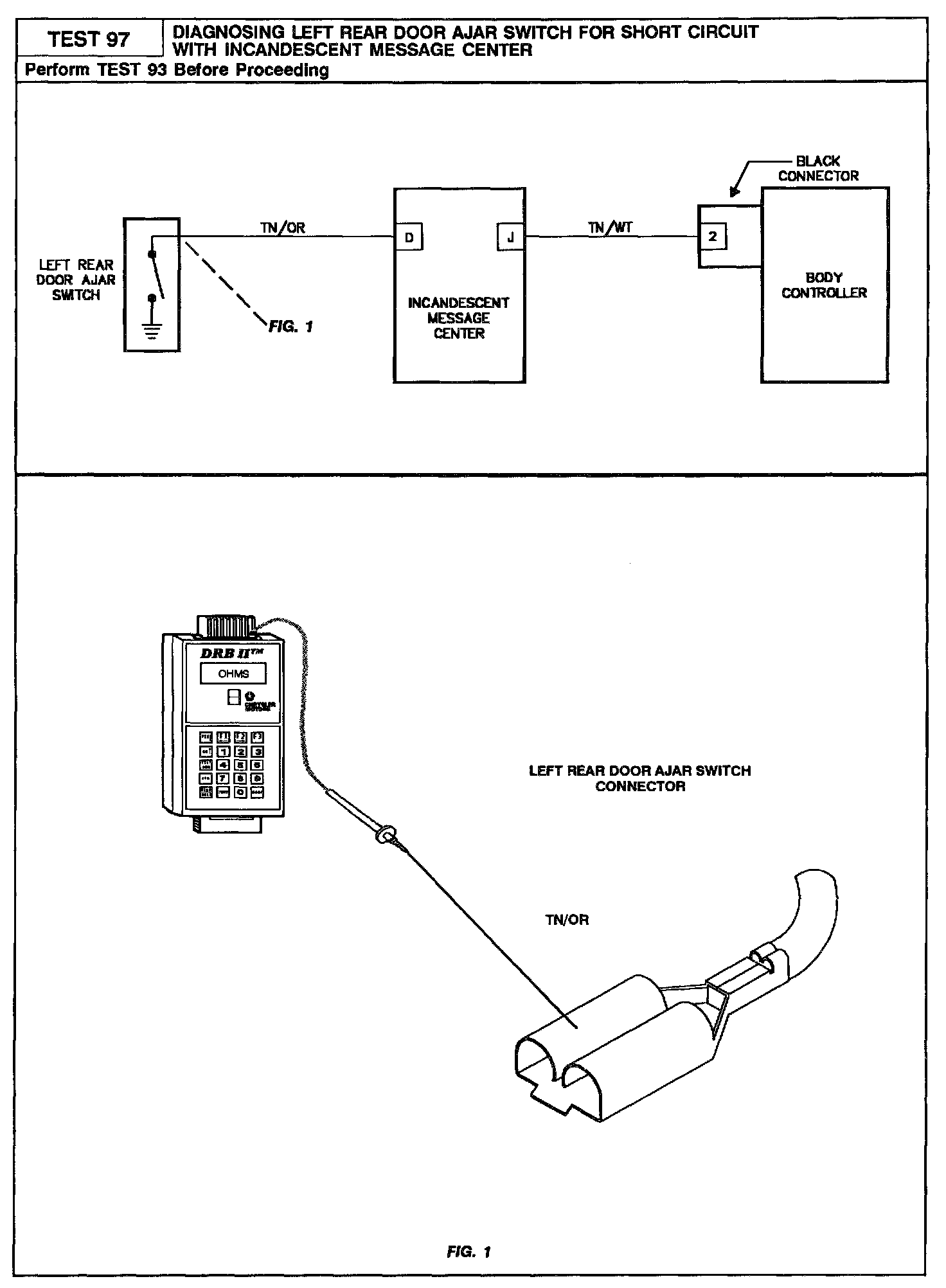

Test 97 - Diagnosing Lt Rr Door Ajar Switch For Short With IMC
Test 97 - Diagnosing Lt Rr Door Ajar Switch For Short With IMC
