Rear Door Panel: Service and Repair

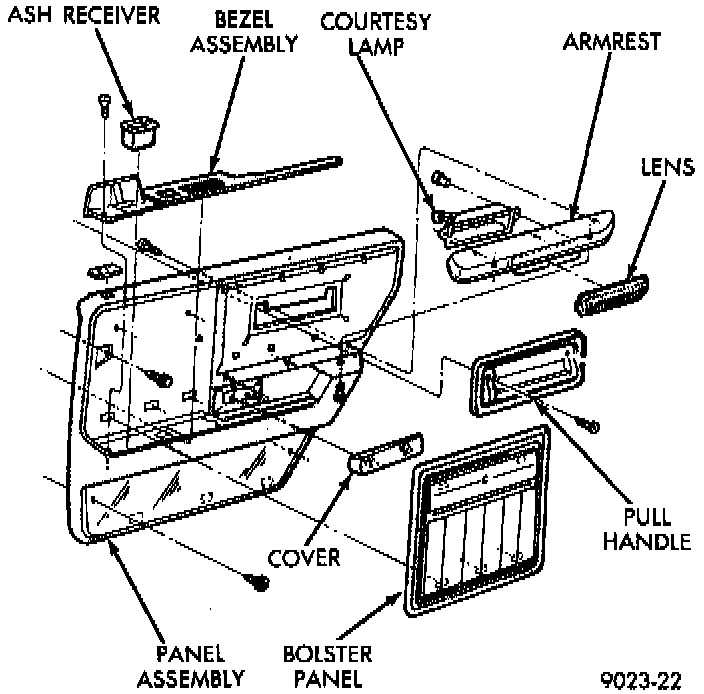

Rear Door Trim Panel:

1. Lift pull handle, remove screws.
2. Remove ash receiver.
3. Remove cover assembly.
4. Remove courtesy lamp lens.
5. Remove screw from window switch bezel.
6. Disconnect power window wiring.
7. Remove screws from lower panel assembly.
8. Remove trim panel assembly.
9. For installation reverse above procedure.
