FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Verification Tests
>>
Verification Test VER-3
Verification Test VER-3

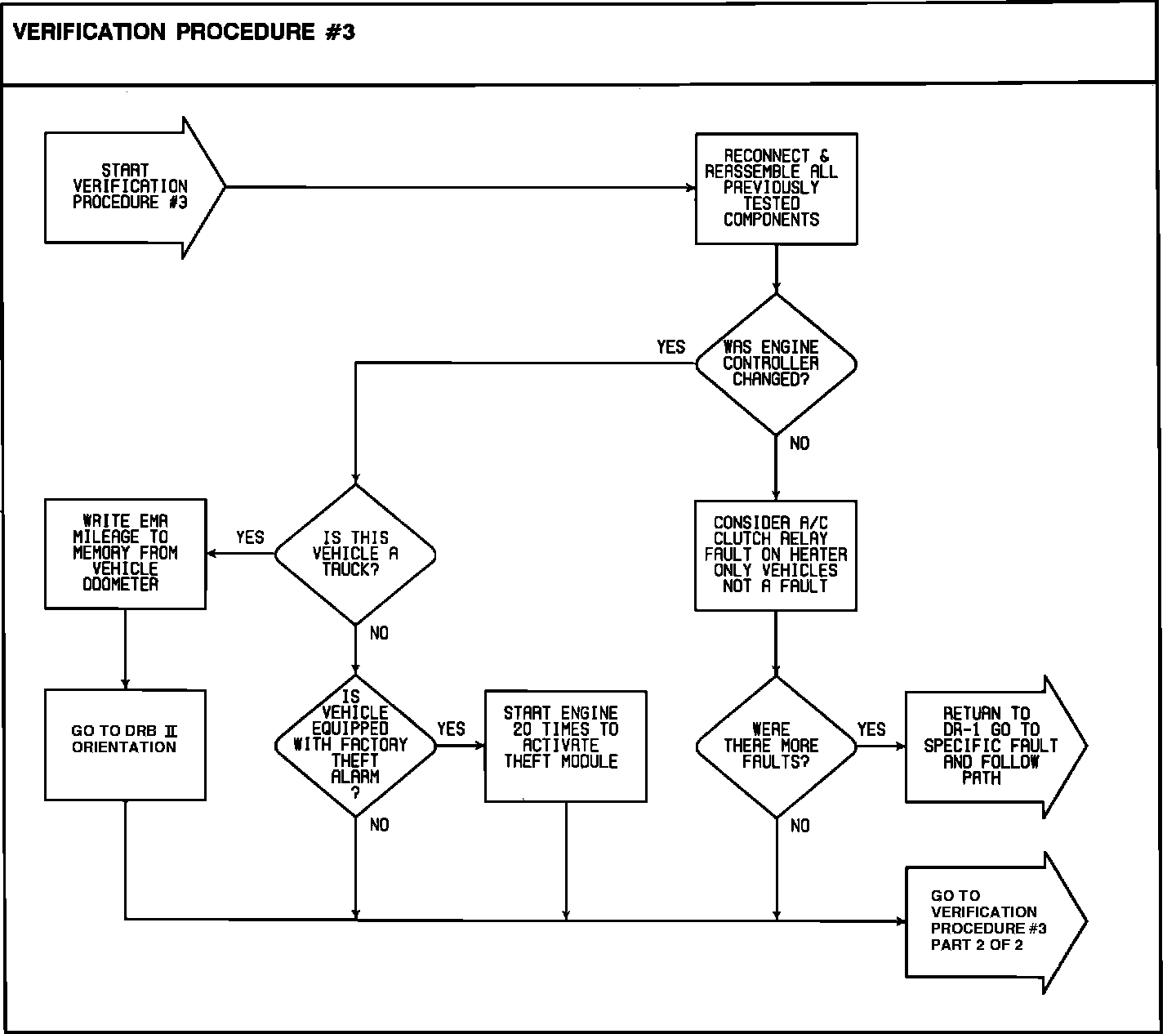

Verification Procedure #3 (Part 1 Of 2):

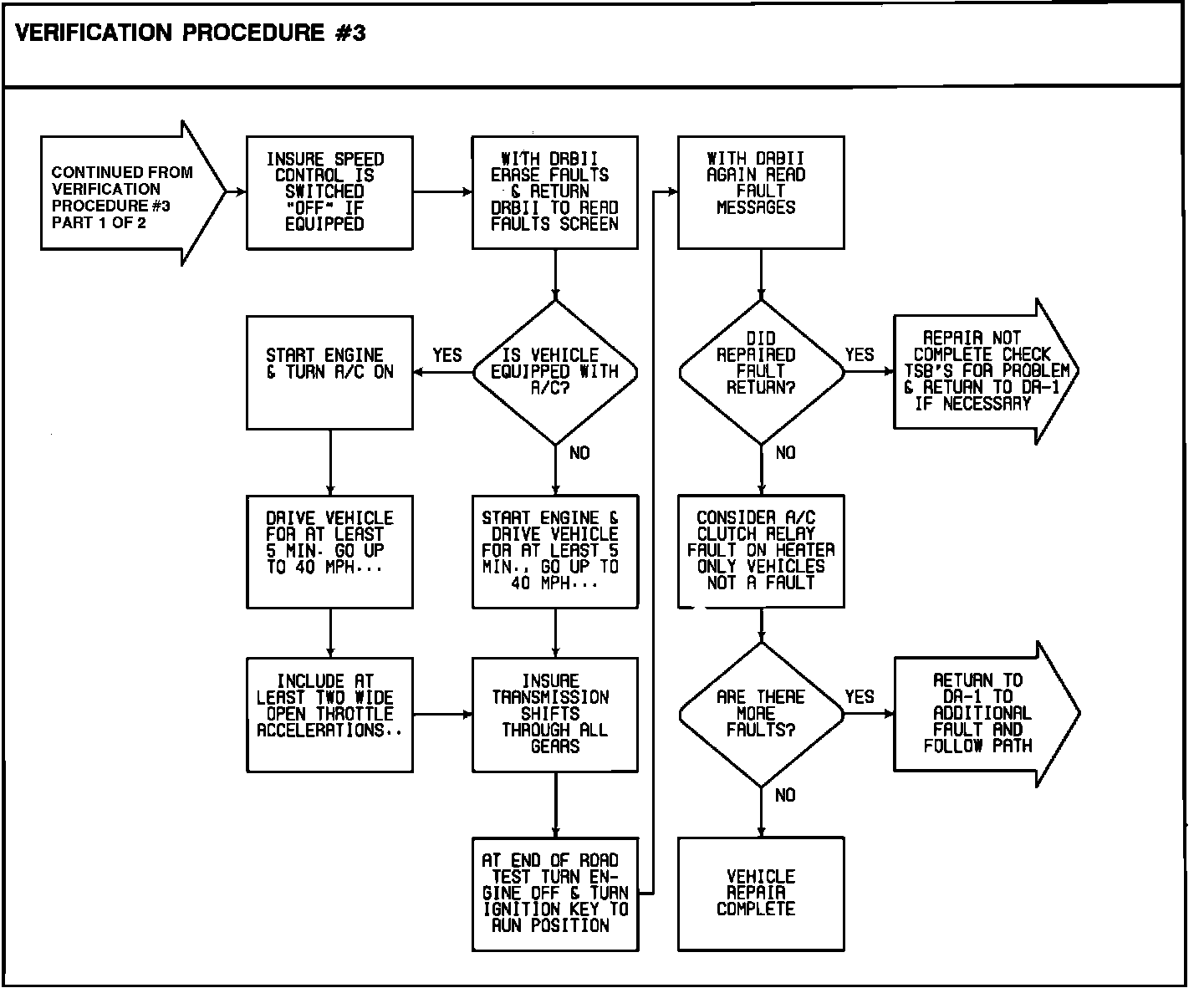

Verification Procedure #3 (Part 2 Of 2):

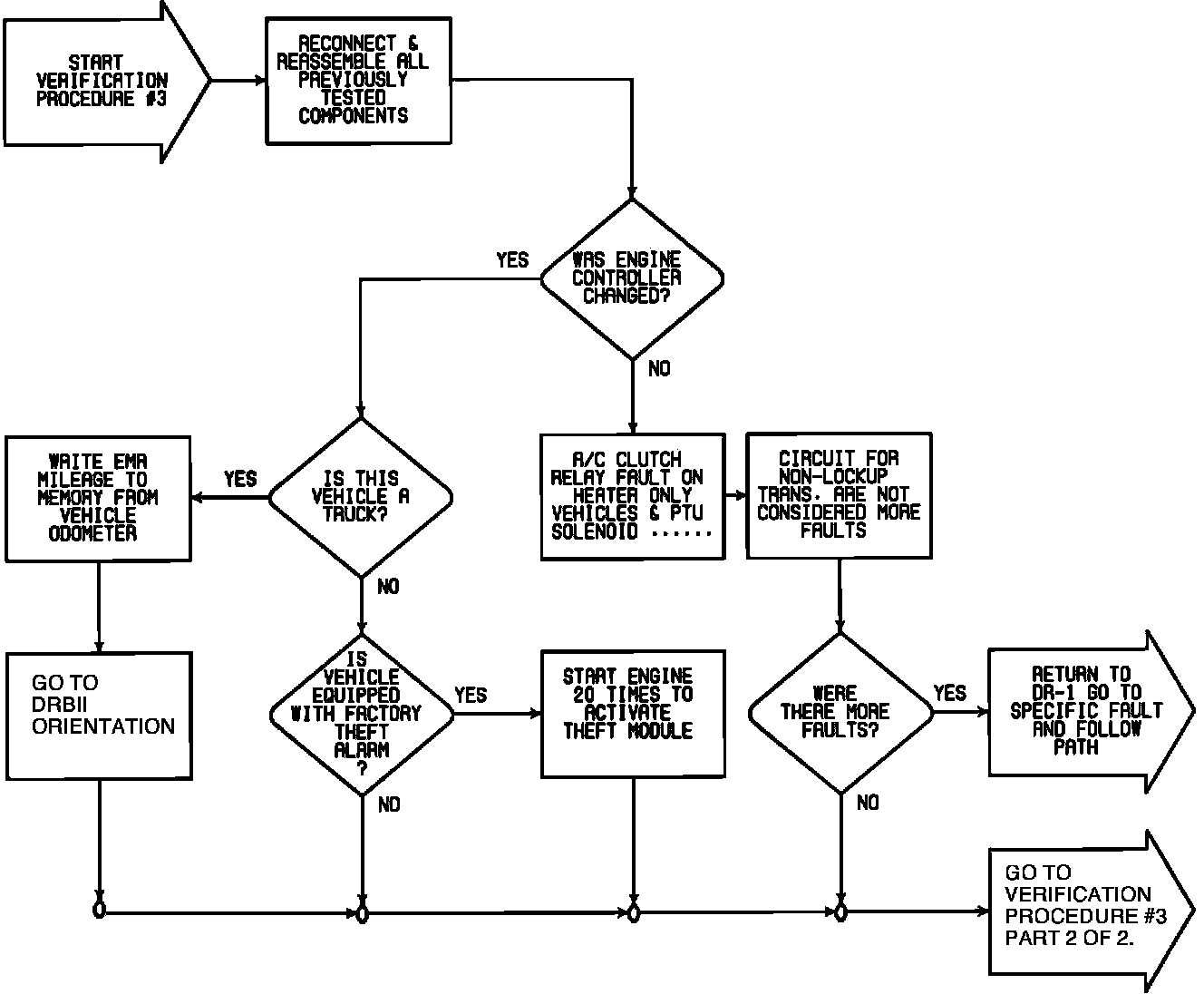

Verification Procedure #3 (Part 1 Of 2):
Verification Procedure #3 (Part 2 Of 2):
