Verification Test VER-1E - Pressure Transducer 5 Volt Circuit - ABS
Verification Test VER-1E - Pressure Transducer 5 Volt Circuit - ABS

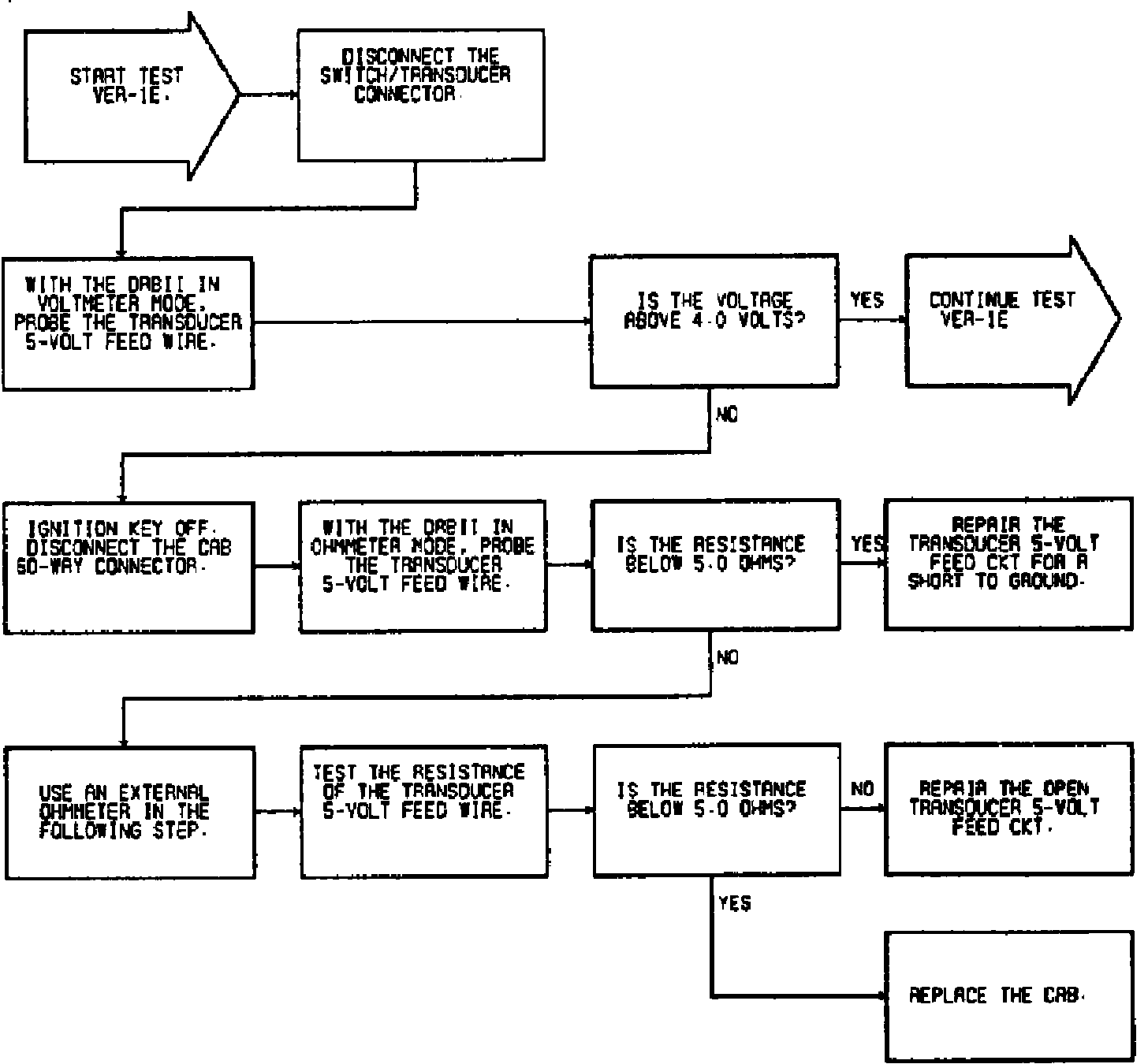

Fig. 160 Test VER-1E Part 1 Of 2:

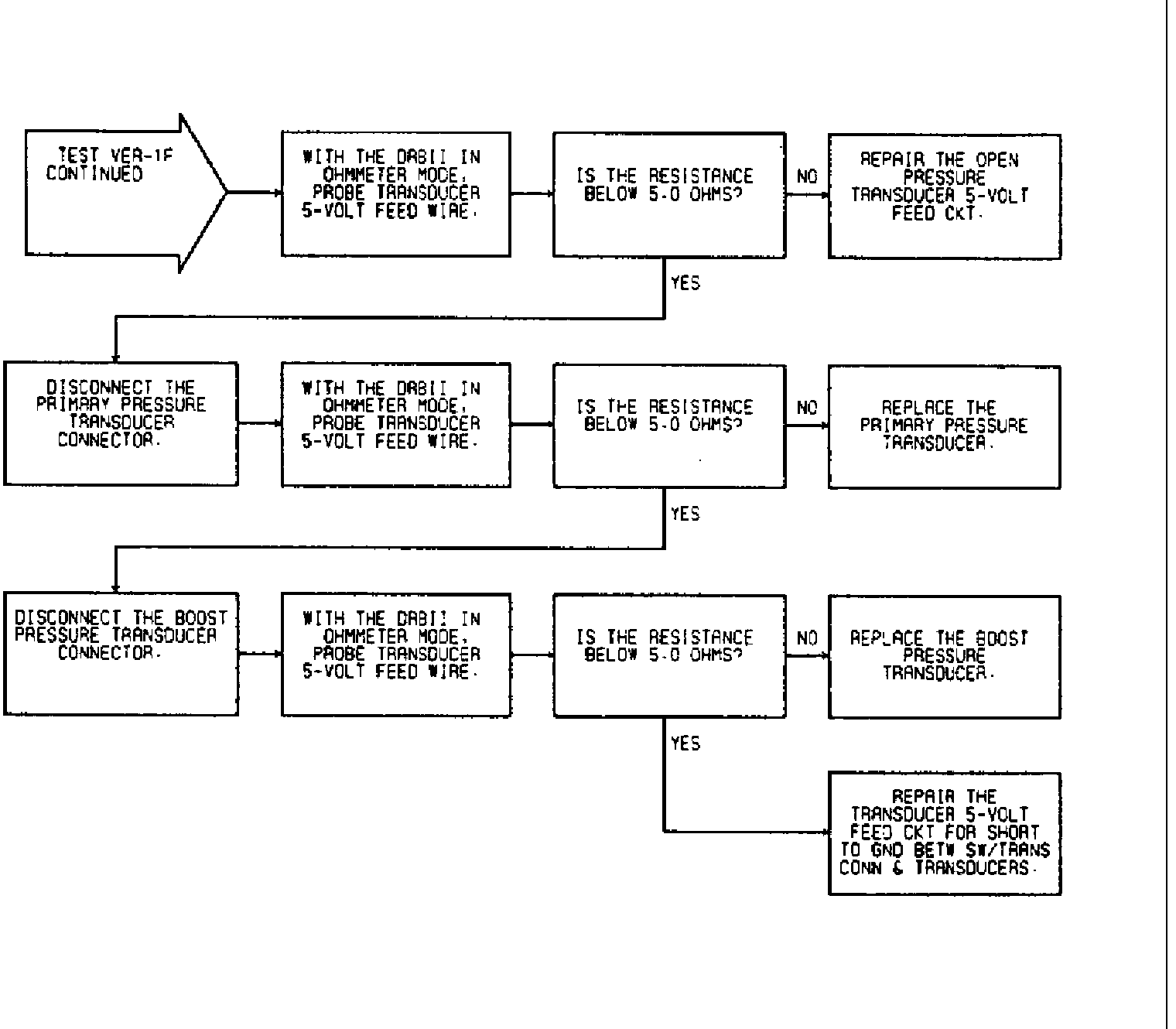

Fig. 160 Test VER-1E Part 2 Of 2:
