Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Theft Alarm Module >> Test 62 - Veh Theft Alarm Module Psngr Door Ajar Switch Test

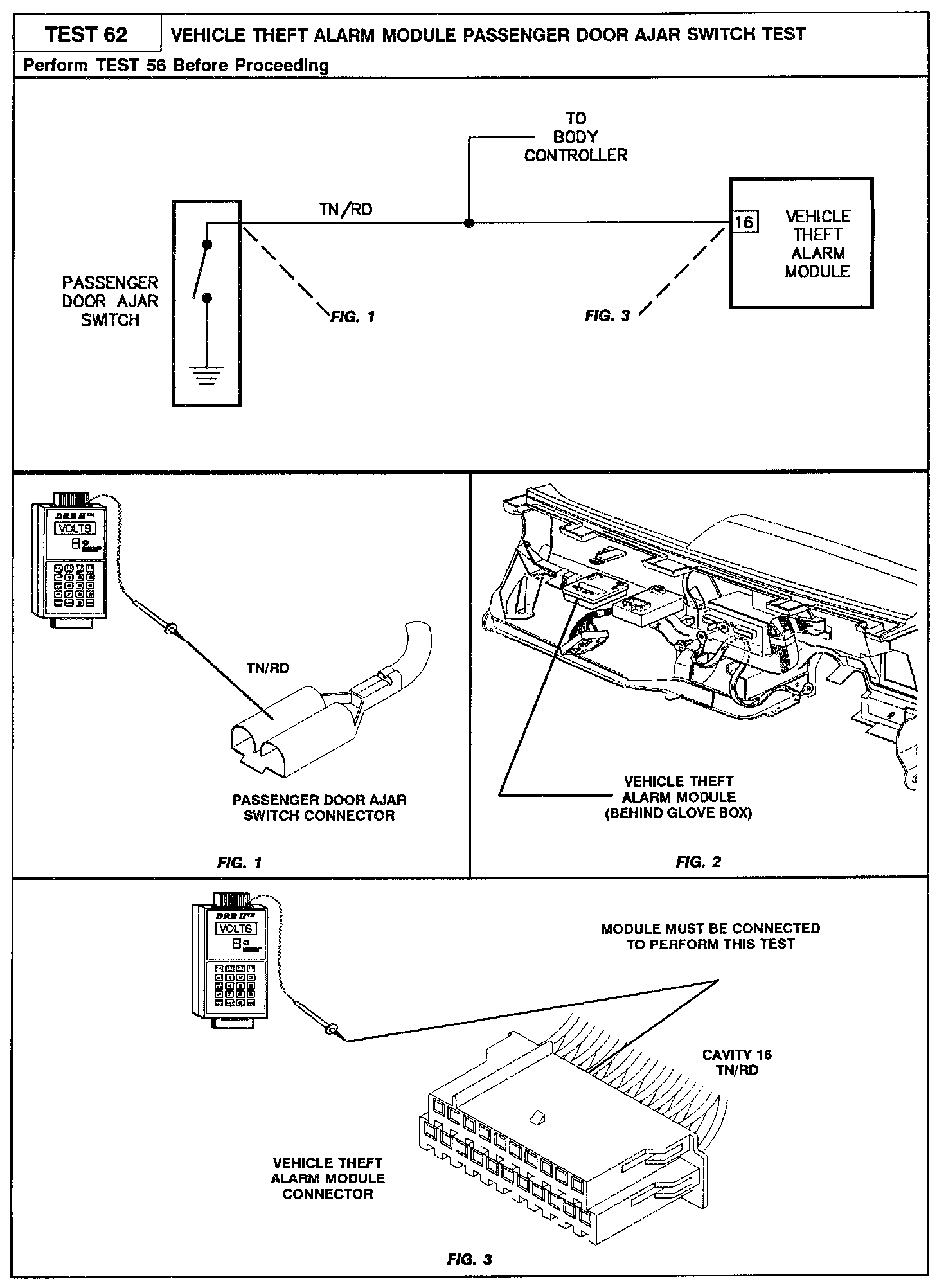

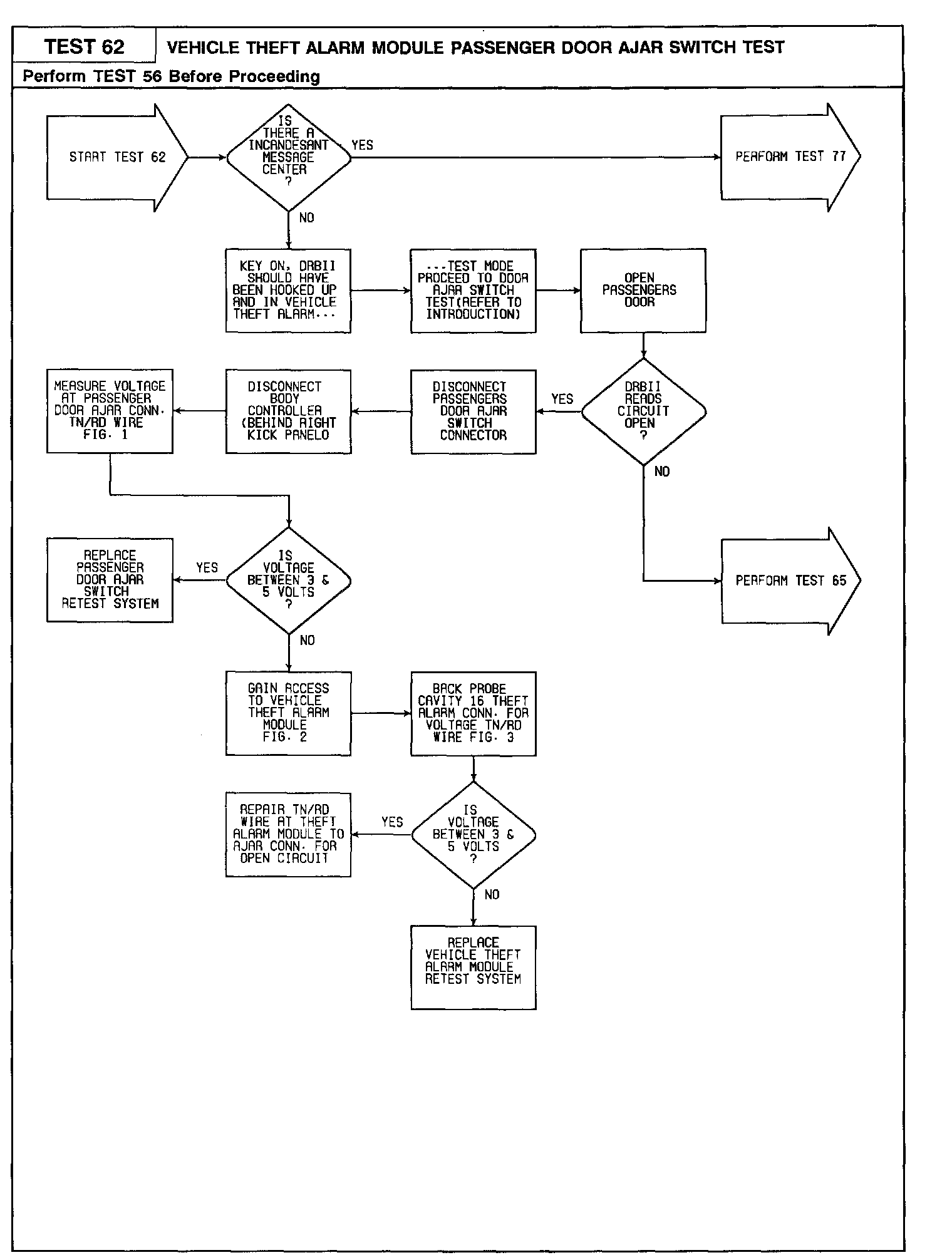

Test 62 - Veh Theft Alarm Module Psngr Door Ajar Switch Test
