Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SP) Tests >> SP-3 Repairing Fault "Vehicle Speed Sensor"

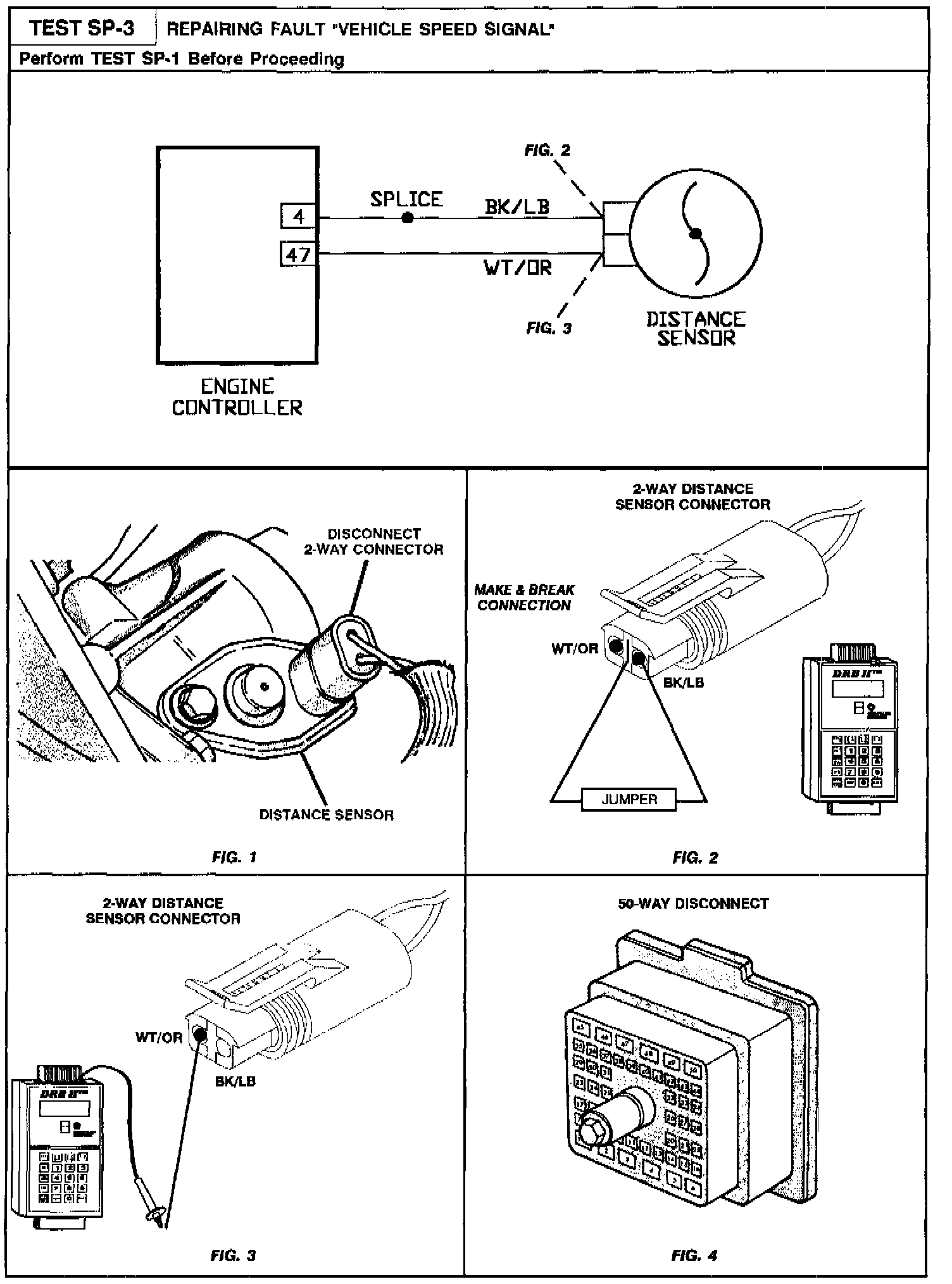

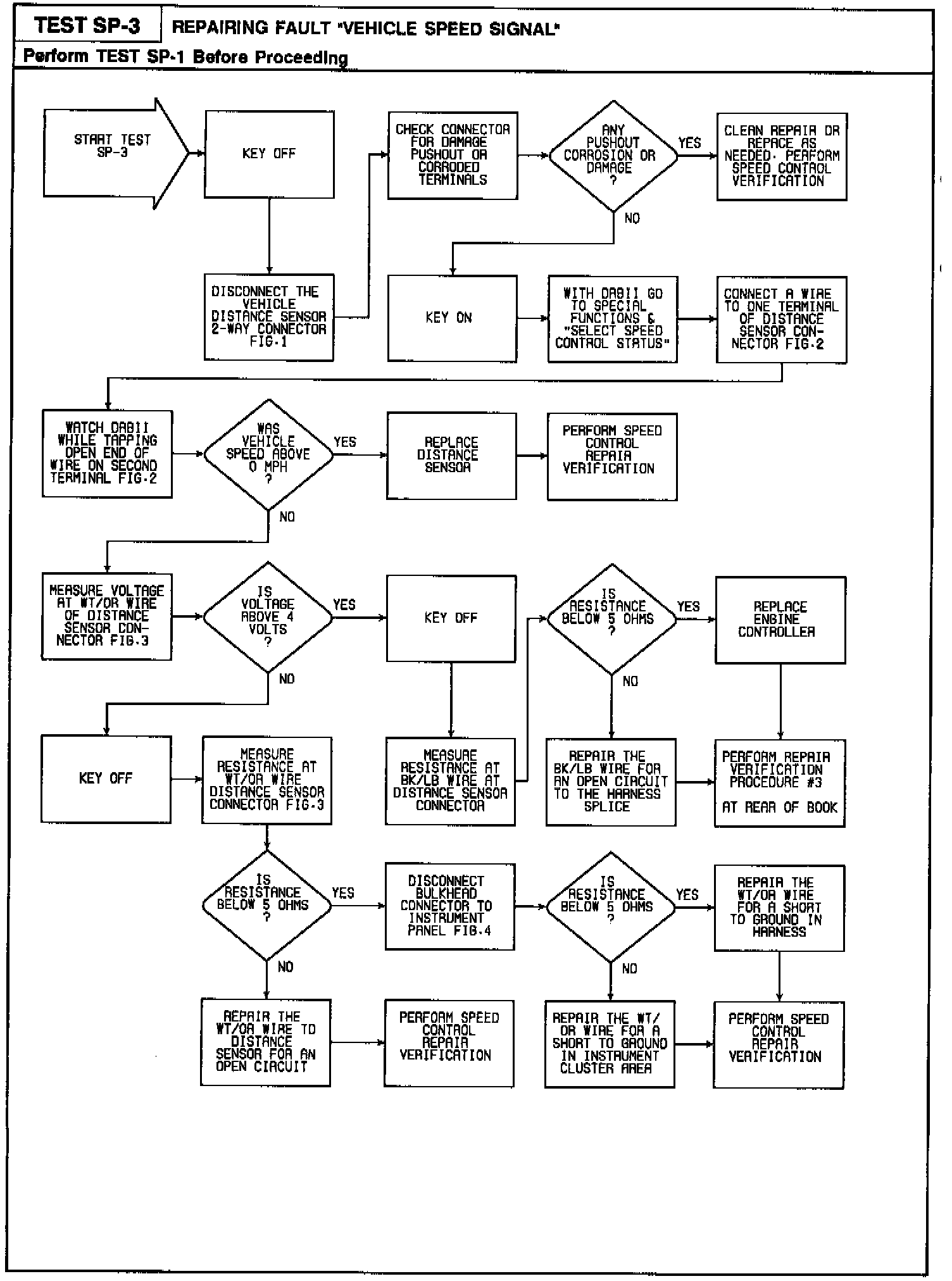

SP-3 Repairing Fault "Vehicle Speed Sensor"
