Fault Code 6

Fault Code 6:

1. Remove ATC control, then disconnect control electrical connector and measure resistance between pins 2 and 12. Resistance should measure between 2600-2800 ohms.
- If resistance is incorrect, proceed to step 2.
- If resistance is as specified, replace control module.

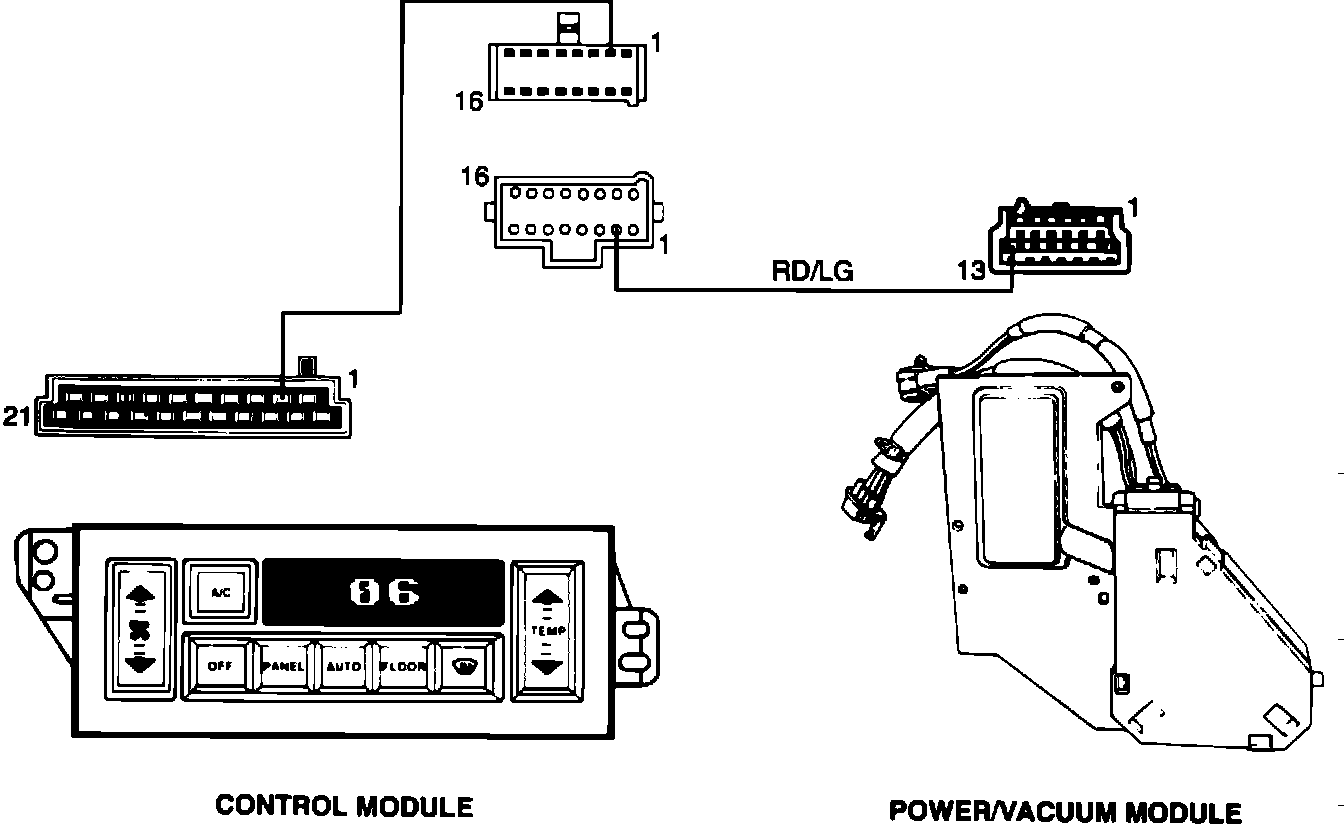

2. Disconnect PVM electrical connector and check for continuity between ATC control pin 2 and PVM pin 13.
- If continuity exists, replace PVM.
- If continuity does not exist, repair circuit and recheck system operation.
