DR-8 Repairing "Oxygen Sensor Shorted High" Fault

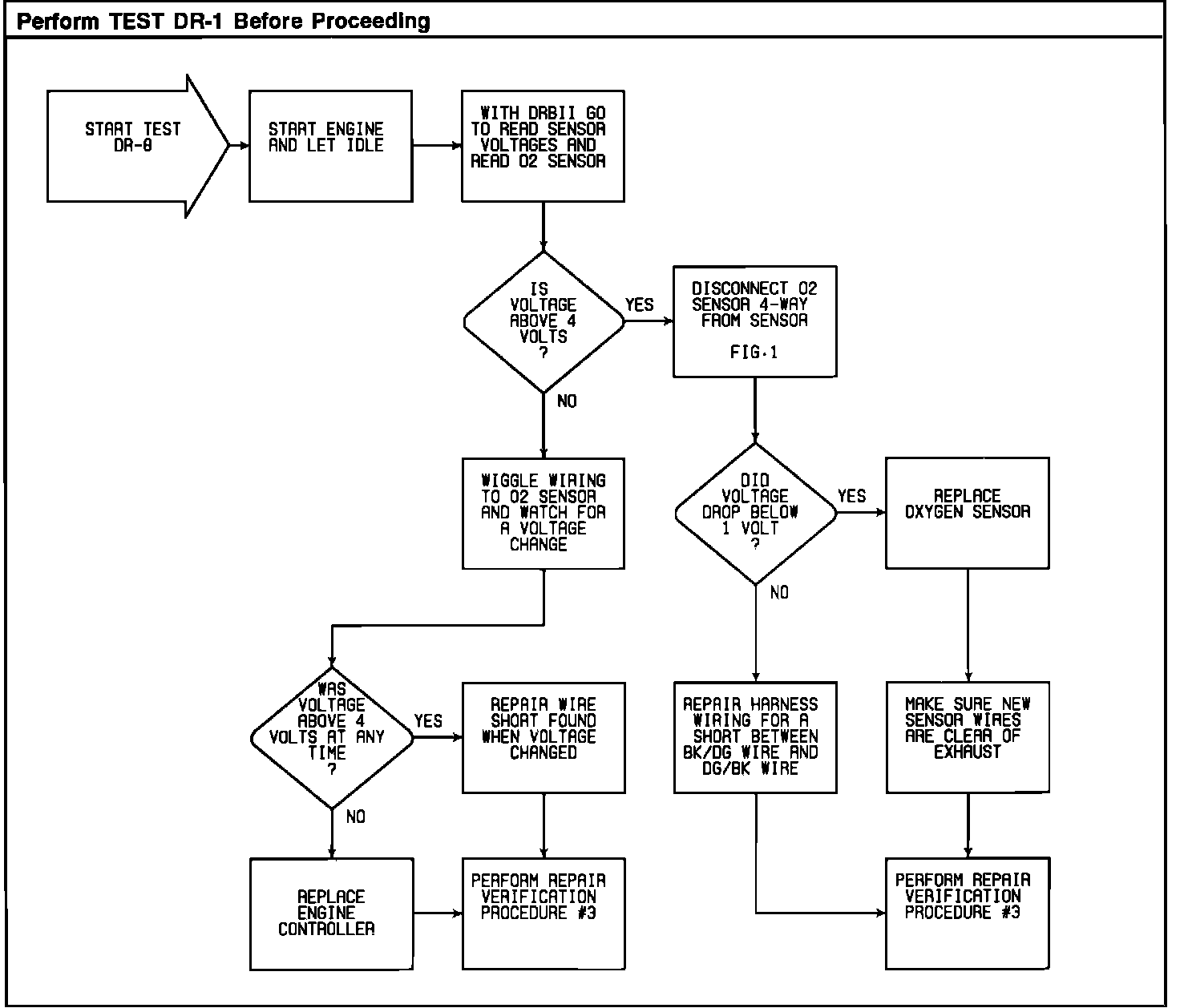

Test DR-8 - Repairing Fault "Oxygen Sensor Shorted Hi":

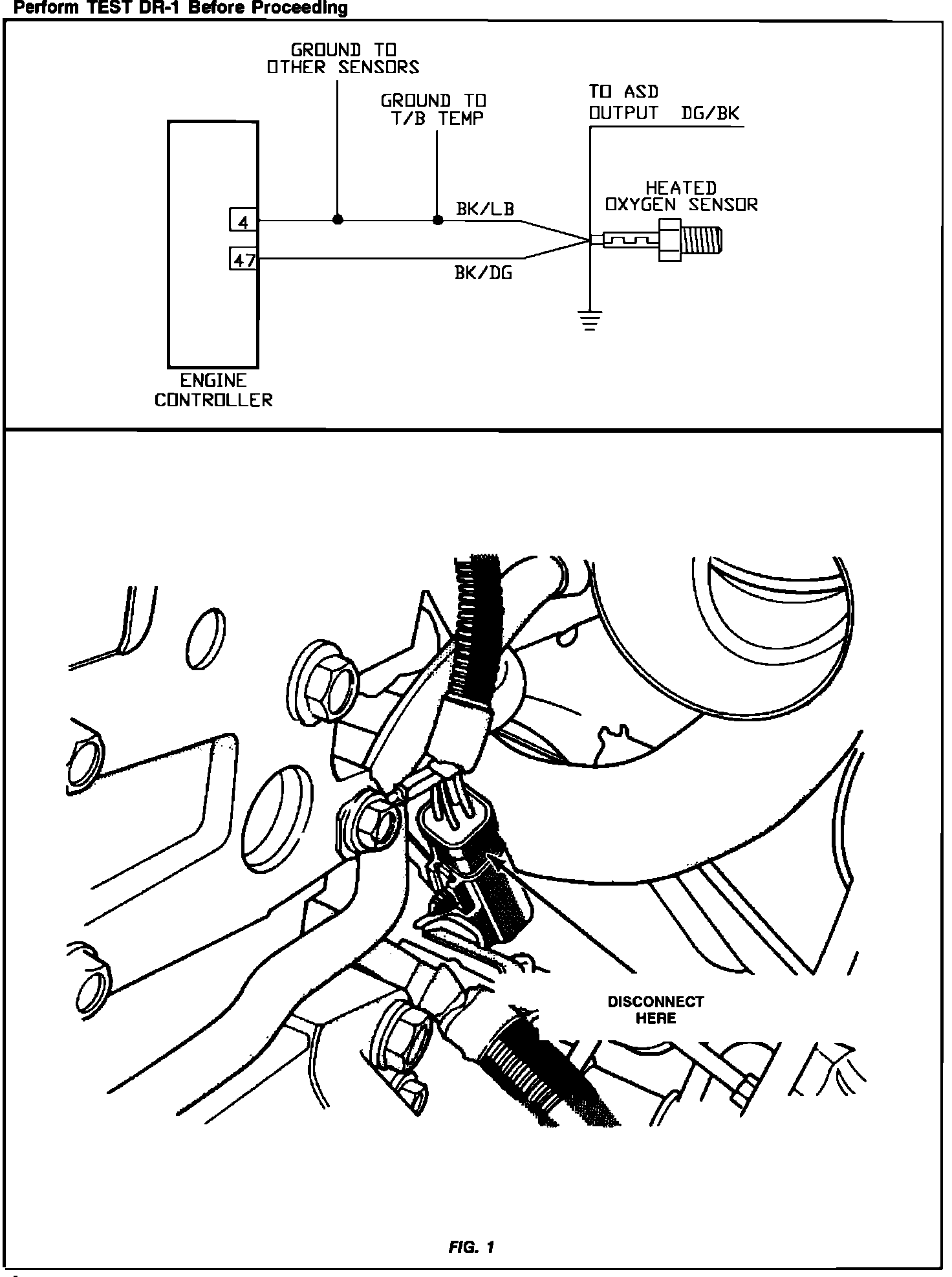

Test DR-8 - Repairing Fault "Oxygen Sensor Shorted Hi":

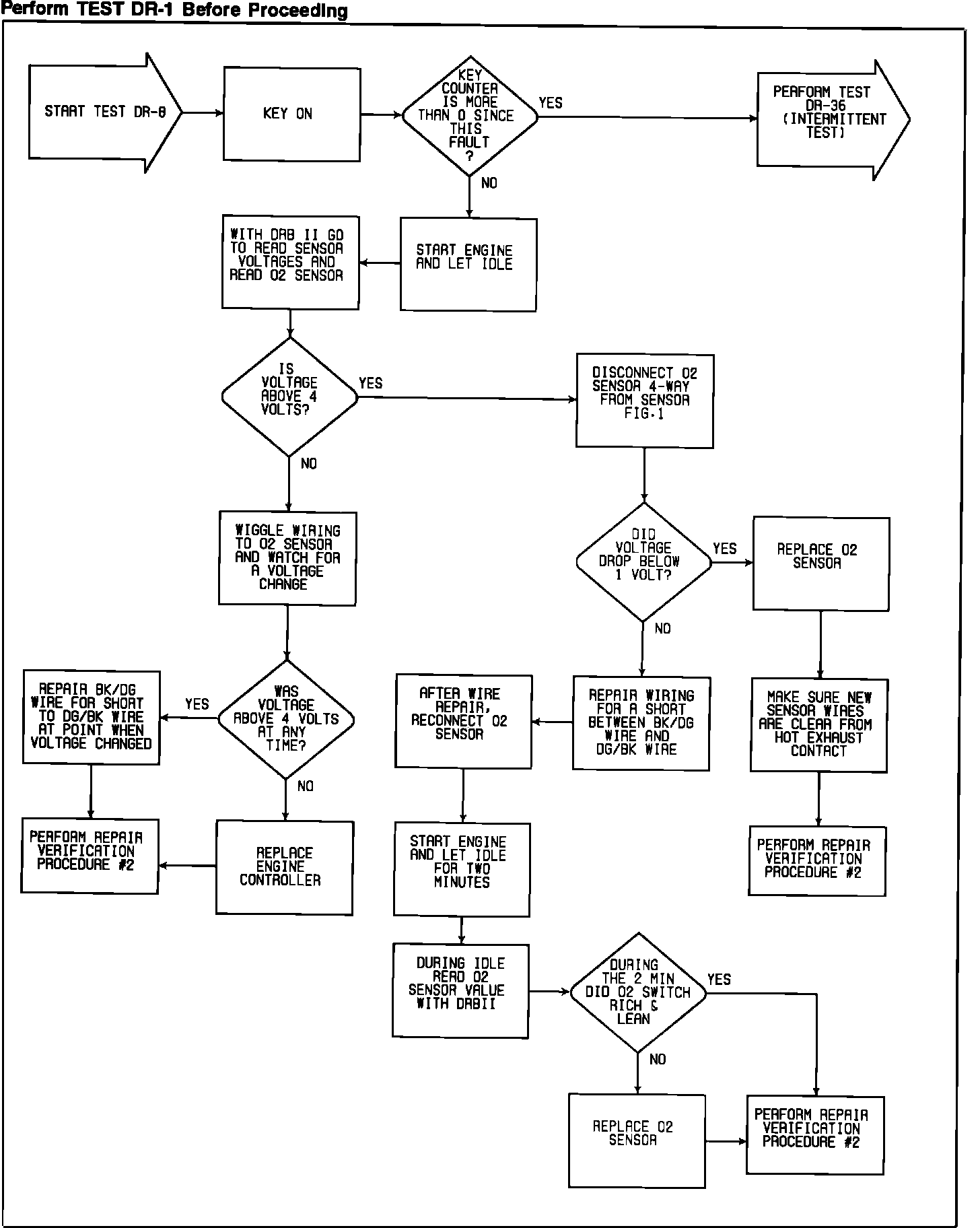

Test DR-8 - Repairing Fault "Oxygen Sensor Shorted High":

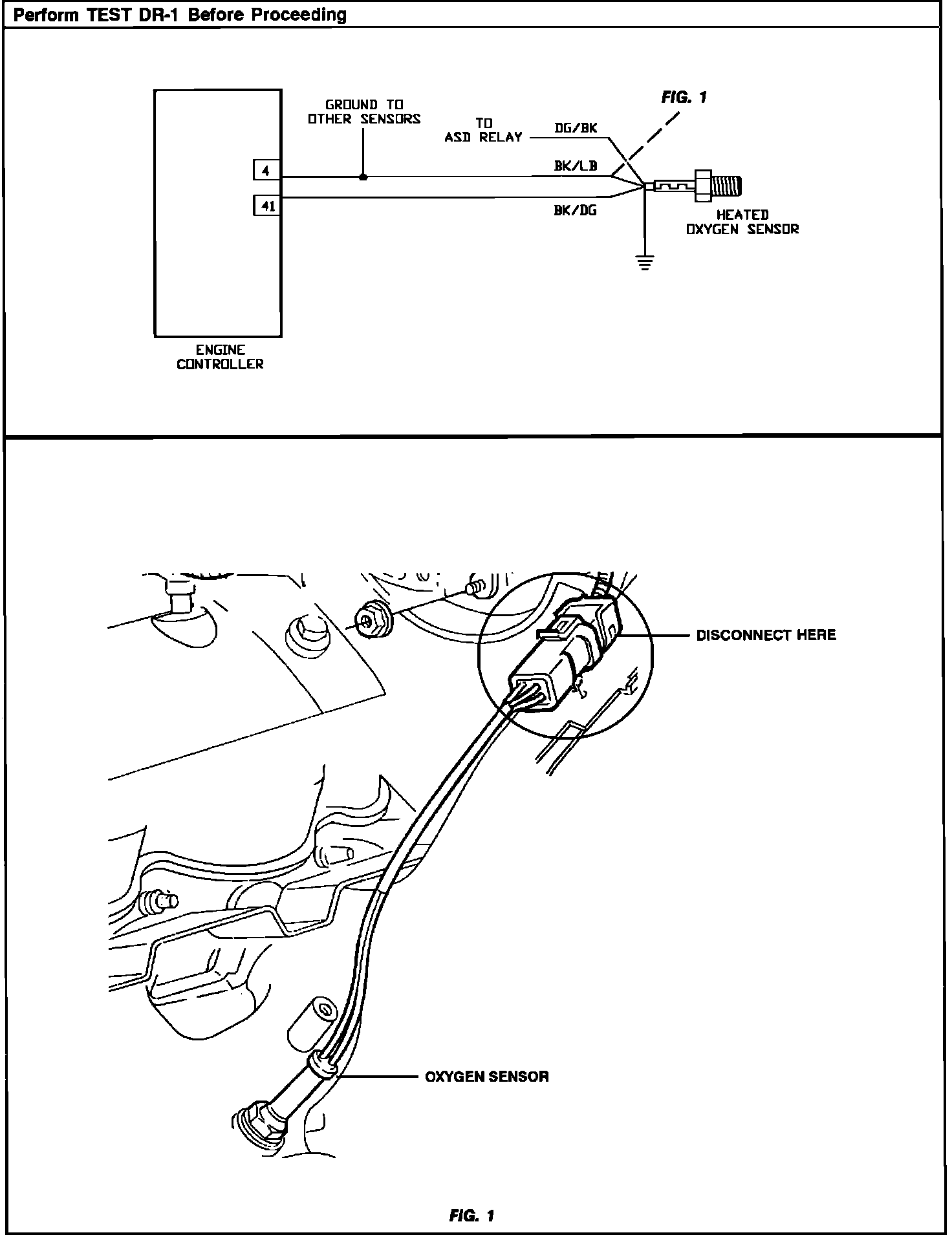

Test DR-8 - Repairing Fault "Oxygen Sensor Shorted High":
