DR-7 Repairing "Oxygen Sensor Signal" Fault

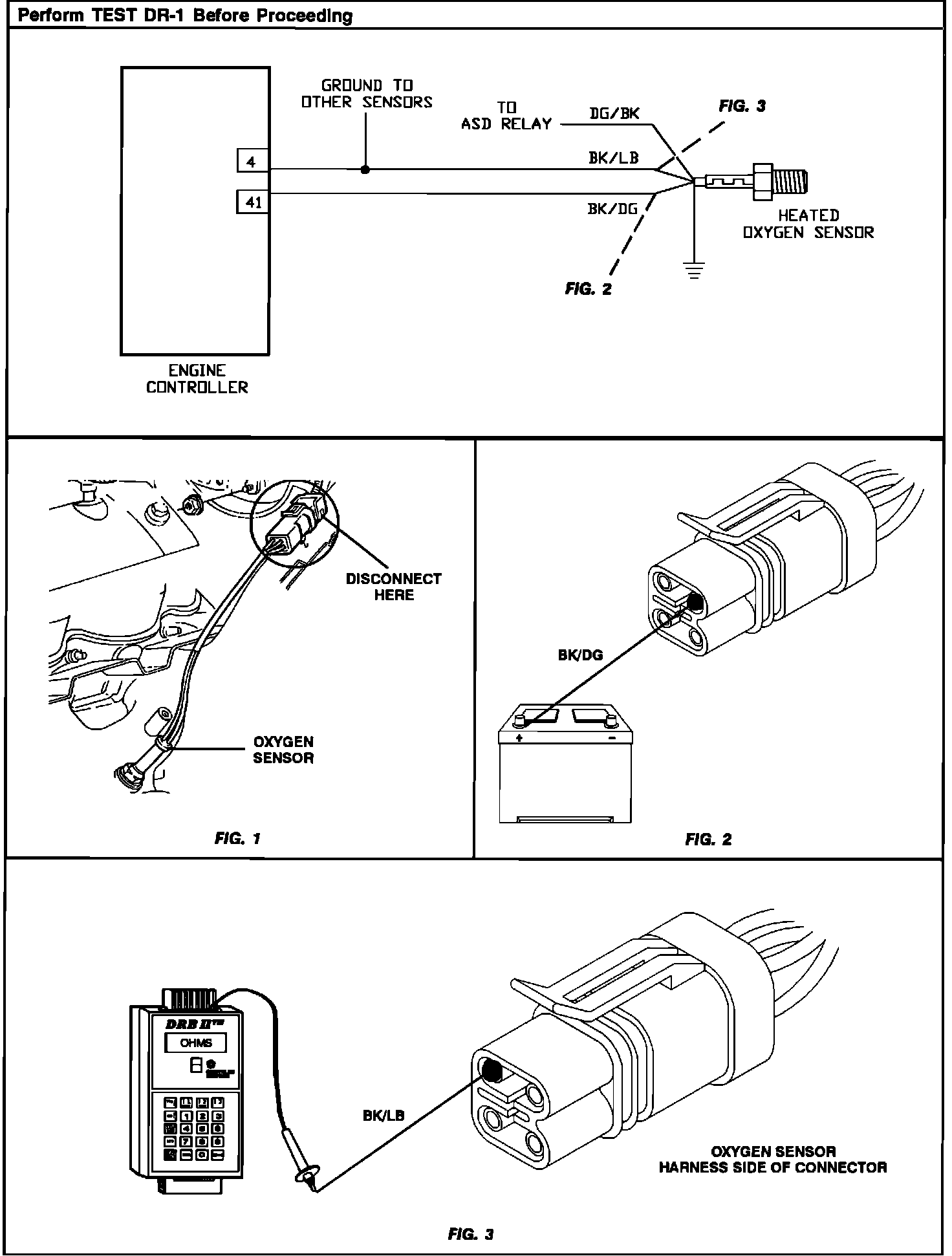

Test DR-7 - Repairing Fault "Oxygen Sensor Signal":

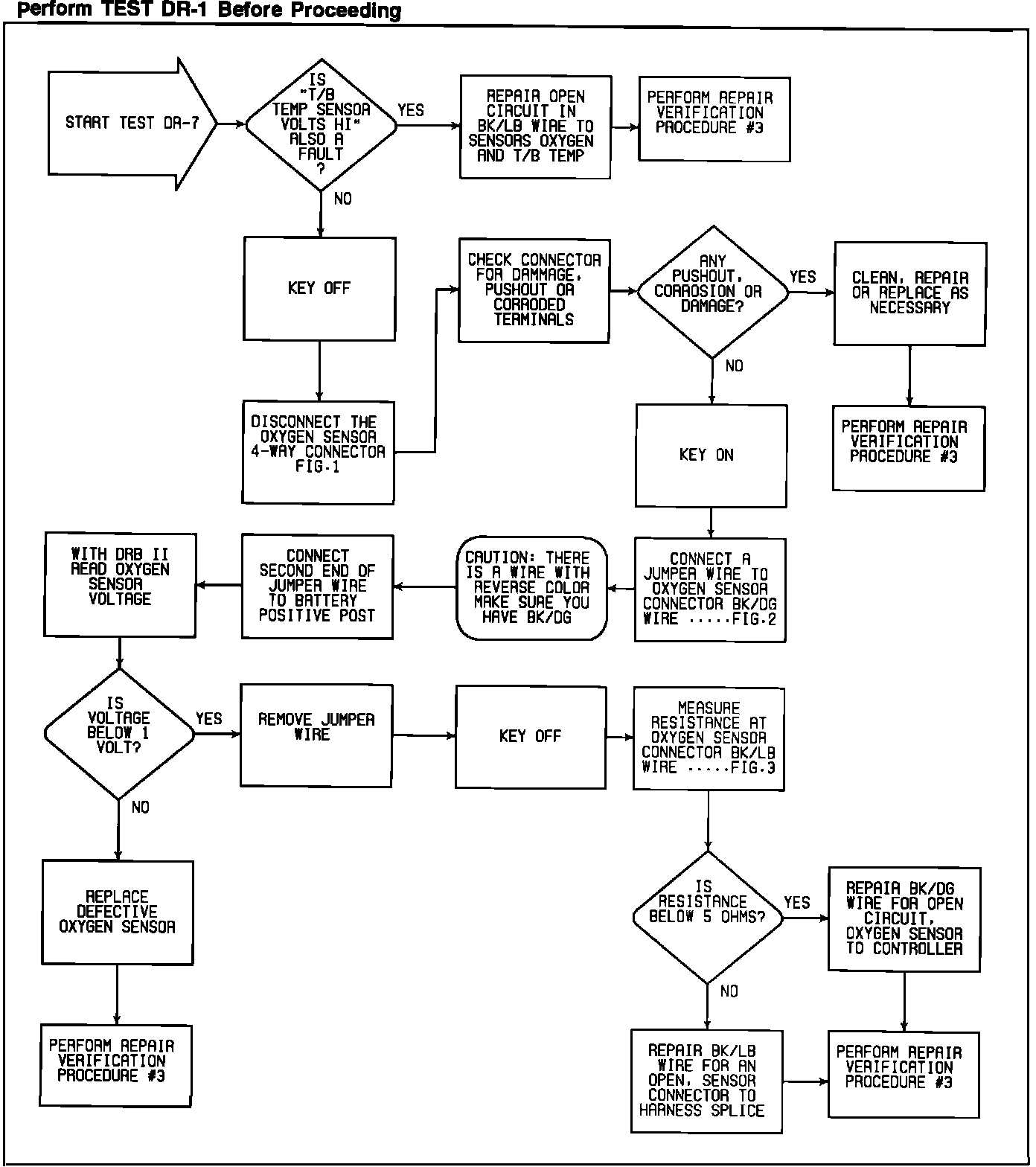

Test DR-7 - Repairing Fault "Oxygen Sensor Signal":

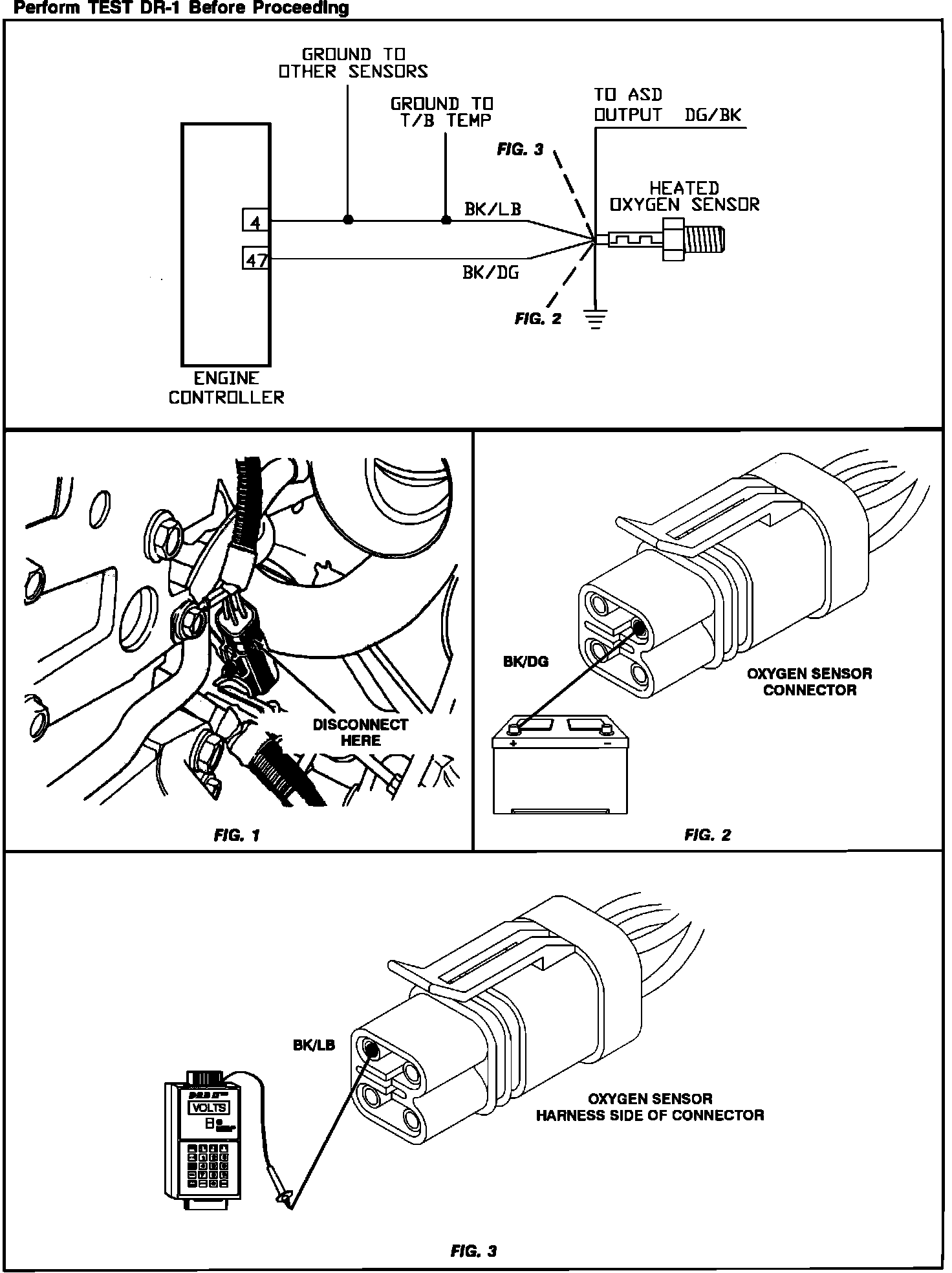

Test Dr-7 - Repairing Fault "Oxygen Sensor Signal":

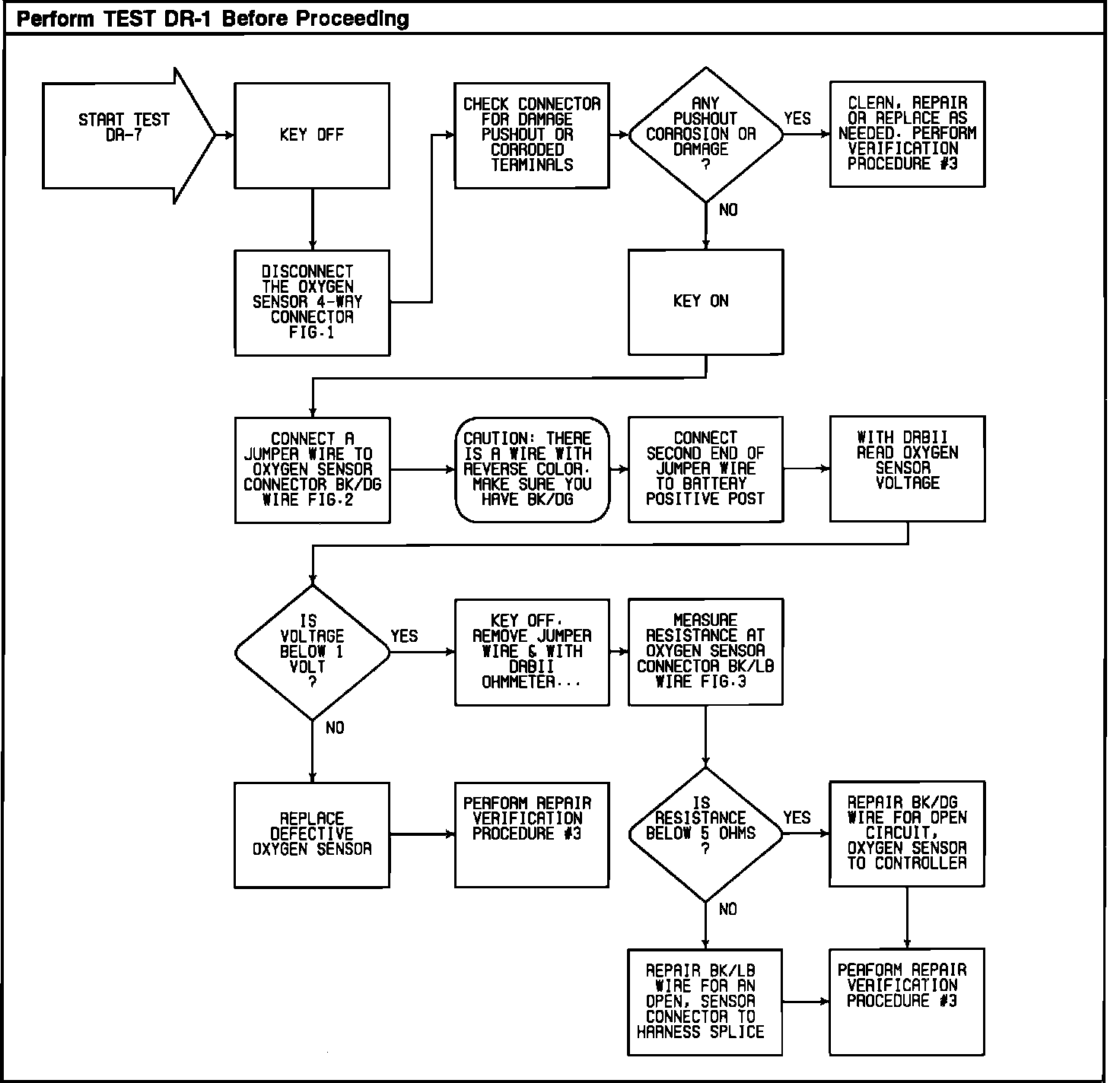

Test Dr-7 - Repairing Fault "Oxygen Sensor Signal":
