DR-7 Repairing "Oxygen Sensor Shorted High" Fault
DR-7 Repairing "Oxygen Sensor Shorted High" Fault

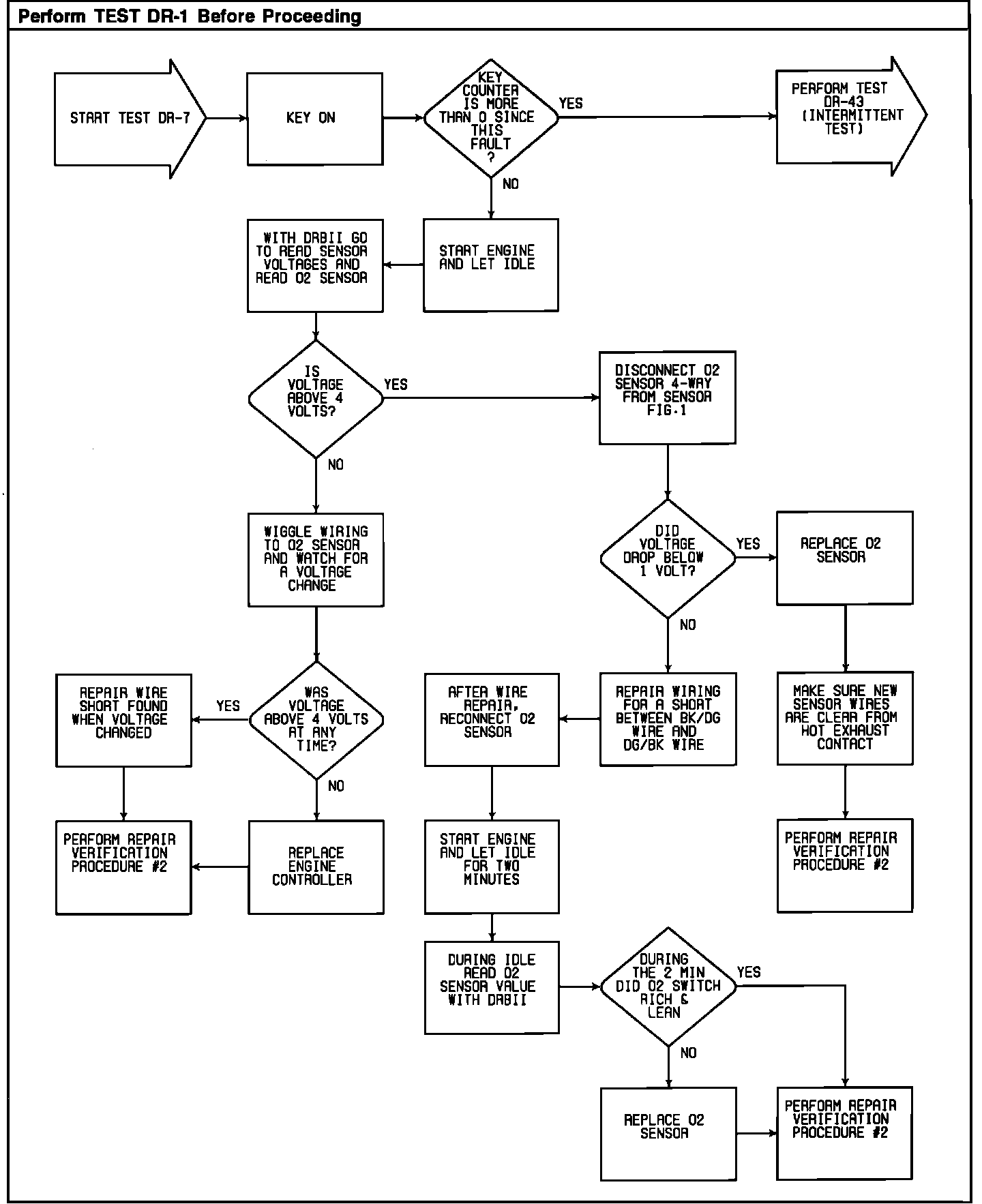

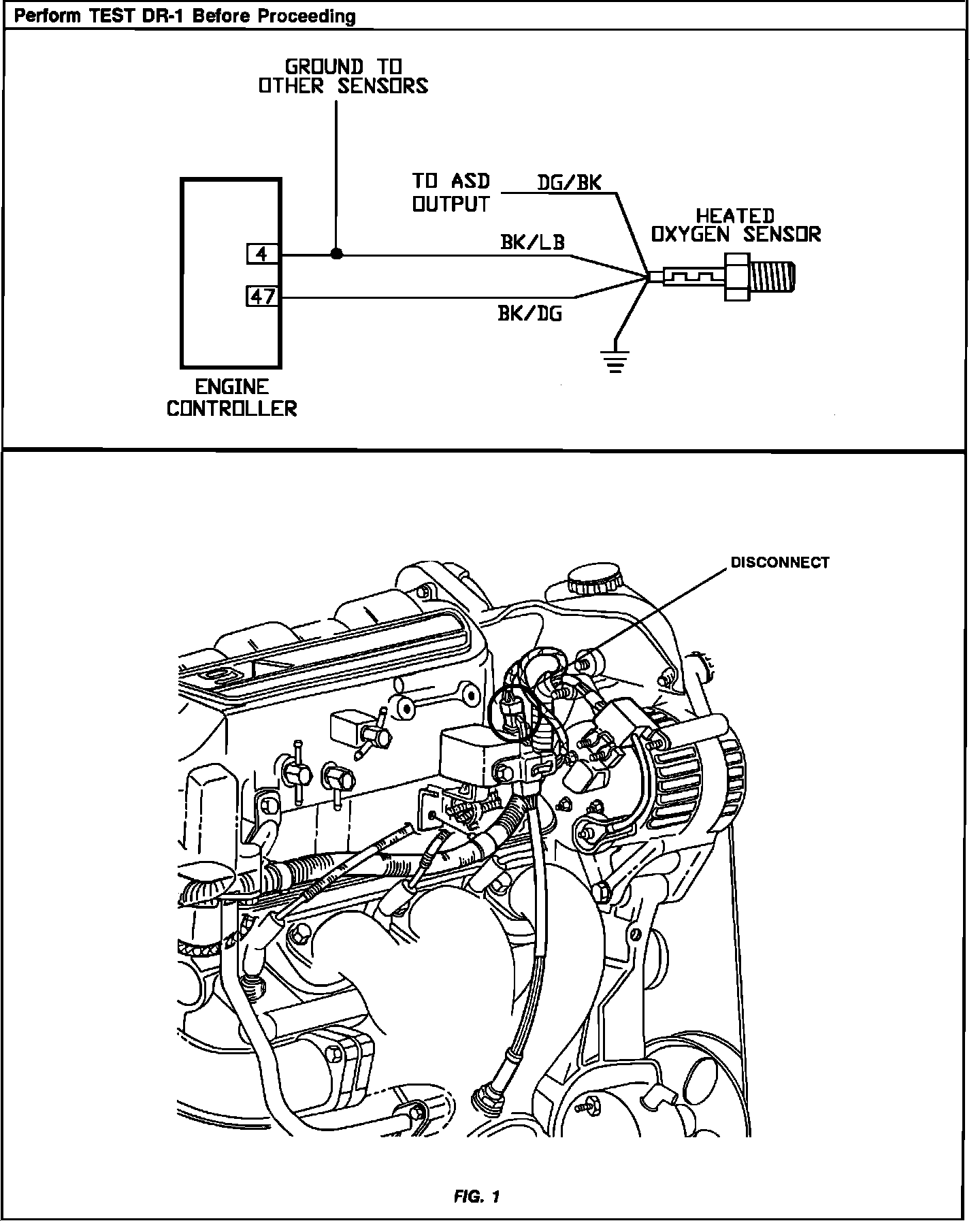

Test DR-7 - Repairing Fault "Oxygen Sensor Shorted High":
Test DR-7 - Repairing Fault "Oxygen Sensor Shorted High":
